Series 2 Mini Brush Cutter, Closed Front
Closed-front Series 2 mini brush cutter line with 36-inch, 42-inch, and 50-inch widths, direct drive, and 4-inch cutting capacity for compact land-clearing work.
Product Overview

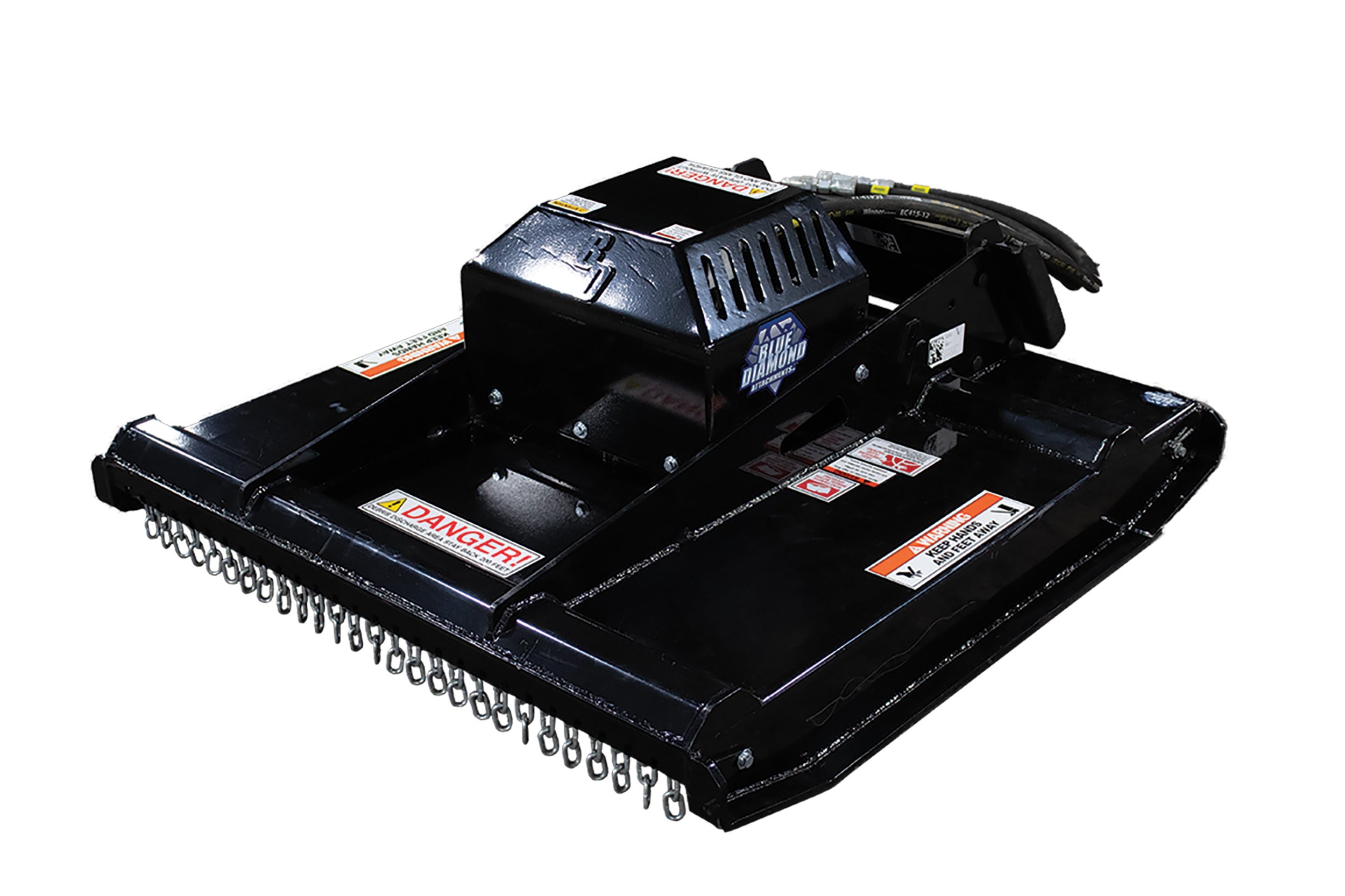

The Blue Diamond Series 2 Mini Brush Cutter, Closed Front is built for mini skid steer operators who need controlled brush cutting in tighter areas. Confirmed source features include a direct-drive layout, three double-edged blades, bi-directional blade rotation, and closed-front deck configurations in 36-inch, 42-inch, and 50-inch widths.
Key Features
- Closed-front deck configuration
- 36-inch, 42-inch, and 50-inch Series 2 models
- 4-inch cutting capacity
- Direct drive with feature-sheet lifetime spindle warranty
- Three double-edged blades with bi-directional rotation
- Maximum operating pressure: 3000 PSI
Configuration Range
| Part No. | Configuration | Weight |
|---|---|---|
| 303716-25 | 36 in. / 80cc / Closed Front / Mini Universal | 500 lbs no mount |
| 303722-25 | 42 in. / 80cc / Closed Front / Mini Universal | 600 lbs no mount |
| 303731-25 | 50 in. / 80cc / Closed Front / Mini Universal | 800 lbs no mount |
Machine Compatibility
This draft is currently built around Mini Universal mount configurations for mini skid steer applications. Blue Diamond also lists Bobcat MT and Avant family mount availability in the source documents. Hydraulic flow needs confirmation by selected width before publishing because the feature sheet and manual show different closed-front flow ranges.
Additional Specifications
| Cutting Capacity | 4 in. |
| Blade Setup | 3 blades, double-edged, bi-directional |
| Drive Type | Direct Drive |
| Cutting Height | 2 in. |
| Overall Height | 21 in. |
| Maximum Pressure | 3000 PSI continuous |
Shipping & Lead Time
Ships by freight. Region Equipment currently classifies this draft as in stock, while final freight timing and destination cost should still be confirmed at quote stage.
Warranty
Blue Diamond states a twelve-month warranty for the Mini Skid Steer Series 2 Brush Cutter after delivery to the original purchaser. The feature sheet also states a lifetime warranty on the spindle, and warranty registration is requested within 30 days of purchase.
Installation & Service
Before ordering, confirm mount style, selected width, and machine hydraulic flow. Follow the Blue Diamond operation and maintenance manual for safe mounting, inspection, and operating procedures.
