Overview
The WX470 splits firewood using a compatible loader hydraulic circuit.
- Pivoting bed supports horizontal or vertical splitting.
Applications
- Forestry & Mulching

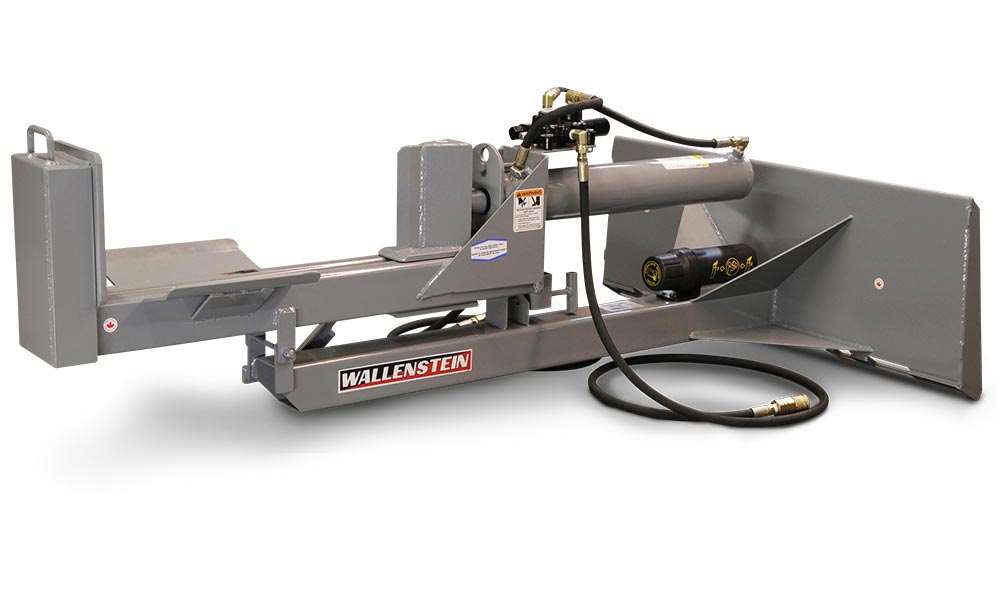

Wallenstein WX470 Skid Steer Log Splitter
Pricing available by quote.
Financing available.
Learn more
Final fitment, freight, lead time, and order details are confirmed by Region Equipment before completion.
Wallenstein · Log Splitter
Product details
Model & setup
- Model / SKU
- WX470
- Equipment type
- Skid Steer
- Mounting system
- Universal Quick Attach
Your quote includes this model. We confirm the required mounting, connections and options for your application.
Specifications
Performance & operation
- Orientation
- Horizontal / Vertical
- Split Opening
- 24" (61 cm)
- Split Force
- 20 Ton
- Average Splitter Cycle Time
- 6.62 Seconds *depends on flow from skidsteer
- Full Cycle
- 13.24 Seconds *depends on flow from skidsteer
Power & connections
- Recommended Hydraulic Flow
- 10 gpm (38 lpm)
- Mounting System
- Universal Quick Attach
Dimensions & construction
- Cylinder Diameter
- 4" (10 cm)
- Wedge Height
- 9" (23 cm)
- Total Weight
- 315 lb (143 kg)
- Dimensions (LxWxH)
- 96" x 36" x 26" (244 cm x 91 cm x 66 cm)
Included equipment
- Includes Hydraulic Hoses and Couplers
- Yes
Confirm host-machine capacity, mounting arrangement and applicable hydraulic or PTO requirements before ordering. Listed mounting options require configuration confirmation.
Manuals & documents
Configuration, installation & support
Configuration & Installation
- Manufacturer recommended flow is 10 GPM; confirm the allowable hydraulic range, pressure and couplers for the exact carrier.
- Confirm attachment weight, mount fit and the applicable operator manual before installation.
Warranty
- Manufacturer limited warranty: five years for consumer use or two years for commercial/rental use, subject to original-purchaser eligibility, maintenance and exclusions.
