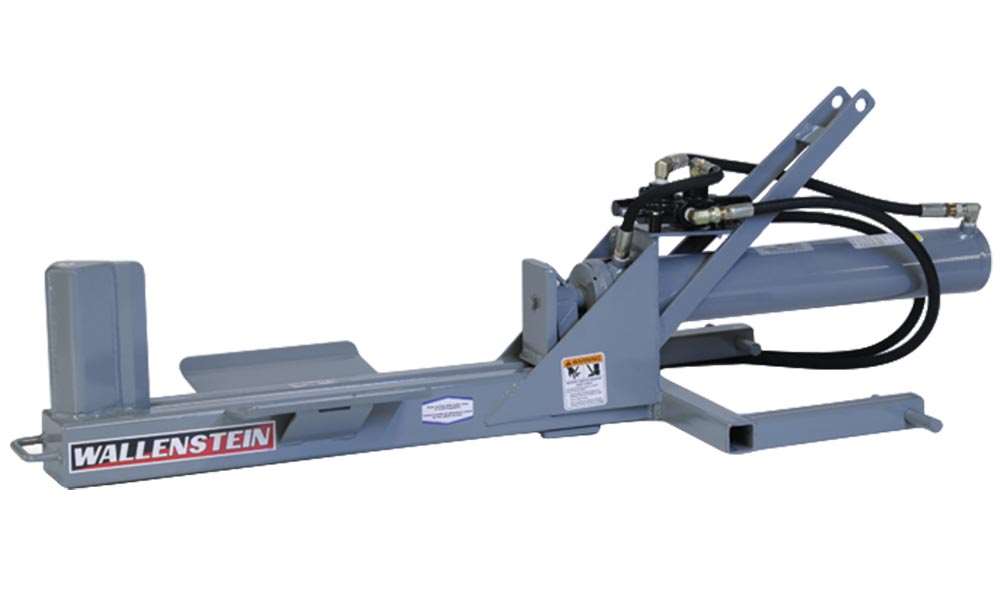

Wallenstein WX310 Tractor Log Splitter

SKU: WX310 Category: All Attachments
Pricing available by quote.
Financing available. Learn more
CALL NOW (866) 608-5565

Final fitment, freight, lead time, and order details are confirmed by Region Equipment before completion.

Wallenstein · Log Splitter

Product details

Overview

The WX310 splits firewood using tractor hydraulics.

  • Horizontal splitting bed uses tractor hydraulic power.
  • Return detent retracts the wedge after splitting.
  • Log-support surfaces help position material for splitting.

Applications

  • Forestry & Mulching

Model & setup

Model / SKU
WX310
Equipment type
Tractor
Mounting system
Cat I, iMatch™ & Quick Hitch Compatible

Your quote includes this model. We confirm the required mounting, connections and options for your application.

Specifications

Performance & operation

Orientation
Horizontal
Split Opening
24" (61 cm)
Split Force
20 Ton
Average Splitter Cycle Time
6.62 Seconds *depends on flow from tractor
Full Cycle
13.24 Seconds *depends on flow from tractor

Power & connections

Recommended Hydraulic Flow
10 gpm (38 lpm)
Mounting System
Cat I, iMatch™ & Quick Hitch Compatible

Dimensions & construction

Cylinder Diameter
4" (10 cm)
Wedge Height
9" (23 cm)
Total Weight
215 lb (98 kg)
Dimensions (LxWxH)
70" x 28" x 24" (178 cm x 72 cm x 61 cm)

Included equipment

Includes Hydraulic Hoses and Couplers
Yes

Confirm host-machine capacity, mounting arrangement and applicable hydraulic or PTO requirements before ordering. Listed mounting options require configuration confirmation.

Manuals & documents

Download ManualManufacturer Support

Configuration, installation & support

Configuration & Installation
  • Manufacturer recommended flow is 10 GPM; confirm the allowable hydraulic range, pressure and couplers for the exact carrier.
  • Confirm attachment weight, mount fit and the applicable operator manual before installation.
  • Standard models use an open-center valve; a closed-center tractor requires the corresponding closed-center configuration.
Warranty
  • Manufacturer limited warranty: five years for consumer use or two years for commercial/rental use, subject to original-purchaser eligibility, maintenance and exclusions.
