Overview
The WX210 splits firewood using a compatible loader hydraulic circuit.
- Inverted splitting head handles logs from the carrier.
- Integrated stripper helps clear wood from the wedge.
Applications
- Forestry & Mulching

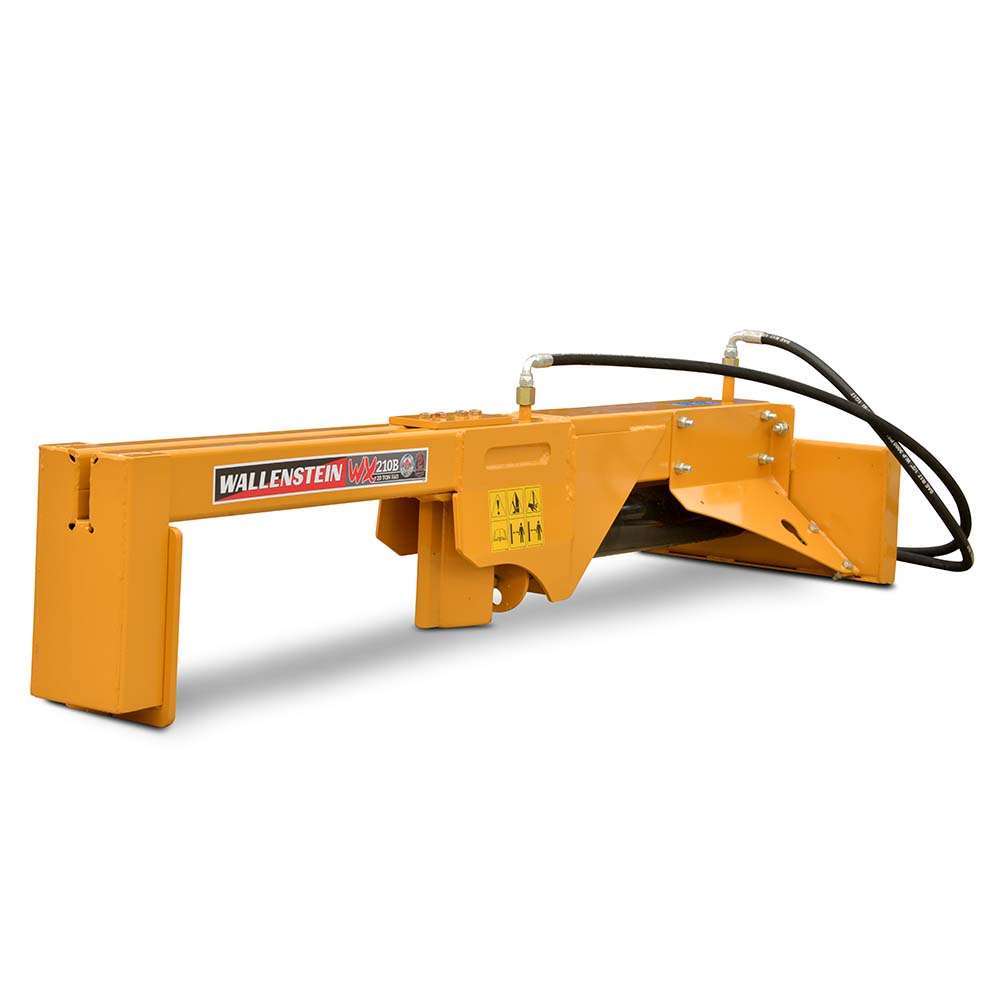

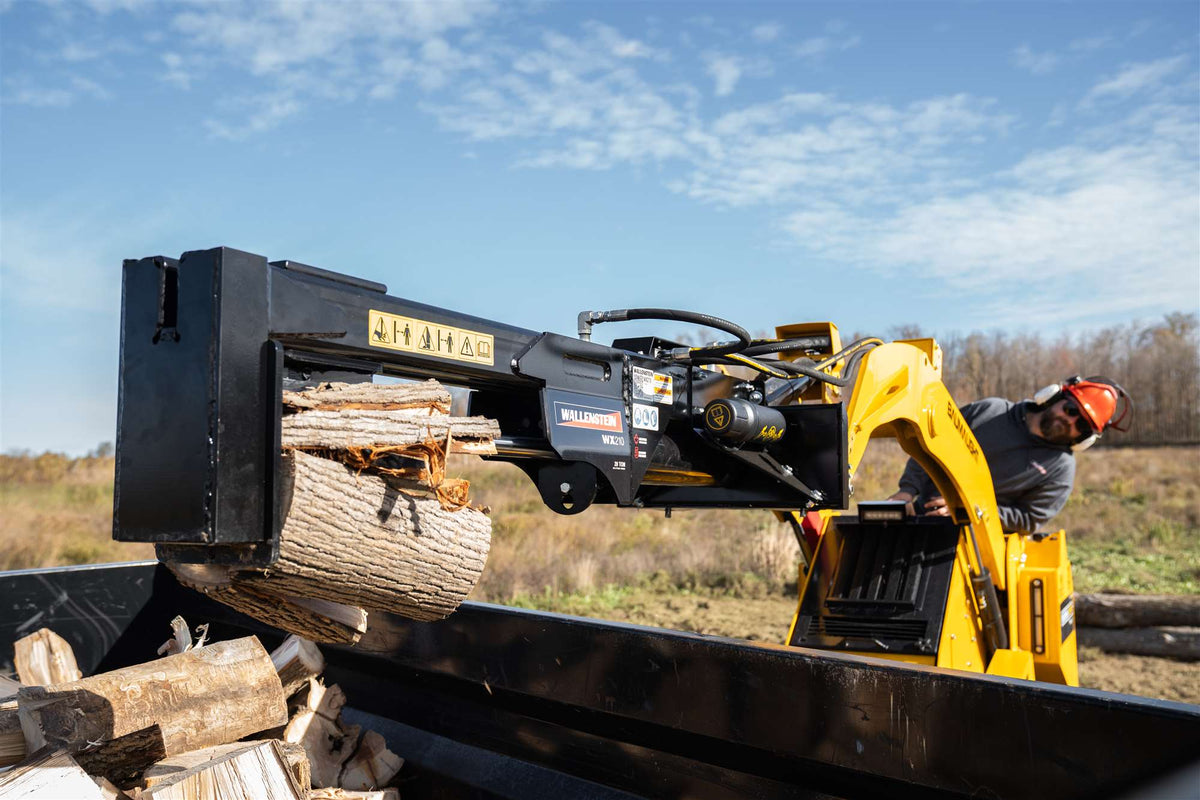

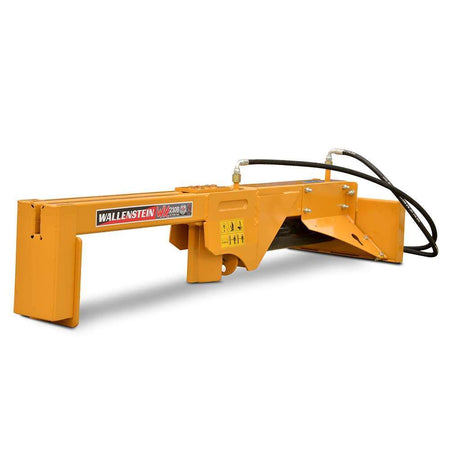

Wallenstein WX210 Mini Skid Steer Log Splitter
Pricing available by quote.
Financing available.
Learn more
Final fitment, freight, lead time, and order details are confirmed by Region Equipment before completion.
Wallenstein · Log Splitter
Product details
Model & setup
- Model / SKU
- WX210
- Equipment type
- Skid Steer
- Mounting system
- Mini Skidsteer Mounting Plate (Excludes Bobcat)
Your quote includes this model. We confirm the required mounting, connections and options for your application.
Specifications
Performance & operation
- Orientation
- Inverted Horizontal
- Split Opening
- 24" (61 cm)
- Split Force
- 20 Ton
- Average Splitter Cycle Time
- 6.62 Seconds *depends on flow from mini skidsteer
- Full Cycle
- 13.24 Seconds *depends on flow from mini skidsteer
Power & connections
- Recommended Hydraulic Flow
- 10 gpm (38 lpm)
- Mounting System
- Mini Skidsteer Mounting Plate (Excludes Bobcat)
Dimensions & construction
- Cylinder Diameter
- 4" (10 cm)
- Wedge Height
- 9" (23 cm)
- Total Weight
- 334 lb (151 kg)
- Dimensions (LxWxH)
- 73" x 24" x 19.5" (185 cm x 61 cm x 50 cm)
Included equipment
- Includes Hydraulic Hoses and Couplers
- Yes
Confirm host-machine capacity, mounting arrangement and applicable hydraulic or PTO requirements before ordering. Listed mounting options require configuration confirmation.
Manuals & documents
Configuration, installation & support
Configuration & Installation
- Manufacturer recommended flow is 10 GPM; confirm the allowable hydraulic range, pressure and couplers for the exact carrier.
- Confirm attachment weight, mount fit and the applicable operator manual before installation.
- WX210 uses the mini universal plate and excludes the Bobcat-specific mounting configuration.
Warranty
- Manufacturer limited warranty: five years for consumer use or two years for commercial/rental use, subject to original-purchaser eligibility, maintenance and exclusions.
