Overview
The WX20V splits firewood using tractor hydraulics.
- Pivoting bed supports horizontal or vertical splitting.
- Return detent retracts the wedge after splitting.
Applications
- Forestry & Mulching

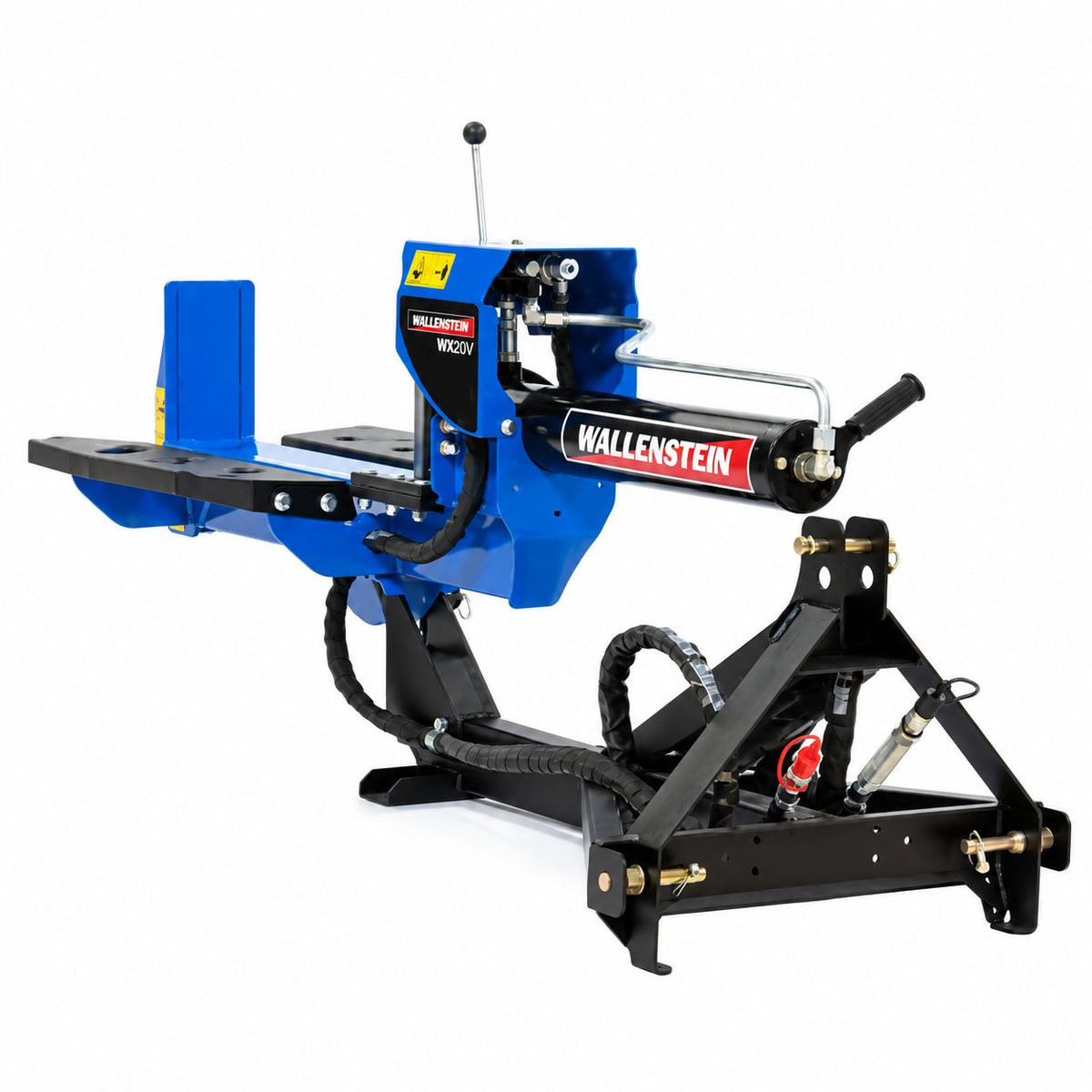

Wallenstein WX20V Tractor Log Splitter
Pricing available by quote.
Financing available.
Learn more
Final fitment, freight, lead time, and order details are confirmed by Region Equipment before completion.
Wallenstein · Log Splitter
Product details
Model & setup
- Model / SKU
- WX20V
- Equipment type
- Tractor
- Mounting system
- Category I / II three-point hitch
Your quote includes this model. We confirm the required mounting, connections and options for your application.
Specifications
Performance & operation
- Split Force
- 20 ton
- Split Opening
- 24 in (61 cm)
- Orientation
- Horizontal / vertical
- Average / Full Cycle
- 6.4 / 12.9 seconds at 11 gpm (42 lpm)
Power & connections
- Hydraulic Flow Range
- 8–20 gpm (30–76 lpm)
- Mounting System
- Category I / II three-point hitch
Dimensions & construction
- Cylinder Diameter
- 4 in (10 cm)
- Wedge Height
- 9.5 in (24 cm)
- Total Weight
- 315 lb (143 kg)
- Dimensions
- 75.7 x 32.7 x 38.3 in (192.3 x 83.1 x 97.3 cm)
Confirm tractor three-point capacity, hydraulic flow and coupler compatibility before ordering.
Manuals & documents
Configuration, installation & support
Configuration & Installation
- Match the tractor hitch, lift capacity and hydraulic connections to the serial-specific manual.
- The documented hydraulic range is 8–20 GPM. A qualified installer must confirm the valve circuit and relief setting.
Warranty
- Manufacturer limited warranty: five years for consumer use or two years for commercial/rental use, subject to original-purchaser eligibility, maintenance and exclusions.
