Overview
The WX20H splits firewood using tractor hydraulics.
- Double-sided wedge splits on both strokes.
- Log-support surfaces help position material for splitting.
Applications
- Forestry & Mulching

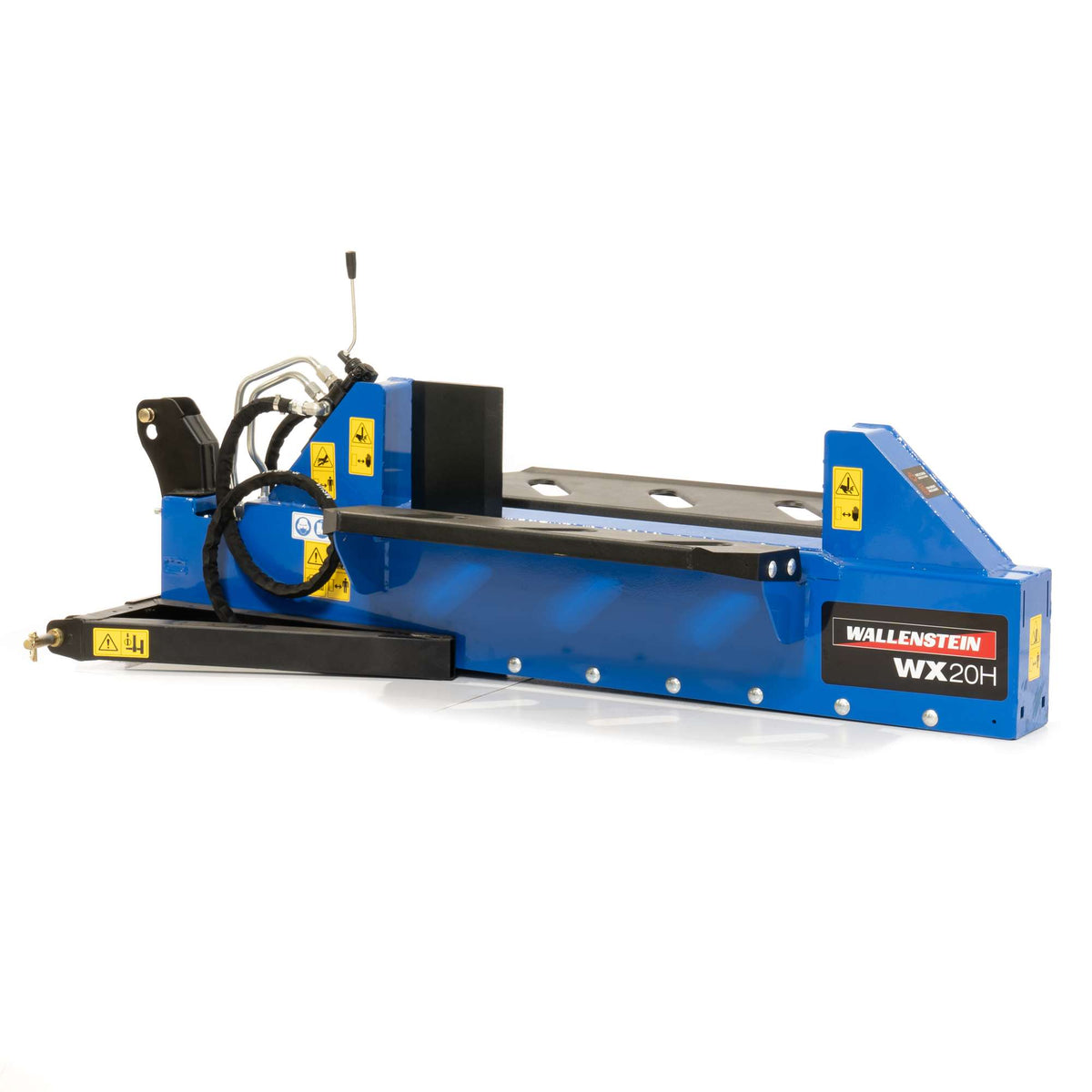

Wallenstein WX20H Tractor Log Splitter
Pricing available by quote.
Financing available.
Learn more
Final fitment, freight, lead time, and order details are confirmed by Region Equipment before completion.
Wallenstein · Log Splitter
Product details
Model & setup
- Model / SKU
- WX20H
- Equipment type
- Tractor
- Mounting system
- Category I / II three-point hitch
Your quote includes this model. We confirm the required mounting, connections and options for your application.
Specifications
Performance & operation
- Orientation
- Horizontal
- Split Opening
- 24" (61 cm)
- Split Force
- 20 Ton
- Average Splitter Cycle Time
- 6.6 Seconds *depends on flow from tractor
- Full Cycle
- 13.2 Seconds *depends on flow from tractor
Power & connections
- Recommended Hydraulic Flow
- 11 gpm (42 lpm)
- Mounting System
- Category I / II three-point hitch
Dimensions & construction
- Cylinder Diameter
- 4" (10cm)
- Wedge Height
- 9.375" (23.8 cm)
- Total Weight
- 360 lb (163 kg)
- Dimensions (LxWxH)
- 70.1" x 32.7" x 28.4" (178 cm x 83 cm x 72 cm)
Included equipment
- Includes Hydraulic Hoses and Couplers
- Yes
Confirm host-machine capacity, mounting arrangement and applicable hydraulic or PTO requirements before ordering. Listed mounting options require configuration confirmation.
Manuals & documents
Configuration, installation & support
Configuration & Installation
- Match the tractor hitch, lift capacity and hydraulic connections to the serial-specific manual.
- The documented hydraulic range is 8–20 GPM. A qualified installer must confirm the valve circuit and relief setting.
- The standard valve requires an open-center system; closed-center tractors require the appropriate valve configuration.
Warranty
- Manufacturer limited warranty: five years for consumer use or two years for commercial/rental use, subject to original-purchaser eligibility, maintenance and exclusions.
