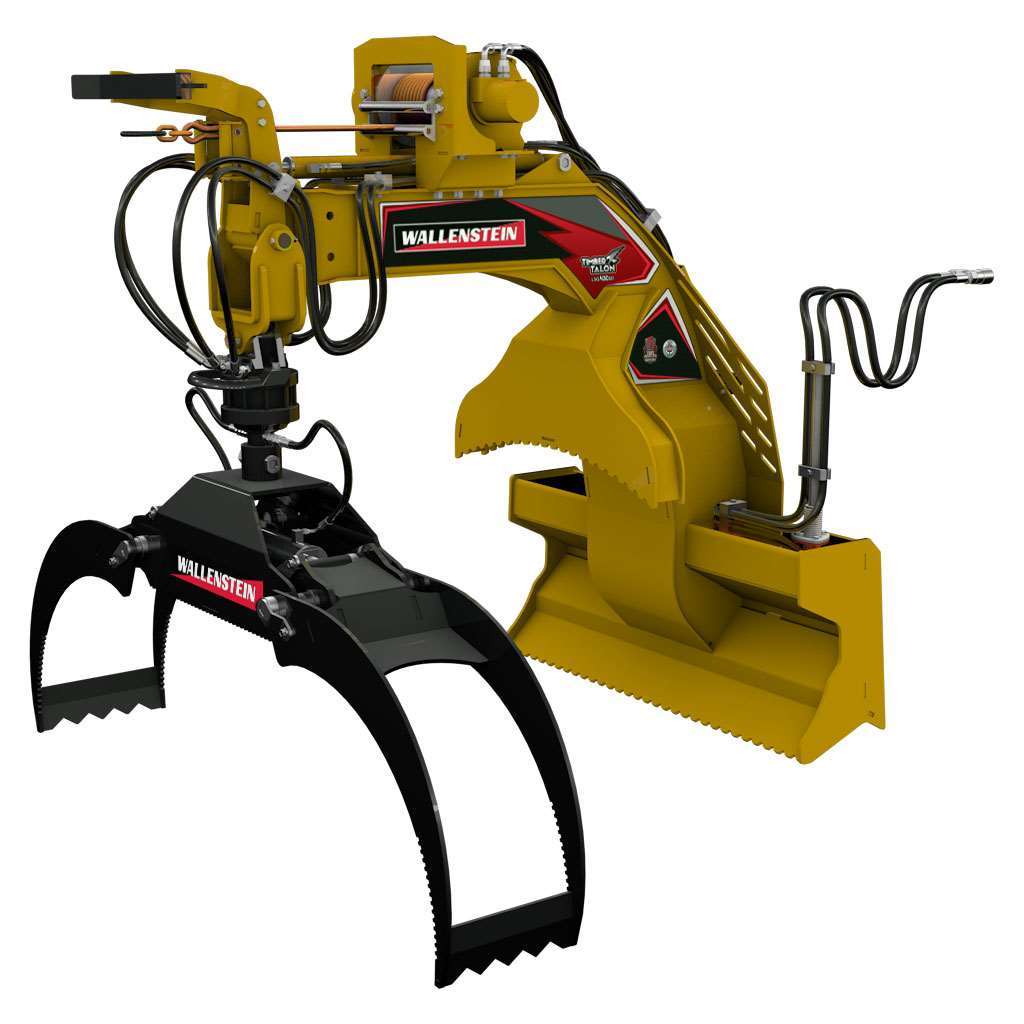

Wallenstein LXG430RP

Wallenstein LXG430RP Skid Steer Log Grapple

SKU: LXG430RP Category: All Attachments
Pricing available by quote.
Financing available. Learn more
CALL NOW (866) 608-5565

Final fitment, freight, lead time, and order details are confirmed by Region Equipment before completion.

Wallenstein · Log Grapple

Product details

Overview

The LXG430RP grips and repositions logs for woodlot, forestry, and property work. Match the carrier, mounting system, and hydraulic connections to the model.

  • Hydraulic rotator positions logs through a full circle.
  • Bypass jaws grip logs across a range of diameters.
  • Cantilever cradle supports logs during handling.
  • Extendable boom and hydraulic winch support woodlot work.

Applications

  • Forestry & Mulching
  • Land Clearing
  • Material Handling

Model & setup

Model / SKU
LXG430RP
Equipment type
Skid Steer
Mounting system
Universal Skidsteer Quick Attach Plate

Your quote includes this model. We confirm the required mounting, connections and options for your application.

Specifications

Performance & operation

Grapple Opening
3" - 72" (8 cm - 182 cm)
Grapple Rotation
360° Hydraulic Rotator
Lift Capacity
4500 lbs (2041 kg)
Clamp Force
21000 lbs (9525 kg)
Extendable Boom
24" (61 cm)
Winch Pulling Capacity
9000 lbs (4082 kg)

Power & connections

Engine HP Range
70 - 100
Recommended Hydraulic Flow
10 gpm (38 lpm)
Mounting System
Universal Skidsteer Quick Attach Plate

Dimensions & construction

Push Bar Width
19" (48 cm)
Winch Rope Length
100' (30 m)
Total Weight
1444 lb (655 kg)
Dimensions (LxWxH)
67" x 76" x 70" (171 cm x 193 cm x 178 cm)

Included equipment

Includes Hydraulic Hoses and Couplers
Yes

Confirm host-machine capacity, mounting arrangement and applicable hydraulic or PTO requirements before ordering. Listed mounting options require configuration confirmation.

Attachment and loader ratings do not establish the safe lifting capacity of a host machine. Confirm the applicable load chart and operating configuration.

Manuals & documents

Download ManualManufacturer Support

Configuration, installation & support

Configuration & Installation
  • Confirm the skid steer mounting interface, rated capacity, and hydraulic/control connections.
  • Match spring, hydraulic-rotation, and winch configurations to the supplied model.
Warranty
  • Manufacturer limited warranty: five years for consumer use or two years for commercial/rental use. Original-purchaser eligibility, maintenance requirements, and exclusions apply.
