Wallenstein LXG430R 1

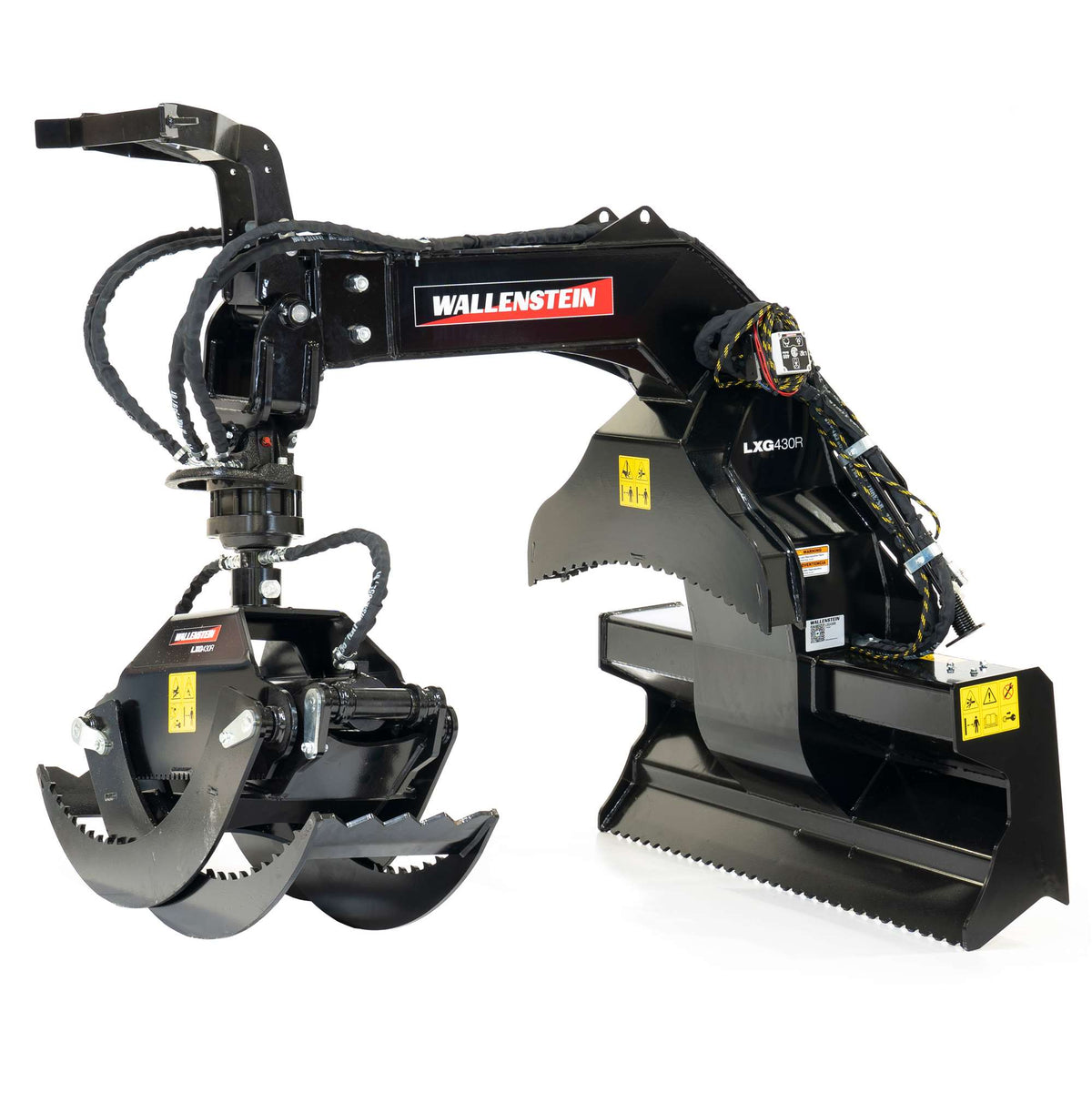

Wallenstein LXG430R Skid Steer Log Grapple

SKU: LXG430R Category: All Attachments
Pricing available by quote.
Financing available. Learn more
CALL NOW (866) 608-5565

Final fitment, freight, lead time, and order details are confirmed by Region Equipment before completion.

Wallenstein · Log Grapple

Product details

Overview

The LXG430R grips and repositions logs for woodlot, forestry, and property work. Match the carrier, mounting system, and hydraulic connections to the model.

  • Hydraulic rotator positions logs through a full circle.
  • Bypass jaws grip logs across a range of diameters.
  • Cantilever cradle supports logs during handling.

Applications

  • Forestry & Mulching
  • Land Clearing
  • Material Handling

Model & setup

Model / SKU
LXG430R
Equipment type
Skid Steer
Mounting system
Universal Skidsteer Quick Attach Plate

Your quote includes this model. We confirm the required mounting, connections and options for your application.

Specifications

Performance & operation

Grapple Opening
3" - 72" (8 cm - 182 cm)
Grapple Rotation
360° Hydraulic Rotator
Lift Capacity
4500 lbs (2041 kg)
Clamp Force
21000 lbs (9525 kg)

Power & connections

Engine HP Range
60 - 100
Recommended Hydraulic Flow
5 gpm (19 lpm)
Mounting System
Universal Skidsteer Quick Attach Plate

Dimensions & construction

Push Bar Width
19" (48 cm)
Total Weight
1124 lb (510 kg)
Dimensions (LxWxH)
67" x 76" x 67" (171 cm x 193 cm x 171 cm)

Included equipment

Includes Hydraulic Hoses and Couplers
Yes

Published grapple lift capacity is an attachment rating, not approval of the host machine's lifting capacity. Confirm the machine load chart, mounting arrangement and hydraulic requirements before ordering.

Manuals & documents

Download ManualManufacturer Support

Configuration, installation & support

Configuration & Installation
  • Confirm the skid steer mounting interface, rated capacity, and hydraulic/control connections.
  • Match spring, hydraulic-rotation, and winch configurations to the supplied model.
Warranty
  • Manufacturer limited warranty: five years for consumer use or two years for commercial/rental use. Original-purchaser eligibility, maintenance requirements, and exclusions apply.
