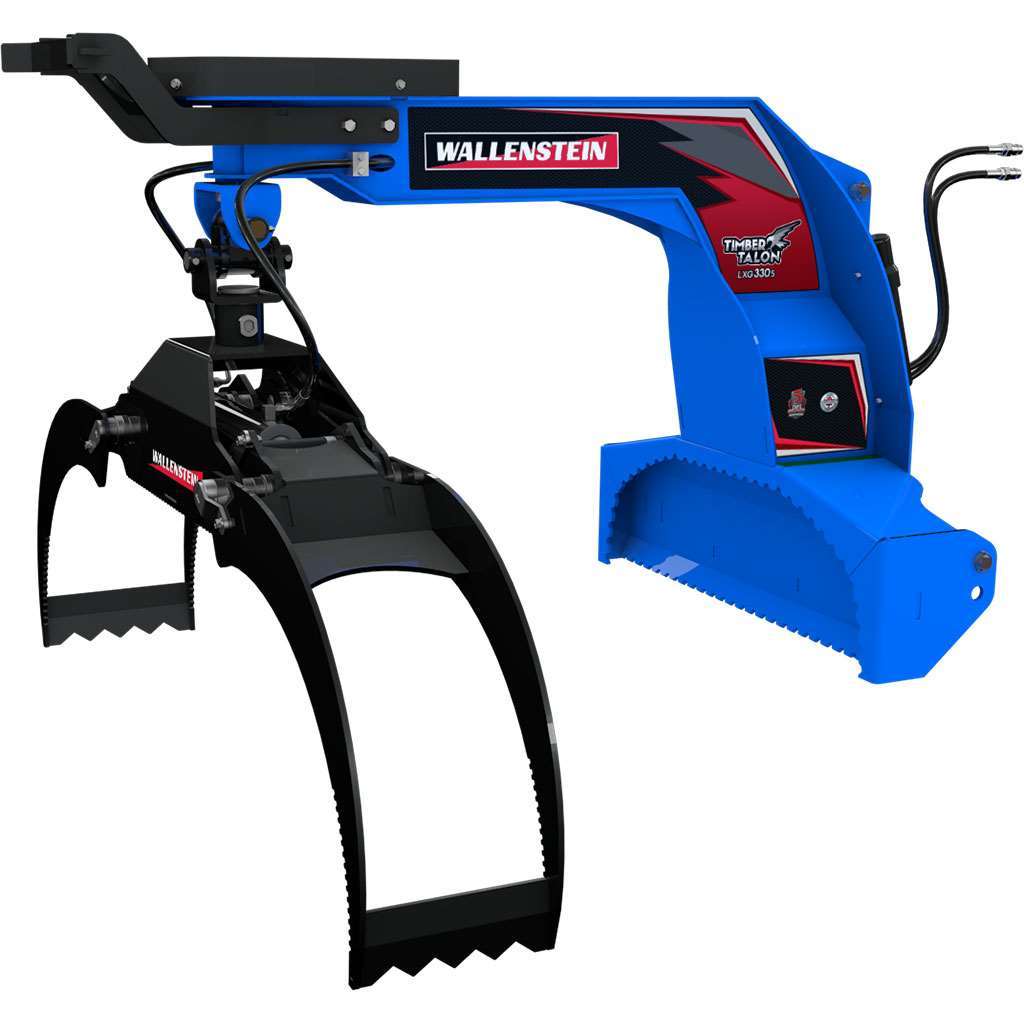

Wallenstein LXG330S Tractor Log Grapple

SKU: LXG330S Category: All Attachments
Pricing available by quote.
Financing available. Learn more
CALL NOW (866) 608-5565

Final fitment, freight, lead time, and order details are confirmed by Region Equipment before completion.

Wallenstein · Log Grapple

Product details

Overview

The LXG330S grips and repositions logs for woodlot, forestry, and property work. Match the carrier, mounting system, and hydraulic connections to the model.

  • Spring-centered rotation follows turns and returns toward center.
  • Bypass jaws grip logs across a range of diameters.
  • Cantilever cradle supports logs during handling.

Applications

  • Forestry & Mulching
  • Land Clearing
  • Material Handling

Model & setup

Model / SKU
LXG330S
Equipment type
Tractor
Mounting system
Cat II & III

Your quote includes this model. We confirm the required mounting, connections and options for your application.

Specifications

Performance & operation

Grapple Opening
3" - 72" (8 cm - 182 cm)
Grapple Rotation
180° Spring Center
Lift Capacity
4500 lbs (2041 kg)
Clamp Force
21000 lbs (9525 kg)

Power & connections

Engine HP Range
55 - 120
Recommended Hydraulic Flow
5 gpm (19 lpm)
Mounting System
Cat II & III

Dimensions & construction

Push Bar Width
19" (48 cm)
Total Weight
836 lb (379 kg)
Dimensions (LxWxH)
70" x 76" x 56" (178 cm x 193 cm x 143 cm)

Included equipment

Includes Hydraulic Hoses and Couplers
Yes

Published grapple lift capacity is an attachment rating, not approval of the host machine's lifting capacity. Confirm the machine load chart, mounting arrangement and hydraulic requirements before ordering.

Manuals & documents

Download ManualManufacturer Support

Configuration, installation & support

Configuration & Installation
  • Confirm the three-point hitch category, tractor stability, and hydraulic connections for the selected model.
  • Spring models use one pressure/return set; R models use two sets; the RP uses one set with its flow-divider arrangement.
Warranty
  • Manufacturer limited warranty: five years for consumer use or two years for commercial/rental use. Original-purchaser eligibility, maintenance requirements, and exclusions apply.
