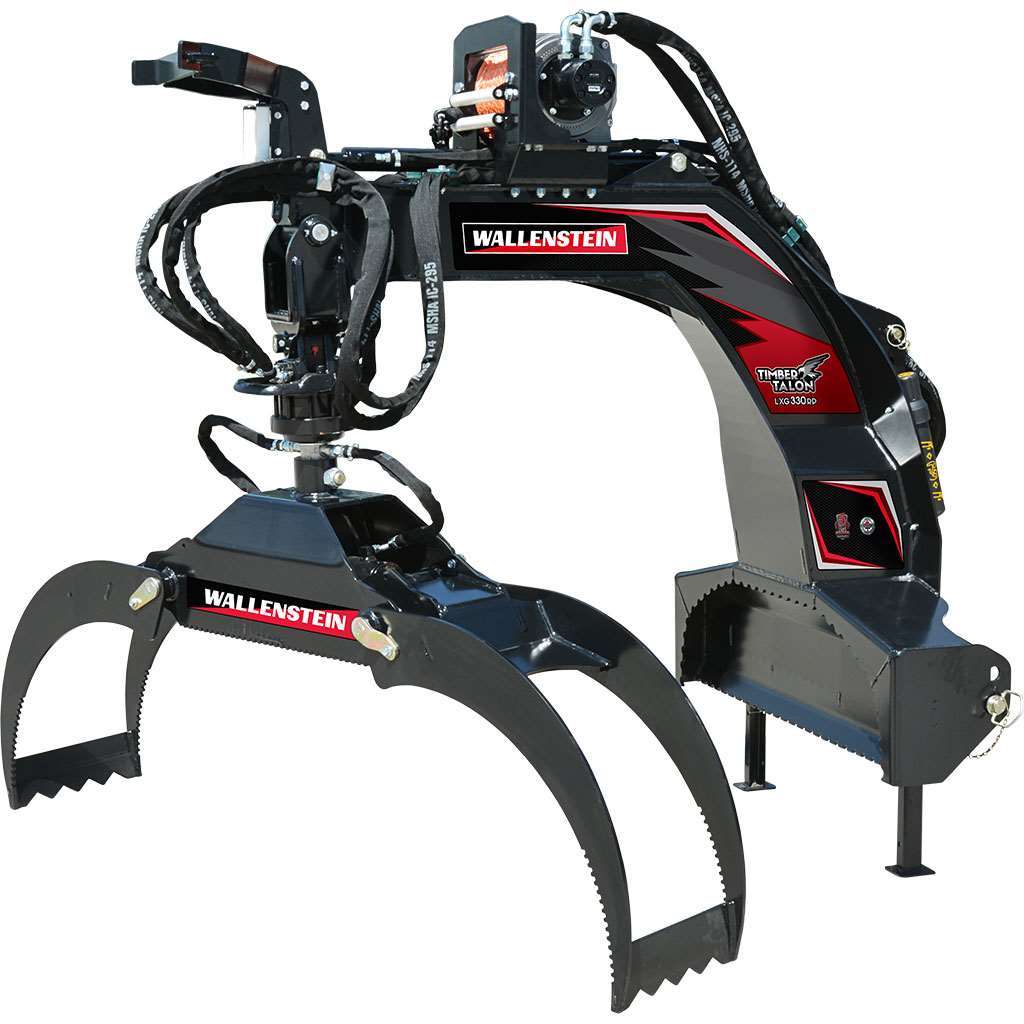

Wallenstein LXG330RP Tractor Log Grapple

SKU: LXG330RP Category: All Attachments
Pricing available by quote.
Financing available. Learn more
CALL NOW (866) 608-5565

Final fitment, freight, lead time, and order details are confirmed by Region Equipment before completion.

Wallenstein · Log Grapple

Product details

Overview

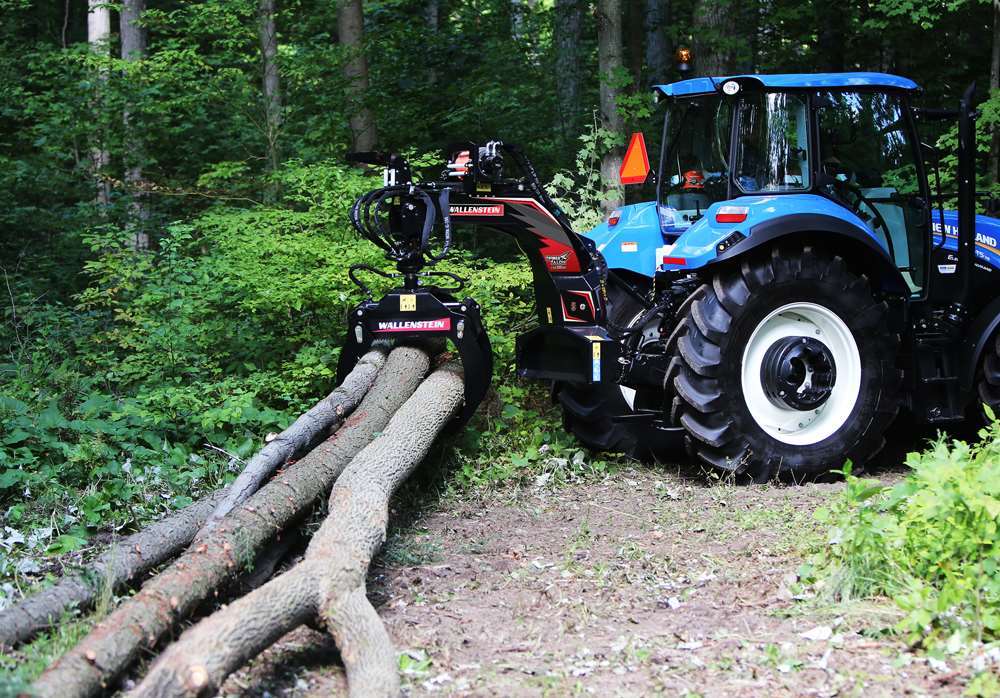

The LXG330RP grips and repositions logs for woodlot, forestry, and property work. Match the carrier, mounting system, and hydraulic connections to the model.

  • Hydraulic rotator positions logs through a full circle.
  • Bypass jaws grip logs across a range of diameters.
  • Cantilever cradle supports logs during handling.
  • Extendable boom and hydraulic winch support woodlot work.

Applications

  • Forestry & Mulching
  • Land Clearing
  • Material Handling

Model & setup

Model / SKU
LXG330RP
Equipment type
Tractor
Mounting system
Cat II & III

Your quote includes this model. We confirm the required mounting, connections and options for your application.

Specifications

Performance & operation

Grapple Opening
3" - 72" (8 cm - 182 cm)
Grapple Rotation
360° Hydraulic Rotator
Lift Capacity
4500 lbs (2041 kg)
Clamp Force
21000 lbs (9525 kg)
Extendable Boom
24" (61 cm)
Winch Pulling Capacity
9000 lbs (4082 kg)

Power & connections

Engine HP Range
55 - 120
Recommended Hydraulic Flow
10 gpm (38 lpm)
Mounting System
Cat II & III

Dimensions & construction

Push Bar Width
19" (48 cm)
Winch Rope Length
100' (30 m)
Total Weight
1229 lb (557 kg)
Dimensions (LxWxH)
68" x 76" x 70" (173 cm x 193 cm x 178 cm)

Included equipment

Includes Hydraulic Hoses and Couplers
Yes

Confirm host-machine capacity, mounting arrangement and applicable hydraulic or PTO requirements before ordering. Listed mounting options require configuration confirmation.

Attachment and loader ratings do not establish the safe lifting capacity of a host machine. Confirm the applicable load chart and operating configuration.

Manuals & documents

Download ManualManufacturer Support

Configuration, installation & support

Configuration & Installation
  • Confirm the three-point hitch category, tractor stability, and hydraulic connections for the selected model.
  • Spring models use one pressure/return set; R models use two sets; the RP uses one set with its flow-divider arrangement.
Warranty
  • Manufacturer limited warranty: five years for consumer use or two years for commercial/rental use. Original-purchaser eligibility, maintenance requirements, and exclusions apply.
