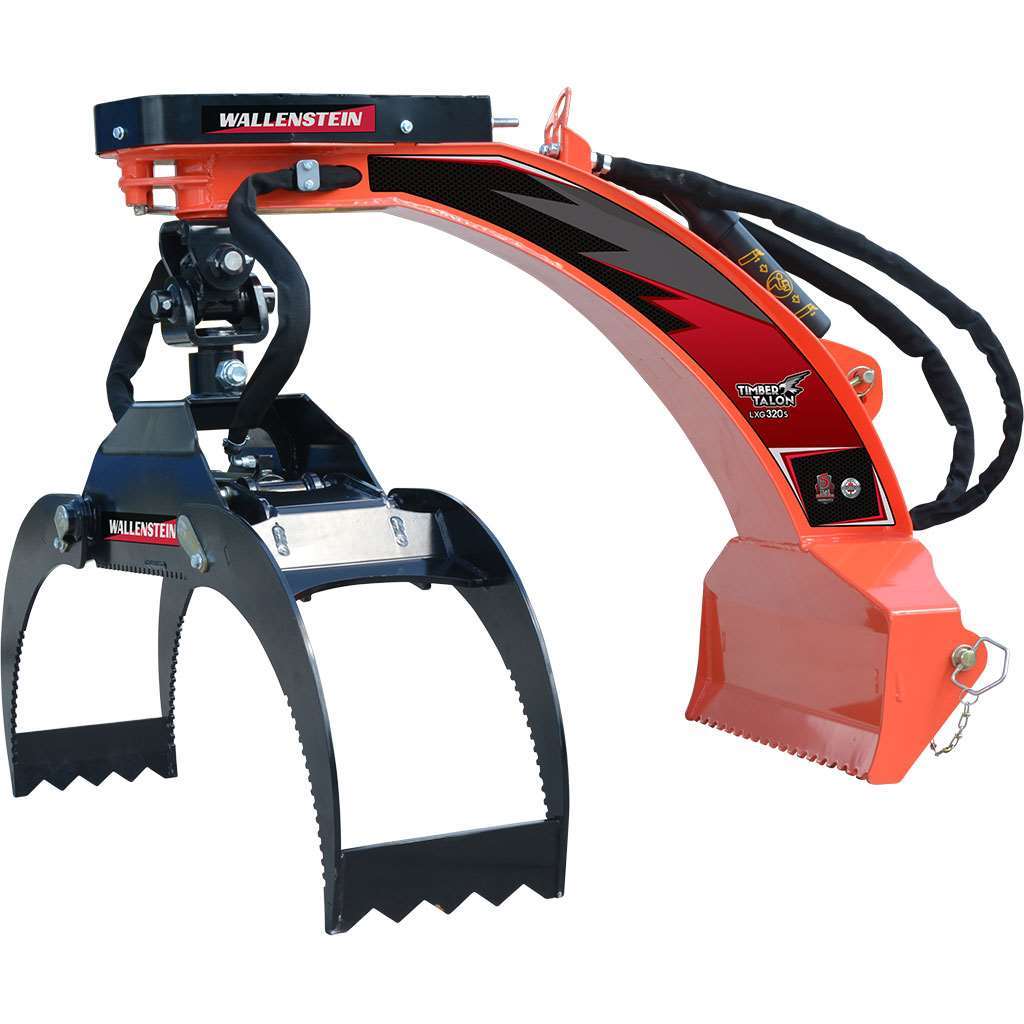

Wallenstein LXG320S Tractor Log Grapple

SKU: LXG320S Category: All Attachments
Pricing available by quote.
Financing available. Learn more
CALL NOW (866) 608-5565

Final fitment, freight, lead time, and order details are confirmed by Region Equipment before completion.

Wallenstein · Log Grapple

Product details

Overview

The LXG320S grips and repositions logs for woodlot, forestry, and property work. Match the carrier, mounting system, and hydraulic connections to the model.

  • Spring-centered rotation follows turns and returns toward center.
  • Bypass jaws grip logs across a range of diameters.
  • Cantilever cradle supports logs during handling.

Applications

  • Forestry & Mulching
  • Land Clearing
  • Material Handling

Model & setup

Model / SKU
LXG320S
Equipment type
Tractor
Mounting system
Cat I

Your quote includes this model. We confirm the required mounting, connections and options for your application.

Specifications

Performance & operation

Grapple Opening
3" - 48" (8 cm - 122 cm)
Grapple Rotation
180° Spring Center
Lift Capacity
3000 lbs (1360 kg)
Clamp Force
9400 lbs (4264 kg)

Power & connections

Engine HP Range
25 - 65
Recommended Hydraulic Flow
5 gpm (19 lpm)
Mounting System
Cat I

Dimensions & construction

Total Weight
350 lb (159 kg)
Dimensions (LxWxH)
51" x 52" x 43" (130 cm x 132 cm x 110 cm)

Included equipment

Includes Hydraulic Hoses and Couplers
Yes

Confirm host-machine capacity, mounting arrangement and applicable hydraulic or PTO requirements before ordering. Listed mounting options require configuration confirmation.

Attachment and loader ratings do not establish the safe lifting capacity of a host machine. Confirm the applicable load chart and operating configuration.

Manuals & documents

Download ManualManufacturer Support

Configuration, installation & support

Configuration & Installation
  • Confirm the three-point hitch category, tractor stability, and hydraulic connections for the selected model.
  • Spring models use one pressure/return set; R models use two sets; the RP uses one set with its flow-divider arrangement.
Warranty
  • Manufacturer limited warranty: five years for consumer use or two years for commercial/rental use. Original-purchaser eligibility, maintenance requirements, and exclusions apply.
