Wallenstein LXG210S Mini Skid Steer Log Grapple

SKU: LXG210S Category: All Attachments
Pricing available by quote.
Financing available. Learn more
CALL NOW (866) 608-5565

Final fitment, freight, lead time, and order details are confirmed by Region Equipment before completion.

Wallenstein · Log Grapple

Product details

Overview

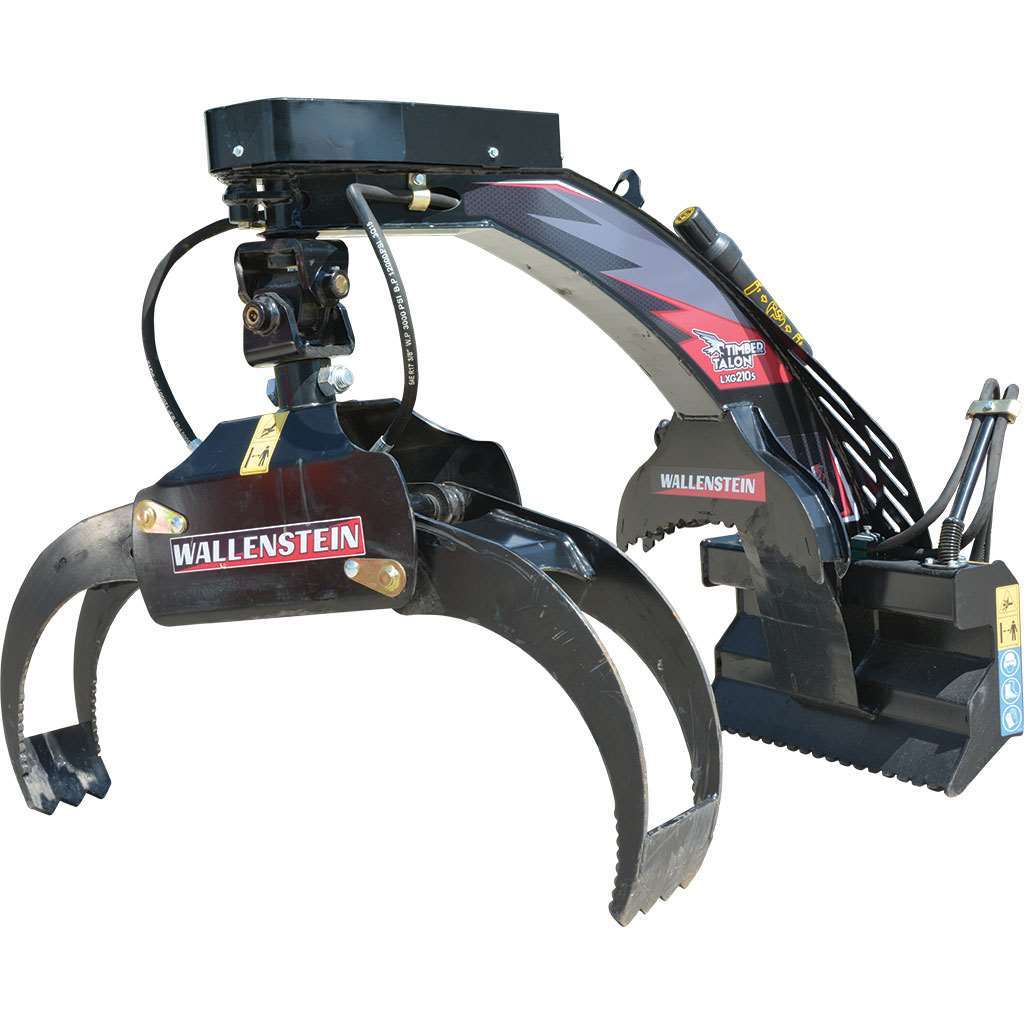

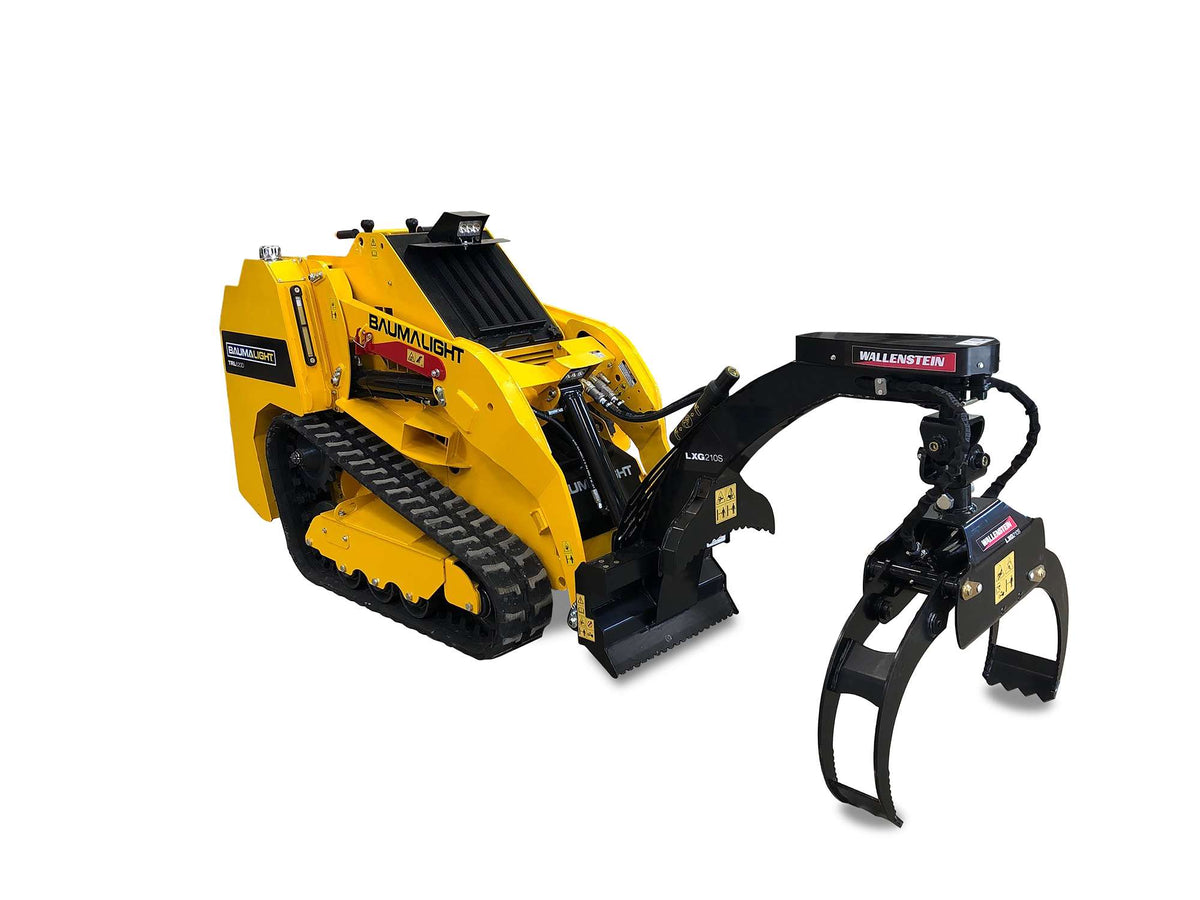

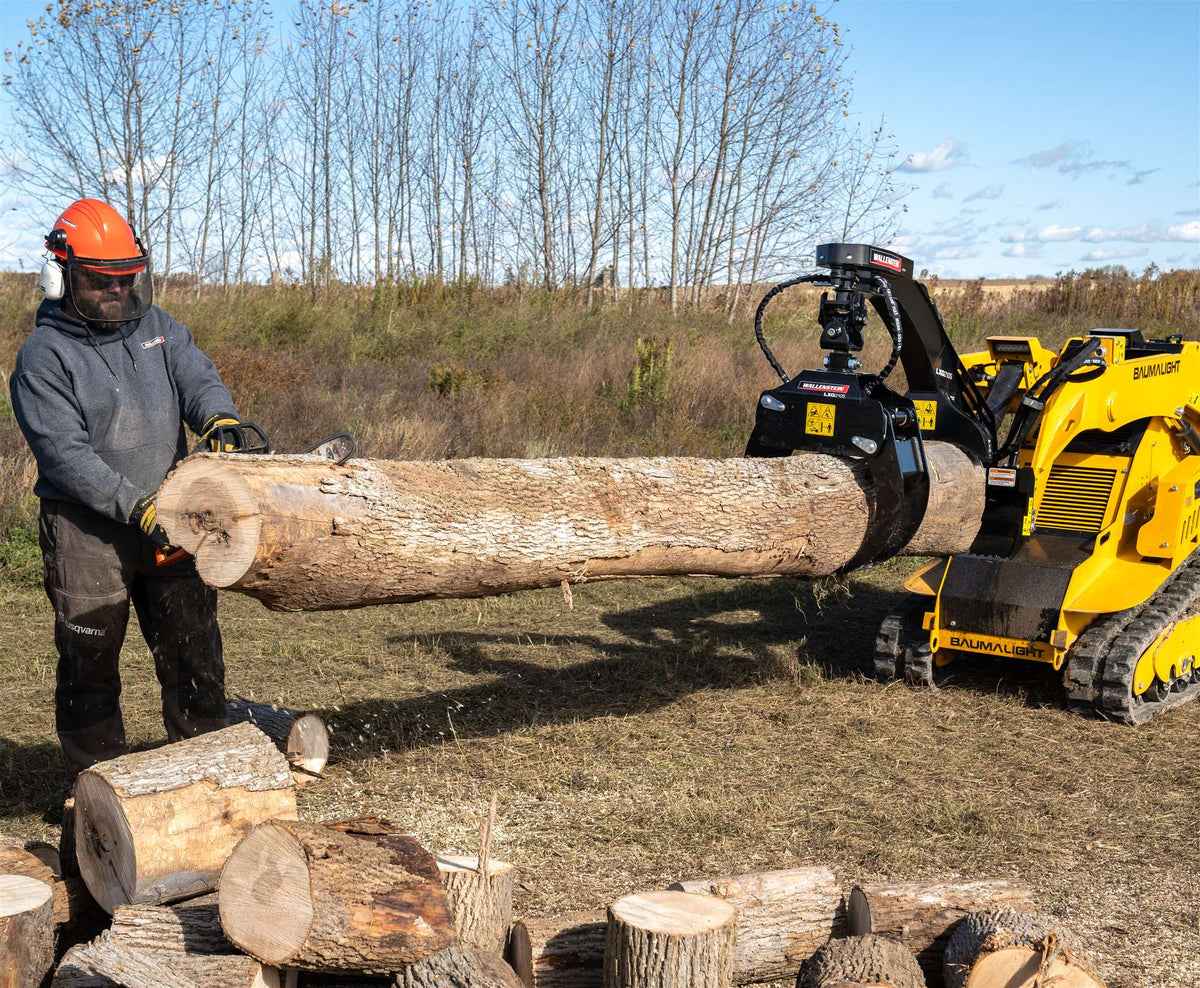

The LXG210S grips and repositions logs for woodlot, forestry, and property work. Match the carrier, mounting system, and hydraulic connections to the model.

  • Spring-centered rotation follows turns and returns toward center.
  • Bypass jaws grip logs across a range of diameters.
  • Cantilever cradle supports logs during handling.

Applications

  • Forestry & Mulching
  • Land Clearing
  • Material Handling

Model & setup

Model / SKU
LXG210S
Equipment type
Skid Steer
Mounting system
Universal Mini Skidsteer Plate

Your quote includes this model. We confirm the required mounting, connections and options for your application.

Specifications

Performance & operation

Grapple Opening
3" - 40" (8 cm - 102 cm)
Grapple Rotation
180° Spring Center
Lift Capacity
1000 lbs (454 kg)
Clamp Force
9400 lbs (4264 kg)

Power & connections

Engine HP Range
12 - 50
Recommended Hydraulic Flow
3 gpm (11 lpm)
Mounting System
Universal Mini Skidsteer Plate

Dimensions & construction

Total Weight
285 lb (129 kg)
Dimensions (LxWxH)
47" x 44" x 40" (120 cm x 112 cm x 102 cm)

Included equipment

Includes Hydraulic Hoses and Couplers
Yes

Confirm host-machine capacity, mounting arrangement and applicable hydraulic or PTO requirements before ordering. Listed mounting options require configuration confirmation.

Attachment and loader ratings do not establish the safe lifting capacity of a host machine. Confirm the applicable load chart and operating configuration.

Configuration, installation & support

Configuration & Installation
  • Confirm the mini loader mounting plate and capacity with attachment and load combined.
  • Resolve the manual flow-setting discrepancy with the manufacturer before commissioning.
Warranty
  • Manufacturer limited warranty: five years for consumer use or two years for commercial/rental use. Original-purchaser eligibility, maintenance requirements, and exclusions apply.
