Wallenstein GX720 Backhoe

SKU: GX720 Category: All Attachments
Pricing available by quote.
Financing available. Learn more
CALL NOW (866) 608-5565

Final fitment, freight, lead time, and order details are confirmed by Region Equipment before completion.

Wallenstein · Backhoe

Product details

Overview

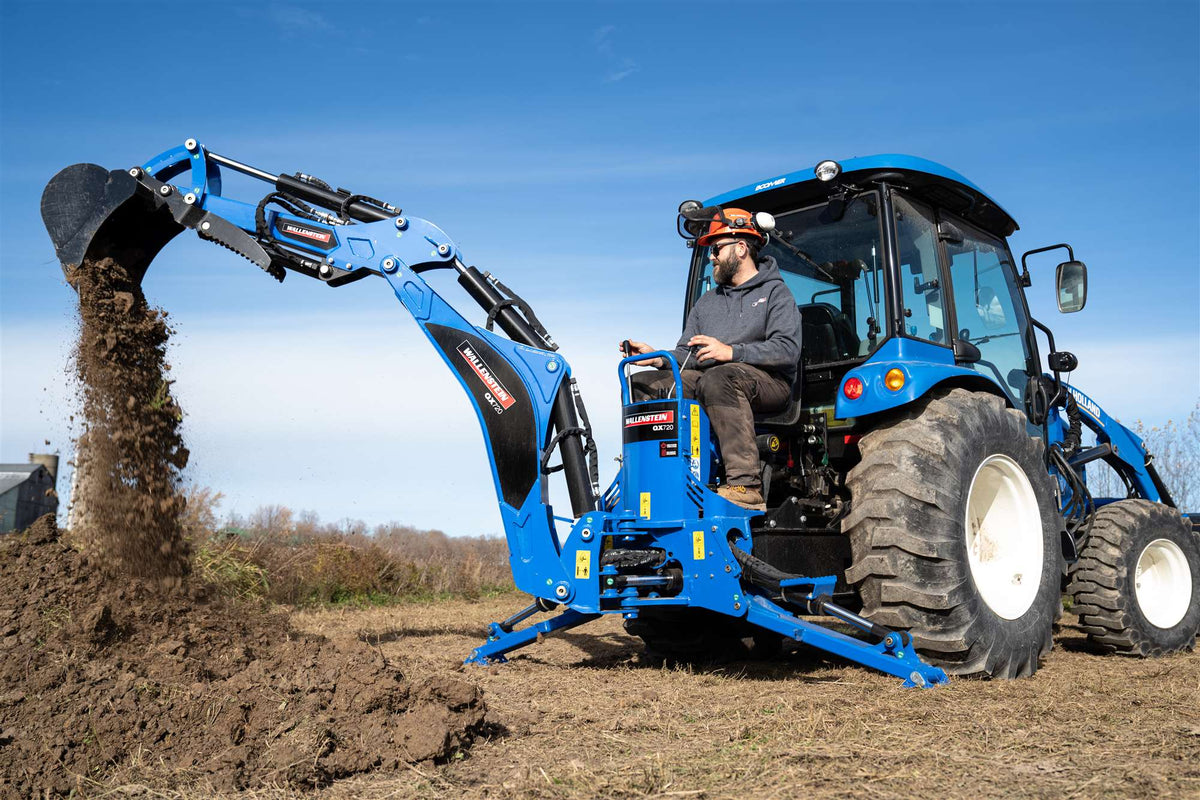

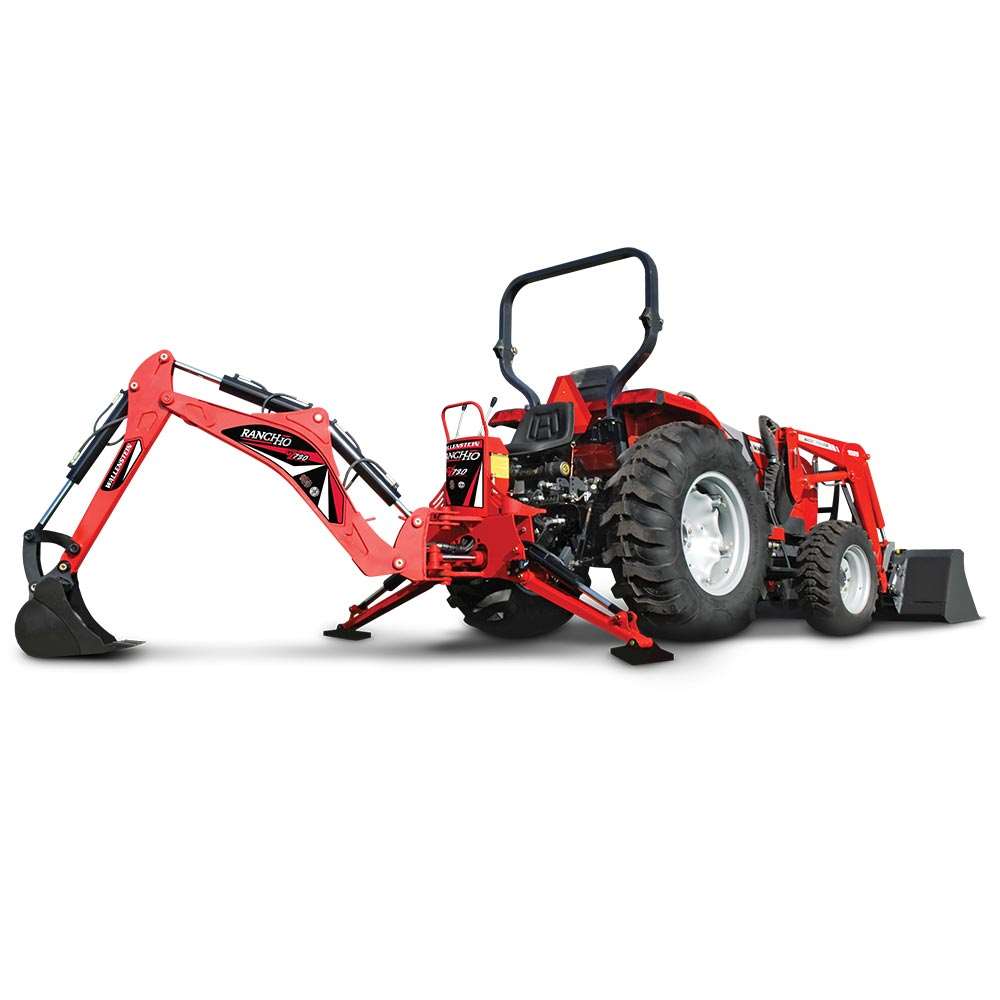

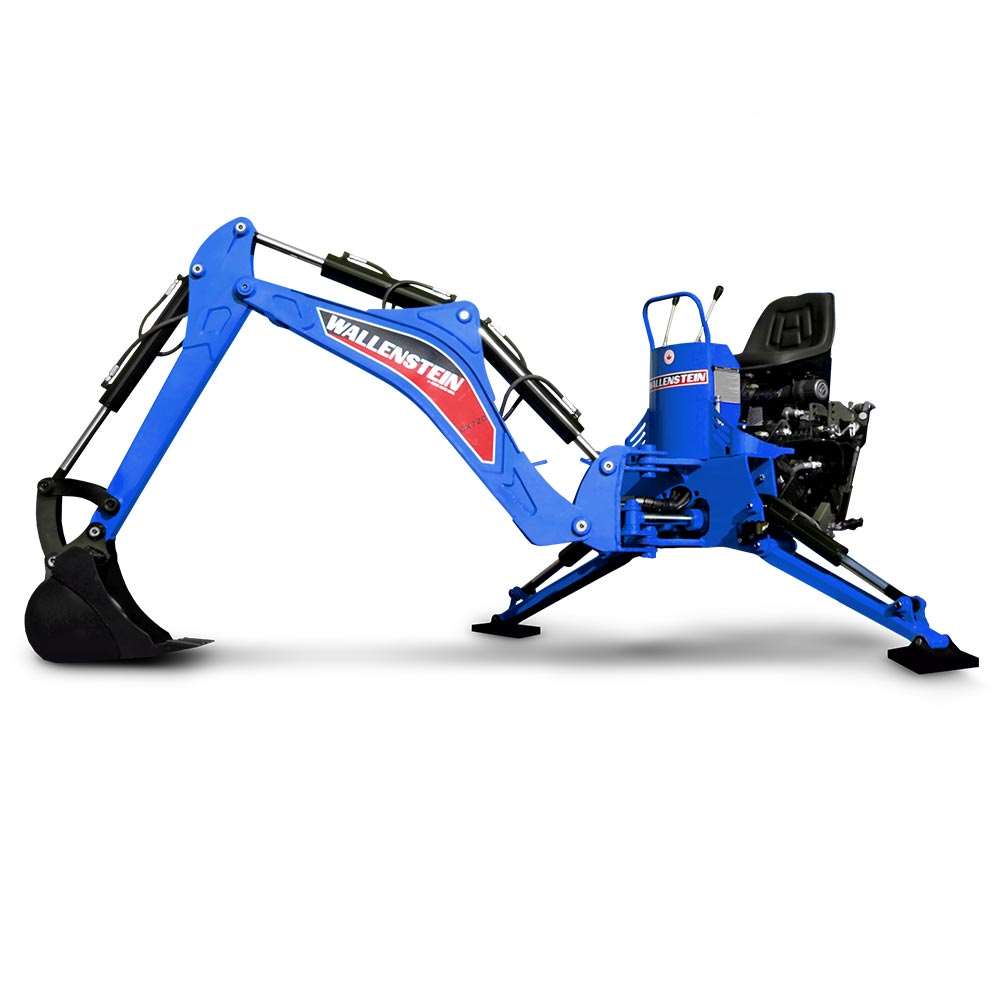

The GX720 provides hydraulic digging capability with a carrier-specific mounting setup.

  • Curved boom and hydraulic stabilizers support excavation.
  • Greaseable pivots and replaceable bucket teeth simplify servicing.
  • Dual cylinders control boom swing.

Applications

  • Site Work & Construction

Model & setup

Model / SKU
GX720
Equipment type
Tractor, Skid Steer
Mounting system
Subframe, Skidsteer Universal Plate, PT302 (Cat I), PT322 (Cat II)

Your quote includes this model. We confirm the required mounting, connections and options for your application.

Specifications

Performance & operation

Digging Depth
7' 8" (234 cm)
Number of Swing Cylinders
2
Reach from Swing Post
123" (312 cm)
Bucket Rotation
180°
Swing Arc
180°
SAE* Dipper Boom Digging Force
2300 lbs (1043 kg)
SAE* Bucket Digging Force
3800 lbs (1724 kg)
Boom Lift Capacity
925 lbs (420 kg)

Power & connections

Engine HP Range (Tractor)
30 - 65
Engine HP Range (Skidsteer)
30 - 75
Required Hydraulic Flow
5 - 27 gpm (19 - 102 lpm)
Operating Pressure
2250 psi (15513 kPa)
Mounting System
Subframe, Skidsteer Universal Plate, PT302 (Cat I), PT322 (Cat II)

Dimensions & construction

Stabilizer Width (Spread)
89" (226 cm)
Main Boom Cylinder Diameter
3" (76 mm)
Dipper Cylinder Diameter
2.5" (64 mm)
Bucket Cylinder Diameter
2.5" (64 mm)
Swing Cylinder Diameter
2.5" (64 mm)
Stabilizer Cylinder Diameter
2.5" (64 mm)
Ground Clearance
10.5" (27 cm)
Loading Height
80" (203 cm)
Overall Operating Height (Fully Raised)
119" (302 cm)
Total Weight
765 lb (347 kg)
Transport Dimensions (LxWxH)
80" x 43" x 79" (203 cm x 109 cm x 201 cm)

Included equipment

Includes Flow Divider
Yes
Includes Hydraulic Hoses and Couplers
Yes

Confirm host-machine capacity, mounting arrangement and applicable hydraulic or PTO requirements before ordering. Listed mounting options require configuration confirmation.

Attachment and loader ratings do not establish the safe lifting capacity of a host machine. Confirm the applicable load chart and operating configuration.

Manuals & documents

Download ManualManufacturer Support

Configuration, installation & support

Configuration & Installation
  • Confirm the approved subframe or mounting kit and bucket for the exact carrier. Tractor installations require a front loader for stability.
  • Match the open- or closed-center hydraulic circuit and follow the model-specific setup manual.
Warranty
  • Manufacturer limited warranty: five years for consumer use or two years for commercial/rental use, subject to original-purchaser eligibility, maintenance and exclusions.
