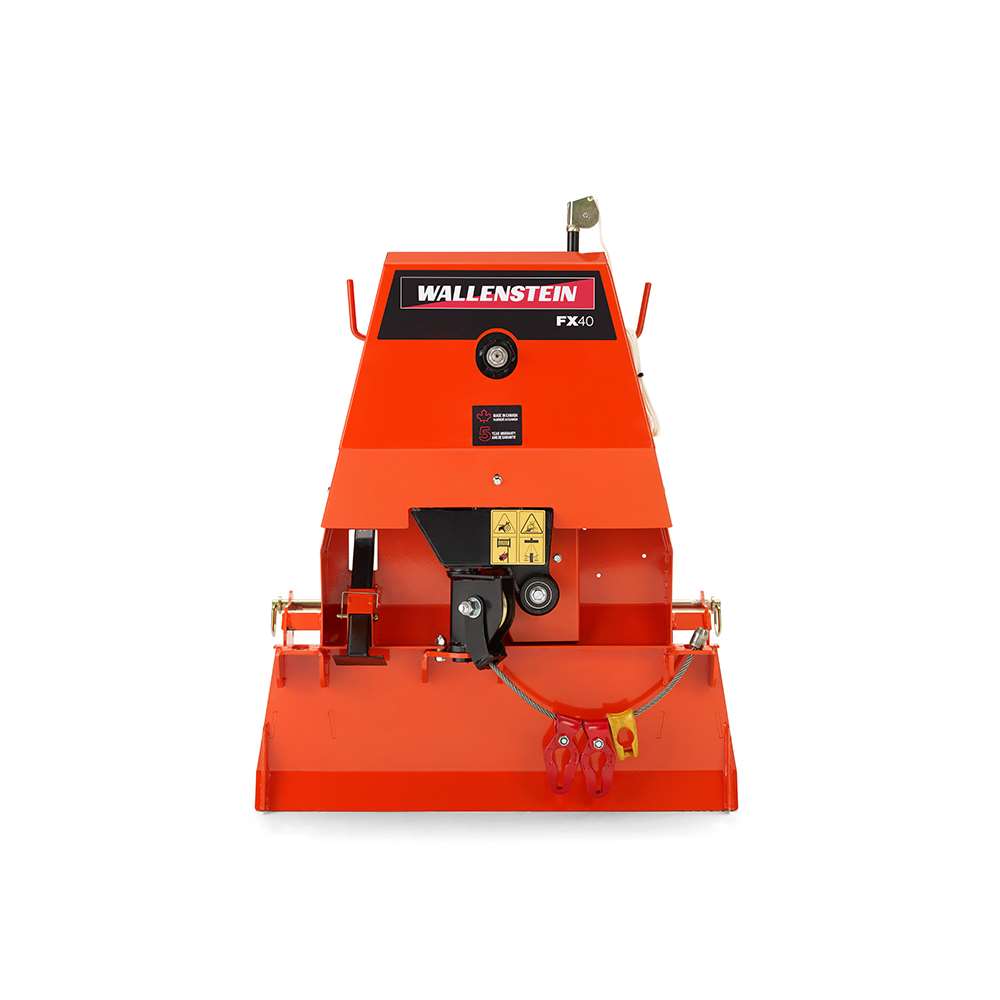

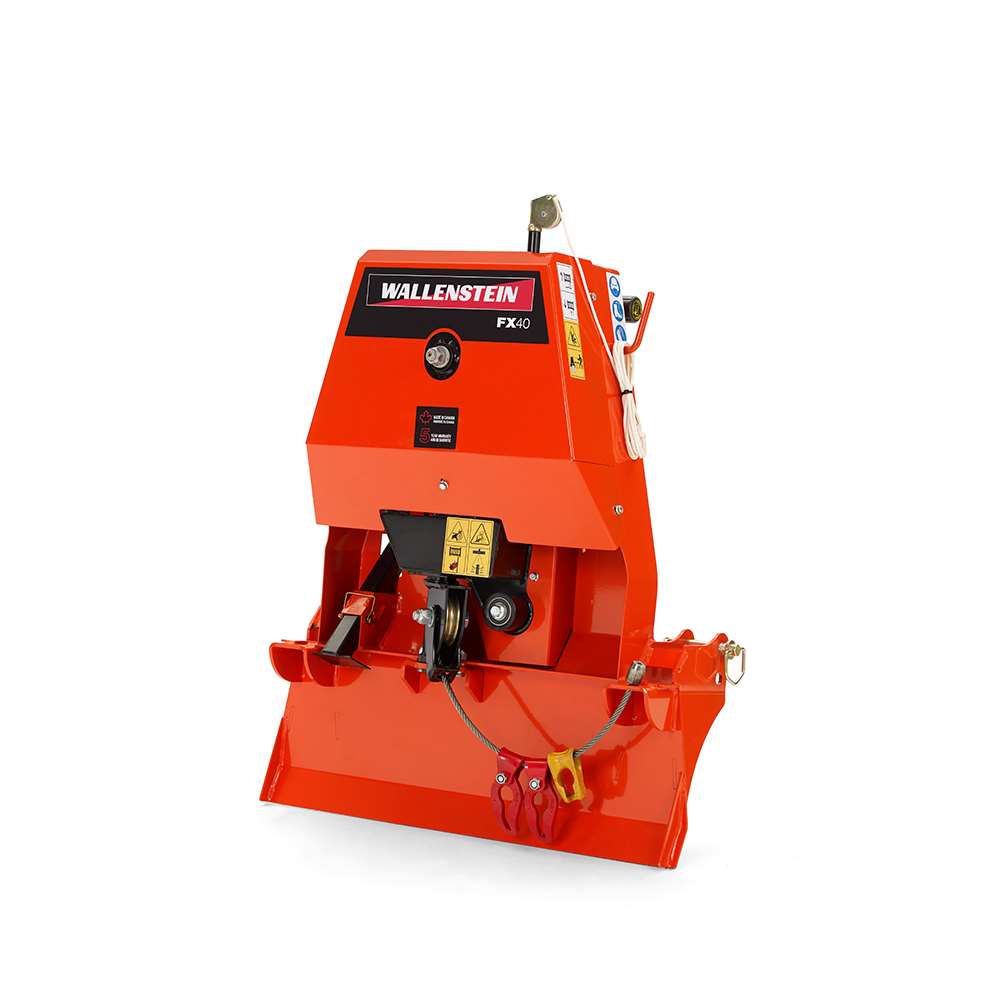

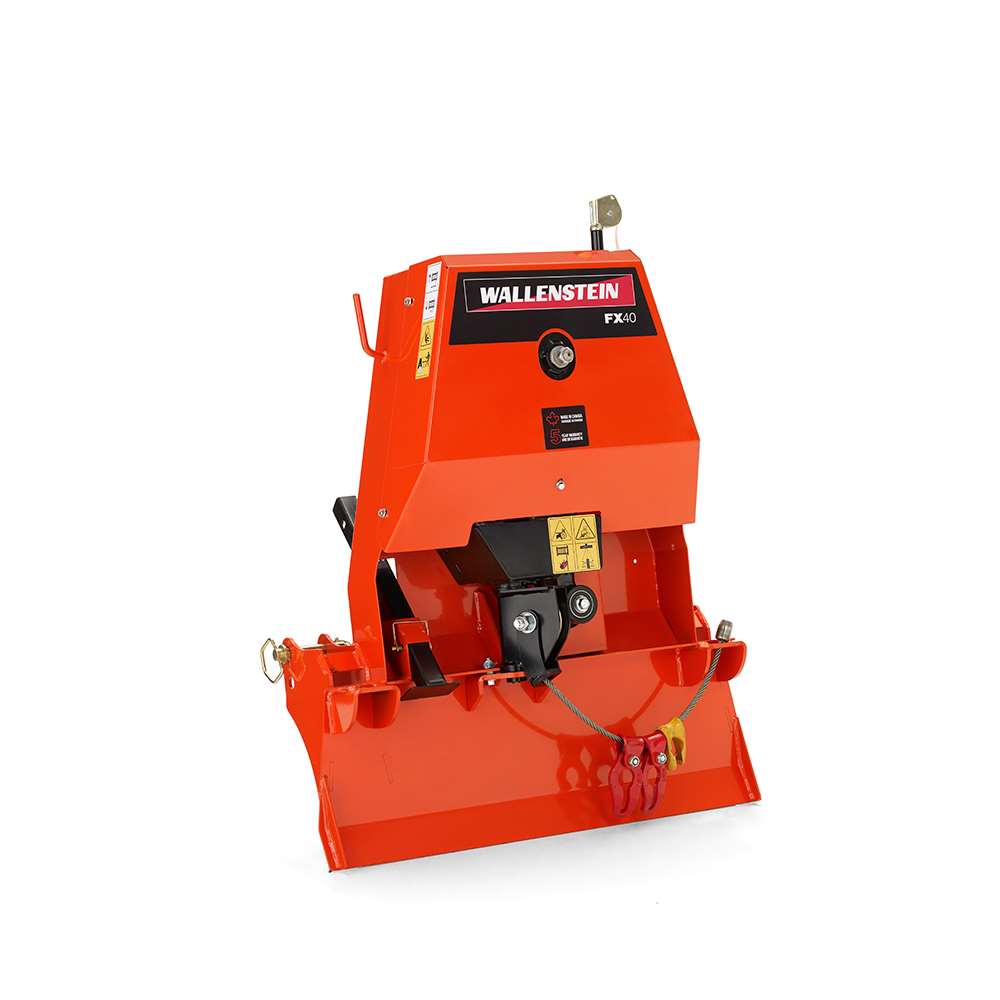

Wallenstein FX40 PTO Skidding Winch

SKU: FX40 Category: All Attachments
Pricing available by quote.
Financing available. Learn more
CALL NOW (866) 608-5565

Final fitment, freight, lead time, and order details are confirmed by Region Equipment before completion.

Wallenstein · Skidding Winch

Product details

Overview

The FX40 uses tractor PTO power to retrieve logs with manual winch control.

  • PTO-driven mechanical winch with a dry-disc clutch.
  • Steel winch cable supplied for log retrieval.
  • Two choker chains and two sliders support log connection.

Applications

  • Forestry & Mulching
  • Land Clearing

Model & setup

Model / SKU
FX40
Equipment type
Tractor
Mounting system
Cat I

Your quote includes this model. We confirm the required mounting, connections and options for your application.

Specifications

Performance & operation

Cable Type
Steel
Pulling Capacity
4000 lb (1814 kg)
Winch Type
Mechanical, Dry Disc Clutch
Line Speed
103 - 290 ft/min (31 - 88 m/min)

Power & connections

Engine HP Range
12 - 30
PTO Input Speed
540 rpm
Mounting System
Cat I

Dimensions & construction

Cable Length
165' (50 m)
Cable Diameter
3/8" (10 mm)
PTO Height
16" (41 cm)
Total Weight
280 lb (127 kg)
Dimensions (LxWxH)
17" x 36" x 45" (43 cm x 91 cm x 114 cm)

Included equipment

Choker Chains
2

Confirm host-machine capacity, mounting arrangement and applicable hydraulic or PTO requirements before ordering. Listed mounting options require configuration confirmation.

Manuals & documents

Download ManualManufacturer Support

Configuration, installation & support

Configuration & Installation
  • Confirm hitch fit, tractor stability and PTO shaft length before setup. Use the supplied guarding and model-specific winching procedures.
Warranty
  • Manufacturer limited warranty: five years for consumer use or two years for commercial/rental use, subject to original-purchaser eligibility, maintenance and exclusions.
