Wallenstein FX140 1

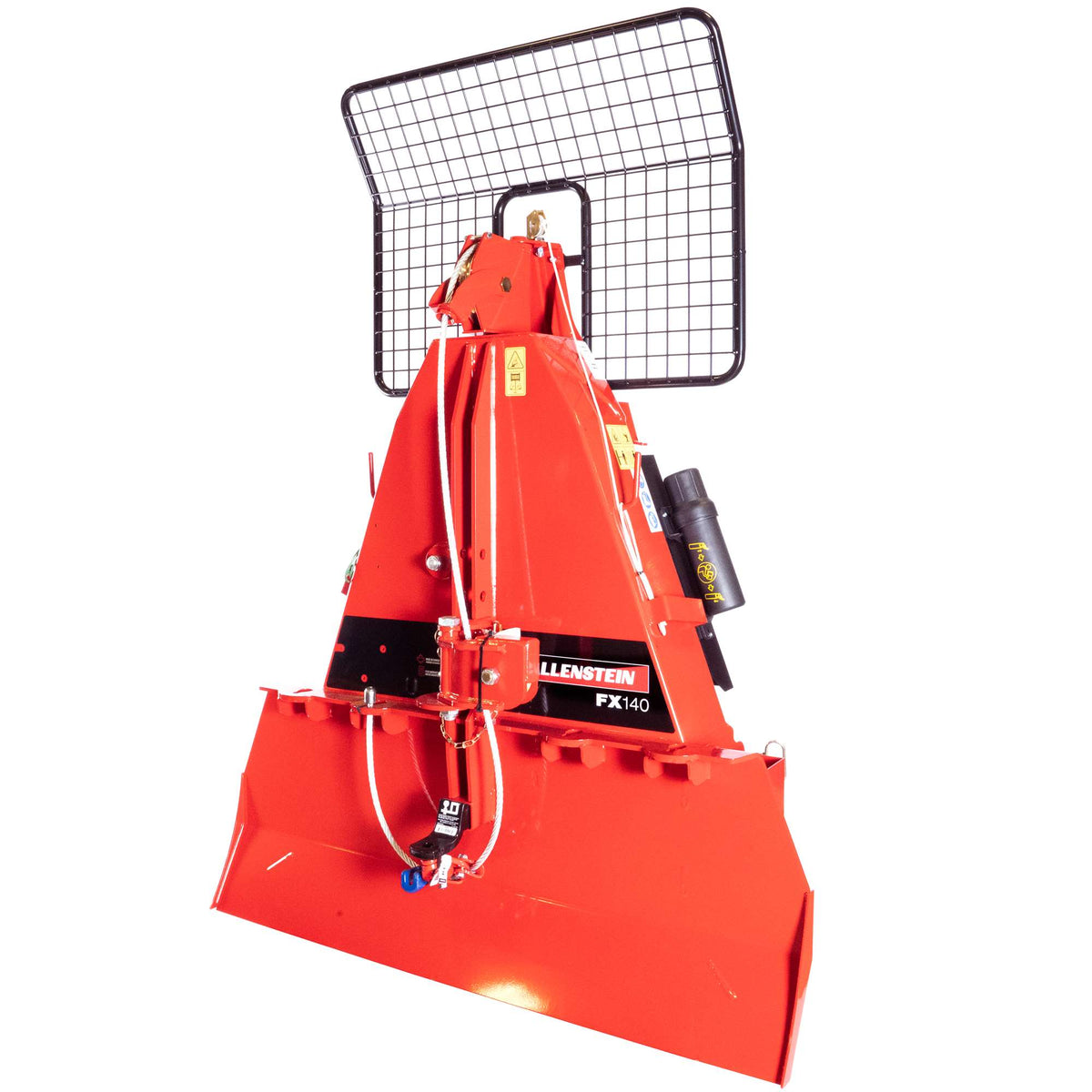

Wallenstein FX140 PTO Skidding Winch

SKU: FX140 Category: All Attachments
Pricing available by quote.
Financing available. Learn more
CALL NOW (866) 608-5565

Final fitment, freight, lead time, and order details are confirmed by Region Equipment before completion.

Wallenstein · Skidding Winch

Product details

Overview

The FX140 uses tractor PTO power to retrieve logs with manual winch control.

  • PTO-driven mechanical winch with a dry-disc clutch.
  • Steel winch cable supplied for log retrieval.
  • Two choker chains and two sliders support log connection.

Applications

  • Forestry & Mulching
  • Land Clearing

Model & setup

Model / SKU
FX140
Equipment type
Tractor
Mounting system
Cat II

Your quote includes this model. We confirm the required mounting, connections and options for your application.

Specifications

Performance & operation

Cable Type
Steel
Pulling Capacity
14000 lbs (6350 kg)
Winch Type
Mechanical, Dry Disc Clutch
Line Speed
98 - 246 ft-min (30 - 75 m/min)

Power & connections

Engine HP Range
80 - 120
PTO Input Speed
540 rpm
Mounting System
Cat II

Dimensions & construction

Cable Length
165' (50 m)
Cable Diameter
1/2" (13 mm)
PTO Height
22" (56 cm)
Total Weight
898 lb (407 kg)
Dimensions (LxWxH)
28" x 59" x 80" (71 cm x 150 cm x 203 cm)

Included equipment

Choker Chains
2

Confirm host-machine capacity, mounting arrangement and applicable hydraulic or PTO requirements before ordering. Listed mounting options require configuration confirmation.

Manuals & documents

Download ManualManufacturer Support

Configuration, installation & support

Configuration & Installation
  • Confirm hitch fit, tractor stability and PTO shaft length before setup. Use the supplied guarding and model-specific winching procedures.
Warranty
  • Manufacturer limited warranty: five years for consumer use or two years for commercial/rental use, subject to original-purchaser eligibility, maintenance and exclusions.
