Wallenstein FX110S 1

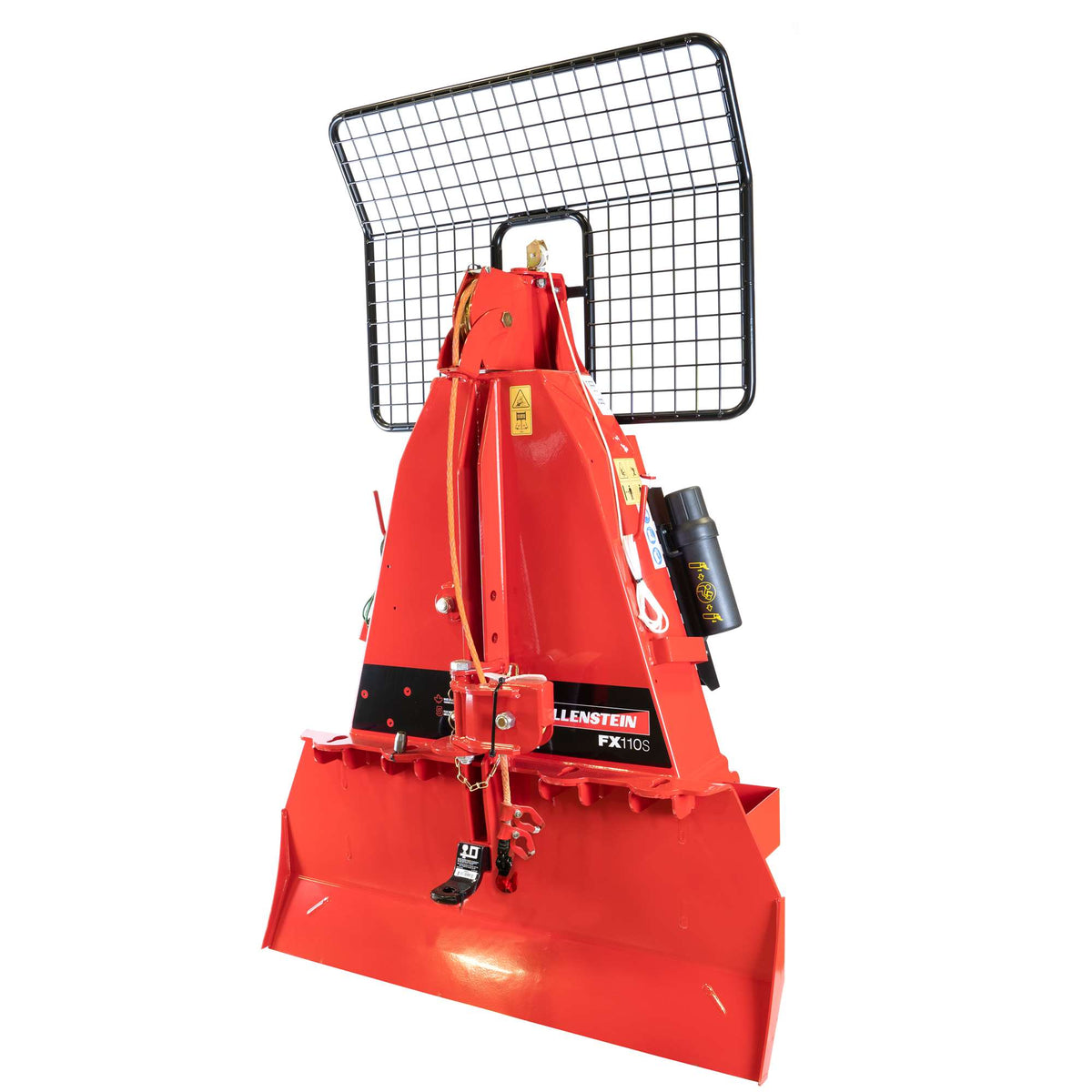

Wallenstein FX110S PTO Skidding Winch

SKU: FX110S Category: All Attachments
Pricing available by quote.
Financing available. Learn more
CALL NOW (866) 608-5565

Final fitment, freight, lead time, and order details are confirmed by Region Equipment before completion.

Wallenstein · Skidding Winch

Product details

Overview

The FX110S uses tractor PTO power to retrieve logs with manual winch control.

  • PTO-driven mechanical winch with a dry-disc clutch.
  • Synthetic rope supplied for log retrieval.
  • Two choker chains and two sliders support log connection.

Applications

  • Forestry & Mulching
  • Land Clearing

Model & setup

Model / SKU
FX110S
Equipment type
Tractor
Mounting system
Category I / II three-point hitch

Your quote includes this model. We confirm the required mounting, connections and options for your application.

Specifications

Performance & operation

Cable Type
Synthetic Rope
Pulling Capacity
11000 lbs (4989 kg)
Winch Type
Mechanical, Dry Disc Clutch
Line Speed
98 - 253 ft-min (30 - 77 m/min)

Power & connections

Engine HP Range
50 - 90
PTO Input Speed
540 rpm
Mounting System
Category I / II three-point hitch

Dimensions & construction

Cable Length
200' (60 m)
Cable Diameter
1/2" (13 mm)
PTO Height
21" (53 cm)
Total Weight
796 lb (361 kg)
Dimensions (LxWxH)
28" x 51" x 79" (71 cm x 130 cm x 201 cm)

Included equipment

Choker Chains
2

Confirm host-machine capacity, mounting arrangement and applicable hydraulic or PTO requirements before ordering. Listed mounting options require configuration confirmation.

Manuals & documents

Download ManualManufacturer Support

Configuration, installation & support

Configuration & Installation
  • Confirm hitch fit, tractor stability and PTO shaft length before setup. Use the supplied guarding and model-specific winching procedures.
  • Connect synthetic rope through an approved choker; do not wrap the winch rope directly around a log.
Warranty
  • Manufacturer limited warranty: five years for consumer use or two years for commercial/rental use, subject to original-purchaser eligibility, maintenance and exclusions.

Equipment Expertise

Guidance on model selection and equipment setup

Leading Manufacturers

Equipment backed by manufacturer documentation

Delivery Coordination

Freight planning for your delivery location

Installation & Support

Setup, commissioning and ongoing service support
