Wallenstein BXM42 1

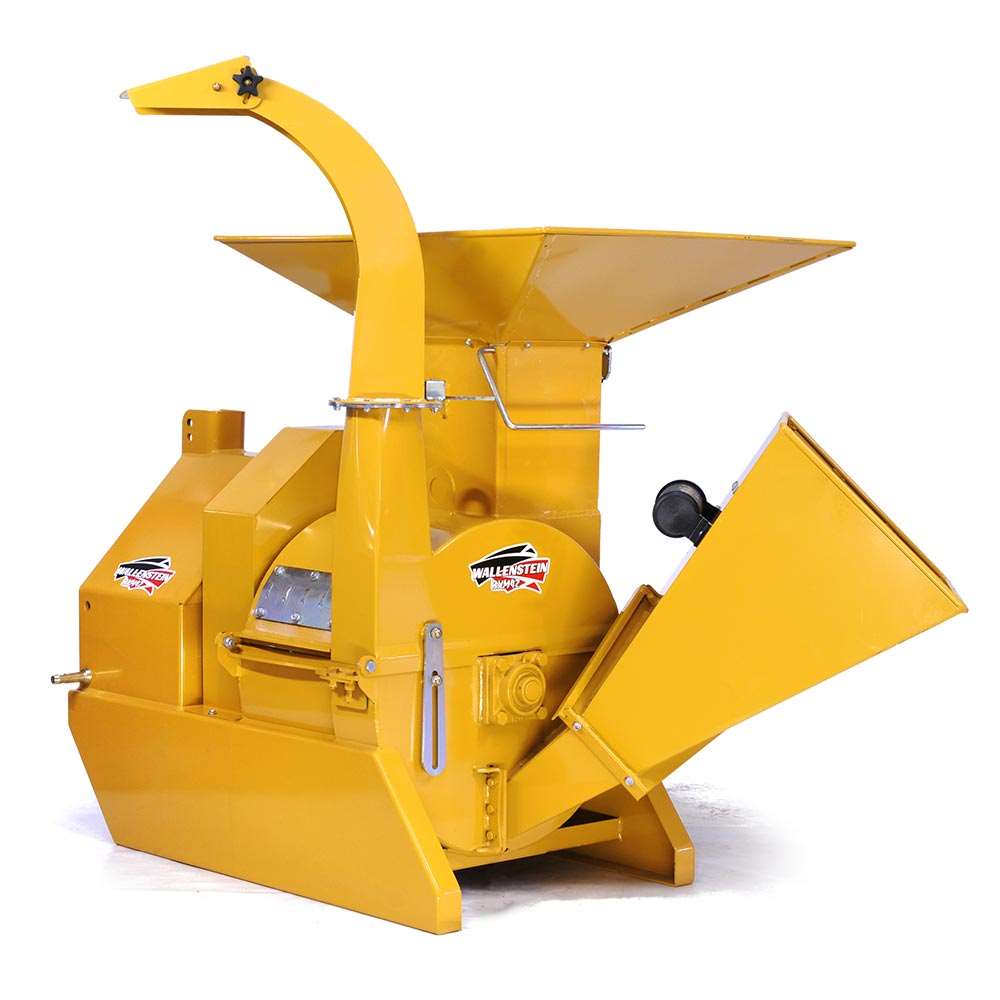

Wallenstein BXM42 PTO Chipper / Shredder

SKU: BXM42 Category: Agriculture & Turf Attachments
Pricing available by quote.
Financing available. Learn more
CALL NOW (866) 608-5565

Final fitment, freight, lead time, and order details are confirmed by Region Equipment before completion.

Wallenstein · Chipper / Shredder

Product details

Overview

The BXM42 chips and shreds suitable woody material using tractor PTO power.

  • Separate chipper and shredder inlets process different material sizes.
  • Adjustable chute directs discharged material.
  • Reversible rotor knives support wear servicing.

Applications

  • Forestry & Mulching
  • Land Clearing
  • Agriculture & Turf

Model & setup

Model / SKU
BXM42
Equipment type
Tractor
Mounting system
Cat I, iMatch™ & Quick Hitch Compatible

Your quote includes this model. We confirm the required mounting, connections and options for your application.

Specifications

Performance & operation

Feed System
Gravity
Chipping Capacity
4" (10 cm)
Shredding Capacity
2" (5 cm)
Chipper Infeed Opening
4" x 10" (10 cm x 25 cm)
Chipper Type
Disc
Shredder Type
Hammer Mill
Chipper Hopper Opening
18" x 18" (45 cm x 45 cm)
Shredder Hopper Opening
33" x 40" (84 cm x 102 cm)
Shredder Housing Opening
11" x 11" (27 cm x 27 cm)
Number of Chipper Knives
2
Number of Shredder Knives
30
Discharge Chute Rotation
360°
Rotor Speed
1200

Power & connections

Engine HP Range
30 - 85
Drive System
PTO Belt Drive
PTO Input Speed
540
Mounting System
Cat I, iMatch™ & Quick Hitch Compatible

Dimensions & construction

Rotor Diameter
25" (64 cm)
Rotor Weight
170 lbs (77 kg)
Discharge Chute Height
62" (158 cm)
PTO Height
27" (69 cm)
Total Weight
800 lb (363 kg)
Dimensions (LxWxH)
72" x 44" x 62" (183 cm x 112 cm x 158 cm)

Confirm three-point hitch fit, PTO shaft setup and tractor suitability before ordering. Engine horsepower range is not a PTO horsepower rating.

Manuals & documents

Download ManualManufacturer Support

Configuration, installation & support

Configuration & Installation
  • Confirm tractor hitch category, lift capacity, PTO configuration and driveline length before connecting the chipper.
  • Follow the applicable serial-specific manual for shaft sizing, guarding, feed operation and knife maintenance.
Warranty
  • Manufacturer limited warranty: five years for consumer use or two years for commercial/rental use. Original-purchaser eligibility, maintenance requirements and exclusions apply.

Equipment Expertise

Guidance on model selection and equipment setup

Leading Manufacturers

Equipment backed by manufacturer documentation

Delivery Coordination

Freight planning for your delivery location

Installation & Support

Setup, commissioning and ongoing service support
