Wallenstein BX52S 1

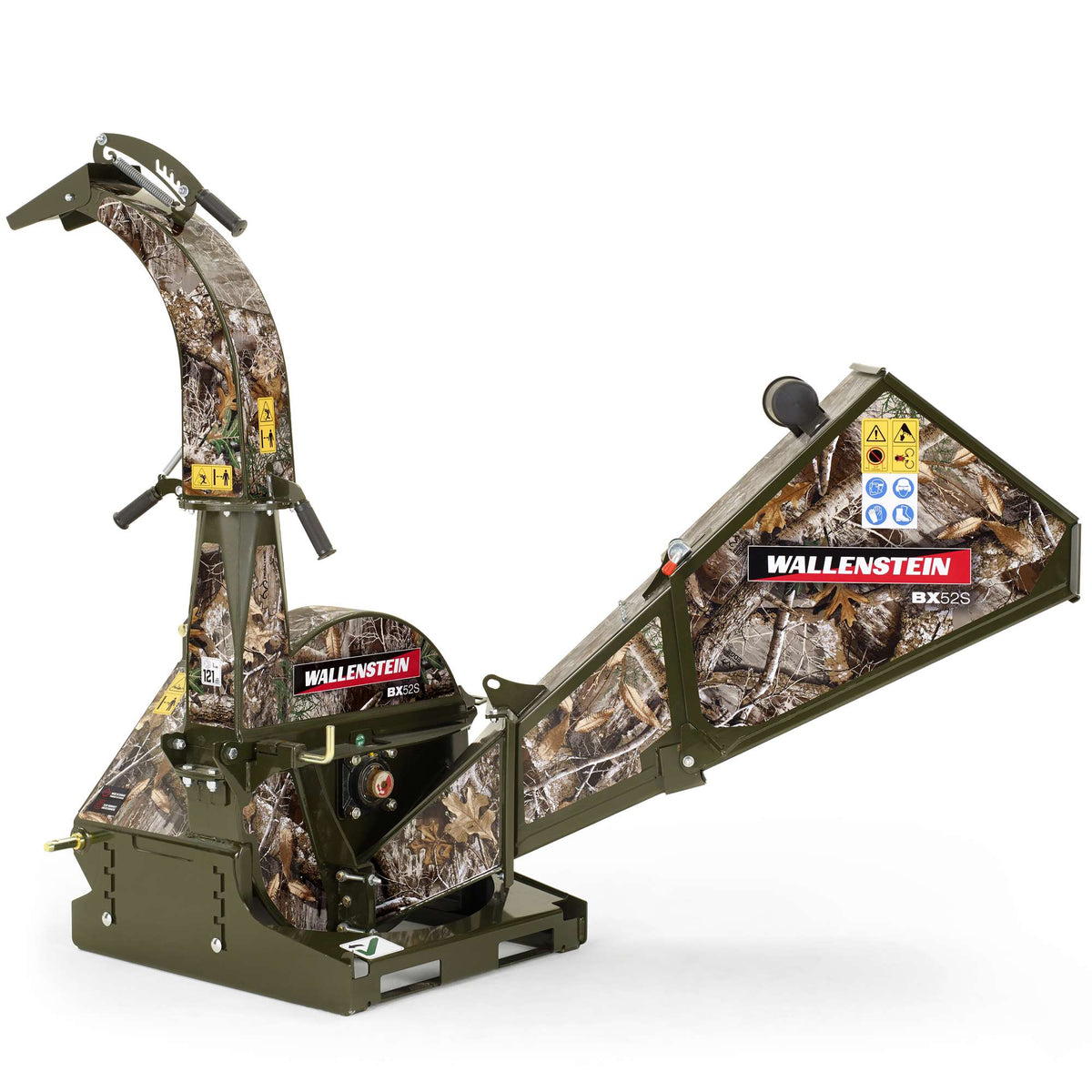

Wallenstein BX52S PTO Wood Chipper

SKU: BX52S Category: All Attachments
Pricing available by quote.
Financing available. Learn more
CALL NOW (866) 608-5565

Final fitment, freight, lead time, and order details are confirmed by Region Equipment before completion.

Wallenstein · Wood Chipper

Product details

Overview

The BX52S chips suitable woody material using tractor PTO power.

  • Gravity feeding supplies a PTO-driven chipping rotor.
  • Adjustable chute directs discharged material.
  • Reversible rotor knives support wear servicing.

Applications

  • Forestry & Mulching
  • Land Clearing

Model & setup

Model / SKU
BX52S
Equipment type
Tractor
Mounting system
Cat I, iMatch™ & Quick Hitch Compatible

Your quote includes this model. We confirm the required mounting, connections and options for your application.

Specifications

Performance & operation

Feed System
Gravity
Chipping Capacity
5" (13 cm)
Chipper Infeed Opening
5" x 10" (13 cm x 26 cm)
Chipper Type
Disc
Chipper Hopper Opening
20" x 20" (51 cm x 51 cm)
Number of Chipper Knives
4
Discharge Chute Rotation
360°
Rated RPM
540 - 1000

Power & connections

Engine HP Range
22 - 55
Drive System
PTO Direct Drive
Mounting System
Cat I, iMatch™ & Quick Hitch Compatible

Dimensions & construction

Rotor Diameter
25” (64 cm)
Rotor Weight
125 lbs (57 kg)
Discharge Chute Height
66" (168 cm)
PTO Height
13" - 19" (34 cm - 42 cm)
Total Weight
505 lb (229 kg)
Dimensions Open (LxWxH)
61" x 64" x 66" (155 cm x 163 cm x 168 cm)
Dimensions Folded (LxWxH)
43" x 42" x 66" (109 cm x 107 cm x 168 cm)

Confirm host-machine capacity, mounting arrangement and applicable hydraulic or PTO requirements before ordering. Listed mounting options require configuration confirmation.

Manuals & documents

Download ManualManufacturer Support

Configuration, installation & support

Configuration & Installation
  • Confirm tractor hitch category, lift capacity, PTO configuration and driveline length before connecting the chipper.
  • Follow the applicable serial-specific manual for shaft sizing, guarding, feed operation and knife maintenance.
Warranty
  • Manufacturer limited warranty: five years for consumer use or two years for commercial/rental use. Original-purchaser eligibility, maintenance requirements and exclusions apply.
