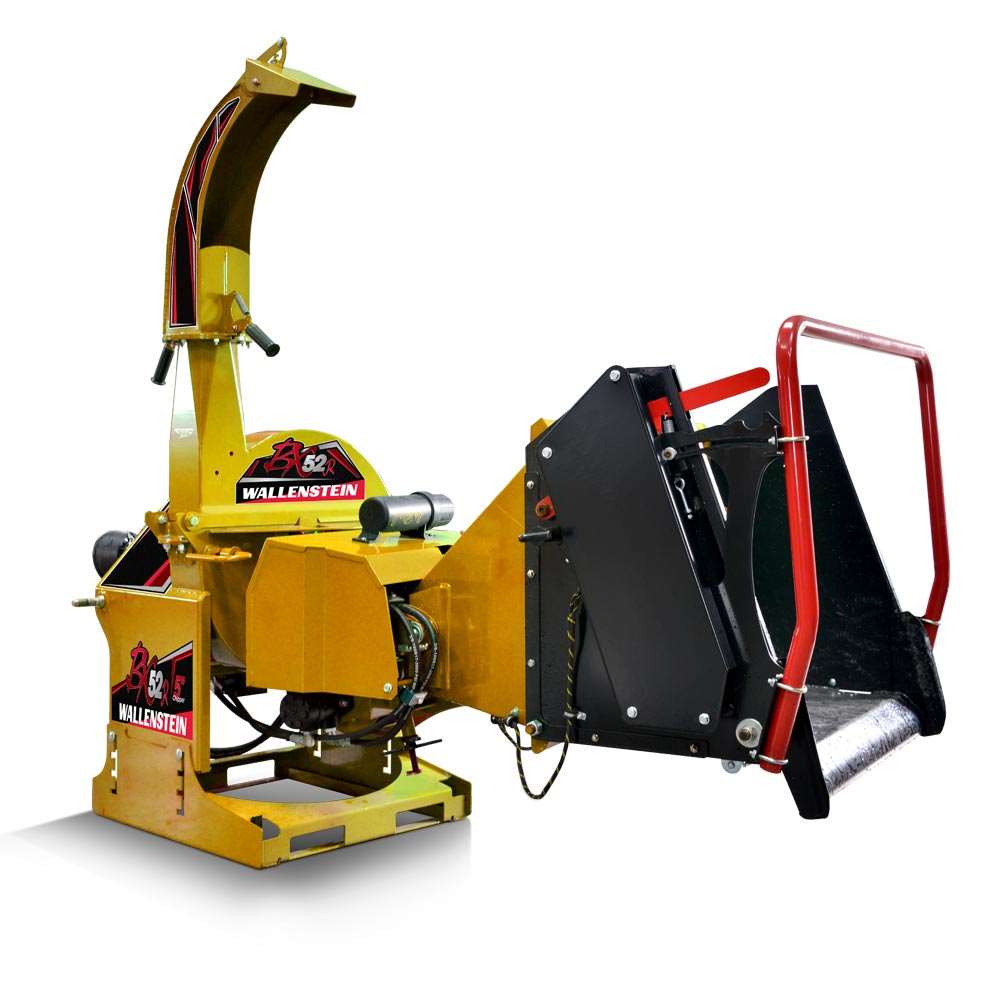

Wallenstein BX52RI

Wallenstein BX52RI PTO Wood Chipper

SKU: BX52RI Category: All Attachments
Pricing available by quote.
Financing available. Learn more
CALL NOW (866) 608-5565

Final fitment, freight, lead time, and order details are confirmed by Region Equipment before completion.

Wallenstein · Wood Chipper

Product details

Overview

The BX52RI chips suitable woody material using tractor PTO power.

  • Dual hydraulic rollers control material feeding.
  • Adjustable chute directs discharged material.
  • Reversible rotor knives support wear servicing.
  • P3 Pulse monitors and controls material feeding.

Applications

  • Forestry & Mulching
  • Land Clearing

Model & setup

Model / SKU
BX52RI
Equipment type
Tractor
Mounting system
Cat I, iMatch™ & Quick Hitch Compatible

Your quote includes this model. We confirm the required mounting, connections and options for your application.

Specifications

Performance & operation

Feed System
Dual Hydraulic Roller
Chipping Capacity
5" (13 cm)
Chipper Infeed Opening
5" x 10" (13 cm x 26 cm)
On-Board Intelligence
P3 Pulse™
Chipper Type
Disc
Chipper Hopper Opening
35" x 30" (89 cm x 76 cm)
Number of Chipper Knives
4
Discharge Chute Rotation
360°
Rated RPM
540 - 1000

Power & connections

Engine HP Range
30 - 55
Drive System
PTO Direct Drive
Required Hydraulic Flow
3 - 6 gpm (12 - 23 lpm)
Mounting System
Cat I, iMatch™ & Quick Hitch Compatible

Dimensions & construction

Rotor Diameter
25" (63 cm)
Rotor Weight
125 lbs (57 kg)
Discharge Chute Height
74" (188 cm)
PTO Height
22" - 27" (55 cm - 69 cm)
Total Weight
845 lb (383 kg)
Dimensions Open (LxWxH)
80" x 67" x 74" (204 cm x 171 cm x 188 cm)
Dimensions Folded (LxWxH)
62" x 61" x 74" (158 cm x 155 cm x 188 cm)

Confirm host-machine capacity, mounting arrangement and applicable hydraulic or PTO requirements before ordering. Listed mounting options require configuration confirmation.

Manuals & documents

Download ManualManufacturer Support

Configuration, installation & support

Configuration & Installation
  • Confirm tractor hitch category, lift capacity, PTO configuration and driveline length before connecting the chipper.
  • Follow the applicable serial-specific manual for shaft sizing, guarding, feed operation and knife maintenance.
  • Supply the separate hydraulic feed circuit required by the exact model; the PTO drives the chipping rotor.
Warranty
  • Manufacturer limited warranty: five years for consumer use or two years for commercial/rental use. Original-purchaser eligibility, maintenance requirements and exclusions apply.
