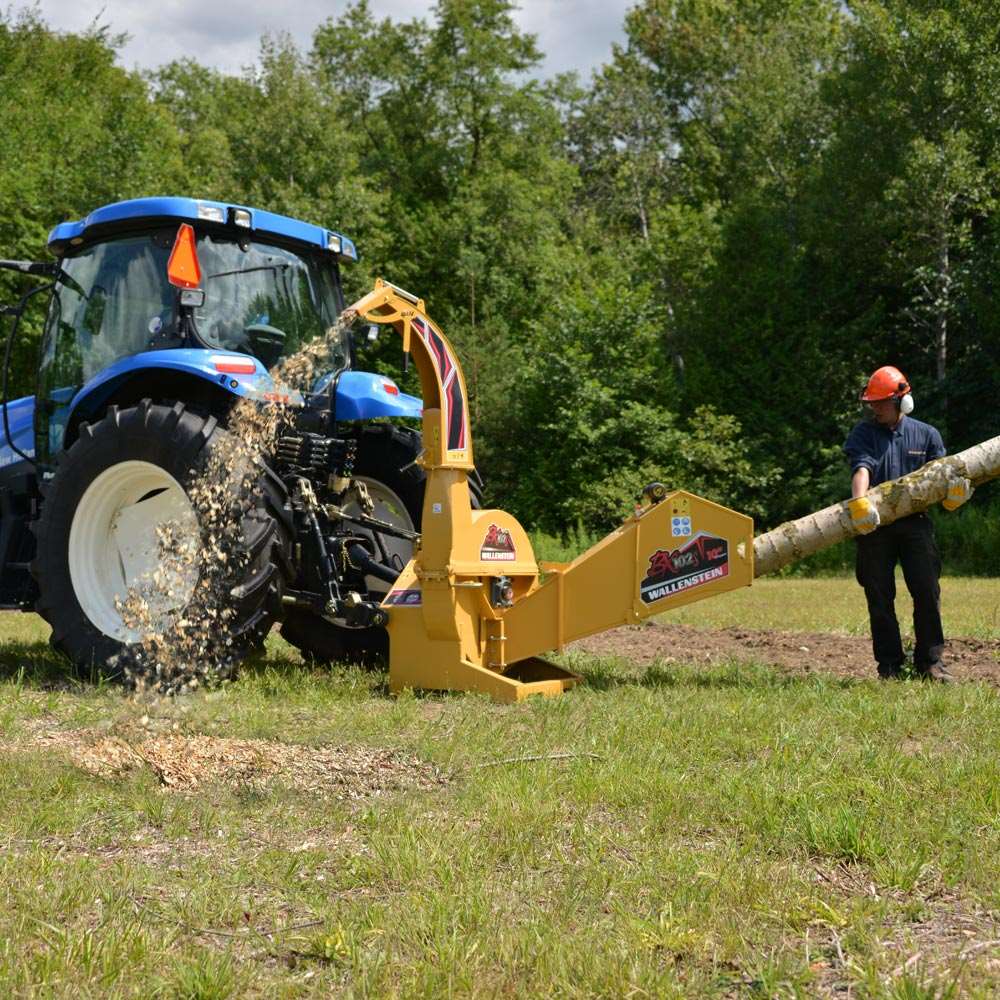

Wallenstein BX102S

Wallenstein BX102S PTO Wood Chipper

SKU: BX102S Category: All Attachments
Pricing available by quote.
Financing available. Learn more
CALL NOW (866) 608-5565

Final fitment, freight, lead time, and order details are confirmed by Region Equipment before completion.

Wallenstein · Wood Chipper

Product details

Overview

The BX102S chips suitable woody material using tractor PTO power.

  • Gravity feeding supplies a PTO-driven chipping rotor.
  • Adjustable chute directs discharged material.
  • Reversible rotor knives support wear servicing.

Applications

  • Forestry & Mulching
  • Land Clearing

Model & setup

Model / SKU
BX102S
Equipment type
Tractor
Mounting system
Cat II, iMatch™ & Quick Hitch Compatible

Your quote includes this model. We confirm the required mounting, connections and options for your application.

Specifications

Performance & operation

Feed System
Gravity
Chipping Capacity
10" (25 cm)
Chipper Infeed Opening
10" x 15" (25 cm x 38 cm)
Chipper Type
Disc
Chipper Hopper Opening
25" x 26" (63 cm x 65 cm)
Number of Chipper Knives
4
Discharge Chute Rotation
360°
Rated RPM
540 - 1000

Power & connections

Engine HP Range
80 - 120
Drive System
PTO Direct Drive
Mounting System
Cat II, iMatch™ & Quick Hitch Compatible

Dimensions & construction

Rotor Diameter
36" (91 cm)
Rotor Weight
400 lbs (181 kg)
Discharge Chute Height
89" (226 cm)
PTO Height
23" (58 cm)
Total Weight
1143 lb (518 kg)
Dimensions Open (LxWxH)
71" x 71" x 89" (180 cm x 180 cm x 226 cm)
Dimensions Folded (LxWxH)
61" x 58" x 89" (155 cm x 147 cm x 226 cm)

Confirm host-machine capacity, mounting arrangement and applicable hydraulic or PTO requirements before ordering. Listed mounting options require configuration confirmation.

Manuals & documents

Download ManualManufacturer Support

Configuration, installation & support

Configuration & Installation
  • Confirm tractor hitch category, lift capacity, PTO configuration and driveline length before connecting the chipper.
  • Follow the applicable serial-specific manual for shaft sizing, guarding, feed operation and knife maintenance.
Warranty
  • Manufacturer limited warranty: five years for consumer use or two years for commercial/rental use. Original-purchaser eligibility, maintenance requirements and exclusions apply.
