Wallenstein BX102RPI

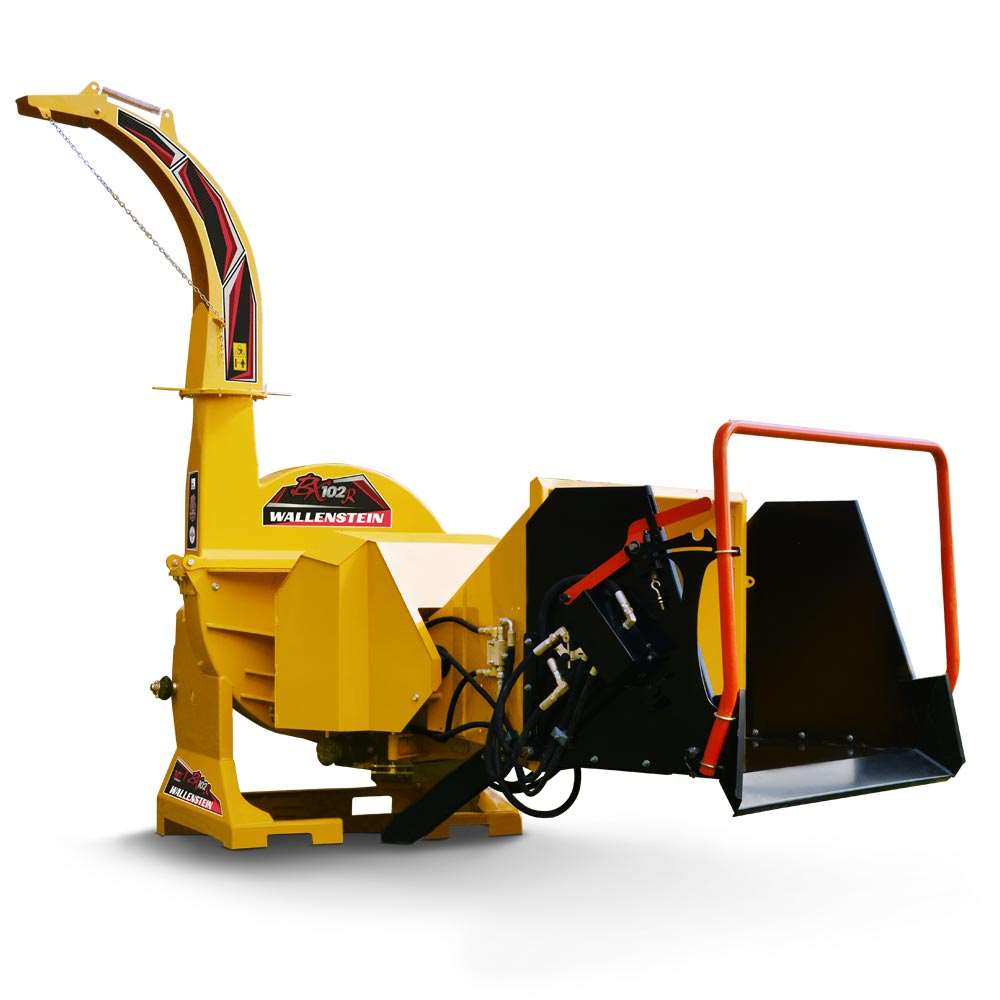

Wallenstein BX102RPI PTO Wood Chipper

SKU: BX102RPI Category: All Attachments
Pricing available by quote.
Financing available. Learn more
CALL NOW (866) 608-5565

Final fitment, freight, lead time, and order details are confirmed by Region Equipment before completion.

Wallenstein · Wood Chipper

Product details

Overview

The BX102RPI chips suitable woody material using tractor PTO power.

  • Dual hydraulic rollers control material feeding.
  • Adjustable chute directs discharged material.
  • Reversible rotor knives support wear servicing.
  • P3 Pulse monitors and controls material feeding.
  • Hydraulic winch assists material handling at the infeed.

Applications

  • Forestry & Mulching
  • Land Clearing

Model & setup

Model / SKU
BX102RPI
Equipment type
Tractor
Mounting system
Cat II, iMatch™ & Quick Hitch Compatible

Your quote includes this model. We confirm the required mounting, connections and options for your application.

Specifications

Performance & operation

Feed System
Dual Hydraulic Roller
Chipping Capacity
10" (25 cm)
Chipper Infeed Opening
10" x 17" (25 cm x 43 cm)
On-Board Intelligence
P3 Pulse™
Chipper Type
Disc
Chipper Hopper Opening
30" x 42" (76 cm x 107 cm)
Number of Chipper Knives
4
Discharge Chute Rotation
360°
Winch Pulling Capacity
1200 lbs (545 kg)
Rated RPM
540 - 1000

Power & connections

Engine HP Range
75 - 120
Drive System
PTO Direct Drive
Required Hydraulic Flow
4 - 8 gpm (15 - 30 lpm)
Mounting System
Cat II, iMatch™ & Quick Hitch Compatible

Dimensions & construction

Rotor Diameter
36” (92 cm)
Rotor Weight
425 lbs (193 kg)
Discharge Chute Height
100" (253 cm)
Winch Rope Length
50' (15 m)
Winch Rope Diameter
1/4" (6 mm)
PTO Height
34" (86 cm)
Total Weight
2100 lb (953 kg)
Dimensions Open (LxWxH)
108" x 85" x 100" (273 cm x 215 cm x 253 cm)
Dimensions Folded (LxWxH)
85" x 71" x 100" (215 cm x 180 cm x 253 cm)

Confirm host-machine capacity, mounting arrangement and applicable hydraulic or PTO requirements before ordering. Listed mounting options require configuration confirmation.

Manuals & documents

Download ManualManufacturer Support

Configuration, installation & support

Configuration & Installation
  • Confirm tractor hitch category, lift capacity, PTO configuration and driveline length before connecting the chipper.
  • Follow the applicable serial-specific manual for shaft sizing, guarding, feed operation and knife maintenance.
  • Supply the separate hydraulic feed circuit required by the exact model; the PTO drives the chipping rotor.
Warranty
  • Manufacturer limited warranty: five years for consumer use or two years for commercial/rental use. Original-purchaser eligibility, maintenance requirements and exclusions apply.
