Wallenstein BX102R

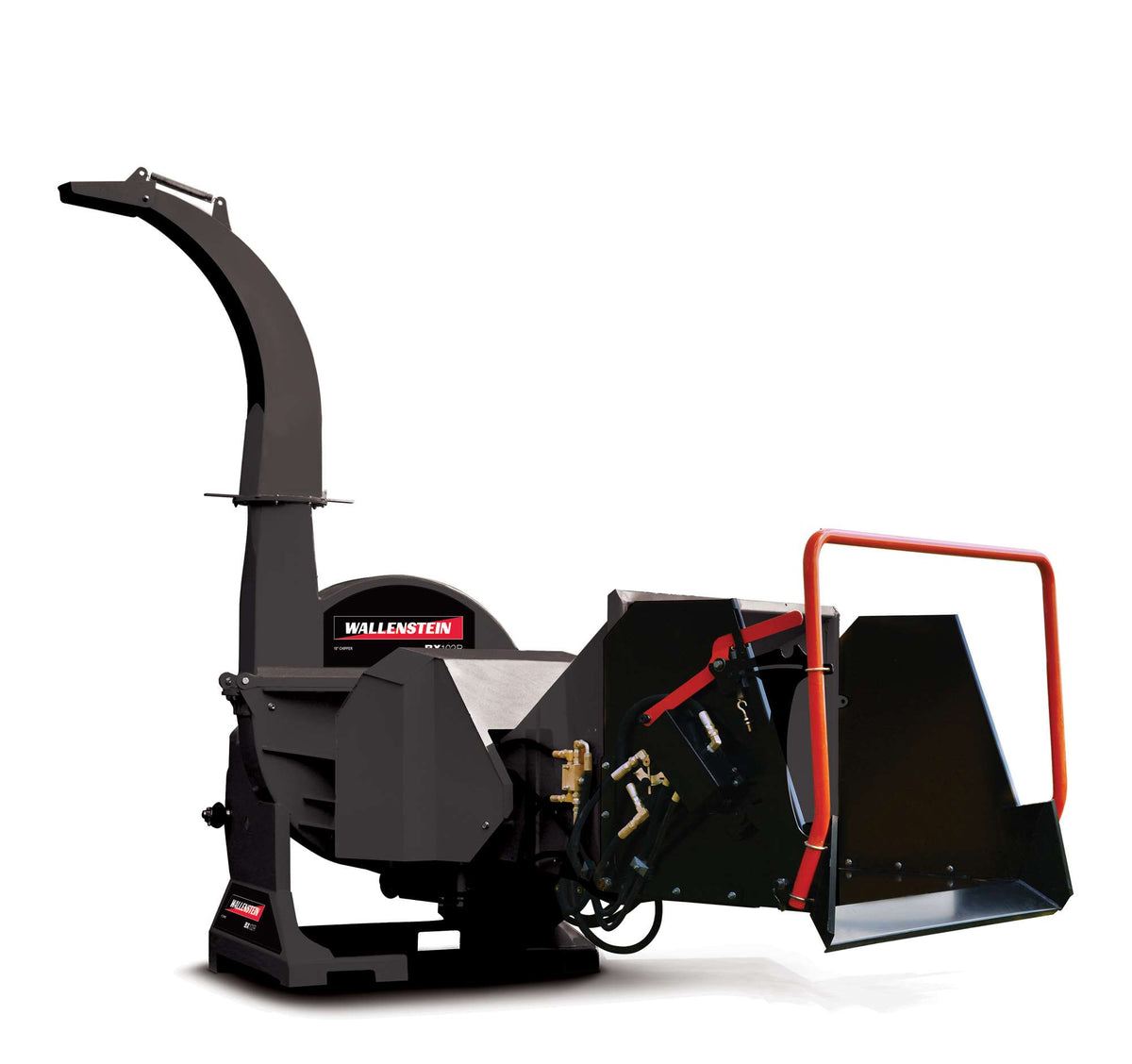

Wallenstein BX102R PTO Wood Chipper

SKU: BX102R Category: All Attachments
Pricing available by quote.
Financing available. Learn more
CALL NOW (866) 608-5565

Final fitment, freight, lead time, and order details are confirmed by Region Equipment before completion.

Wallenstein · Wood Chipper

Product details

Overview

The BX102R chips suitable woody material using tractor PTO power.

  • Dual hydraulic rollers control material feeding.
  • Adjustable chute directs discharged material.
  • Reversible rotor knives support wear servicing.

Applications

  • Forestry & Mulching
  • Land Clearing

Model & setup

Model / SKU
BX102R
Equipment type
Tractor
Mounting system
Cat II, iMatch™ & Quick Hitch Compatible

Your quote includes this model. We confirm the required mounting, connections and options for your application.

Specifications

Performance & operation

Feed System
Dual Hydraulic Roller
Chipping Capacity
10" (25 cm)
Chipper Infeed Opening
10" x 17" (25 cm x 43 cm)
Chipper Type
Disc
Chipper Hopper Opening
30" x 42" (76 cm x 107 cm)
Number of Chipper Knives
4
Discharge Chute Rotation
360°
Rated RPM
540 - 1000

Power & connections

Engine HP Range
80 - 120
Drive System
PTO Direct Drive
Required Hydraulic Flow
4 - 8 gpm (15 - 30 lpm)
Mounting System
Cat II, iMatch™ & Quick Hitch Compatible

Dimensions & construction

Rotor Diameter
36” (92 cm)
Rotor Weight
425 lbs (193 kg)
Discharge Chute Height
100" (253 cm)
PTO Height
34" (86 cm)
Total Weight
1950 lb (885 kg)
Dimensions Open (LxWxH)
108" x 85" x 100" (273 cm x 215 cm x 253 cm)
Dimensions Folded (LxWxH)
85" x 71" x 100" (215 cm x 180 cm x 253 cm)

Confirm host-machine capacity, mounting arrangement and applicable hydraulic or PTO requirements before ordering. Listed mounting options require configuration confirmation.

Manuals & documents

Manufacturer Support

Configuration, installation & support

Configuration & Installation
  • Confirm tractor hitch category, lift capacity, PTO configuration and driveline length before connecting the chipper.
  • Follow the applicable serial-specific manual for shaft sizing, guarding, feed operation and knife maintenance.
  • Supply the separate hydraulic feed circuit required by the exact model; the PTO drives the chipping rotor.
Warranty
  • Manufacturer limited warranty: five years for consumer use or two years for commercial/rental use. Original-purchaser eligibility, maintenance requirements and exclusions apply.
