Machine setup
- Model
- RSS 800
- Carrier type
- Excavator
- Mounting bracket
- Machine-specific; sold separately
Rockscreener RSS 800 Screening Bucket
Pricing available by quote.
Financing available.
Learn more
Final fitment, freight, lead time, and order details are confirmed by Region Equipment before completion.
RockZone Americas
Screening Bucket
Screen suitable rock, soil, and construction material for reuse.
Best for
- Material Handling
- Site Work & Construction
Key specifications
- Excavator class (reference)
- 3–9 tons
- Bucket volume
- 0.33 yd³
- Weight (published)
- 1,320 lb
Matched to your machine. Carrier capacity, hydraulic requirements, and mounting are confirmed before your quote is finalized.
View configuration detailsSpecifications
Carrier & hydraulics
- Excavator class (2026 brochure reference)
- 3–9 tons
- Published oil flow (reference)
- 5 US GPM
- Published oil pressure (reference)
- 1,885 psi
Material processing
- Bucket volume
- 0.33 yd³
- Total volume
- 0.75 yd³
Dimensions & weight
- Screen drum diameter
- 31.5 in
- Screen drum depth
- 19.75 in
- Length
- 71 in
- Width
- 37 in
- Height
- 47 in
- Weight (published)
- 1,320 lb
Model-specific figures follow the RSS 800 column of the North American 2026 RockZone brochure. RSS 800 and RS 800 are separate models. Published oil flow and pressure are reference figures, not a confirmed operating range. Confirm the supplied model, loaded attachment capacity, bracket and circuit settings when quoting.
Documents & video
Features
- Rotating drum separates material on the carrier.
- Exchangeable grids adjust screening size.
- Large hopper supports material processing.
Configuration & fit
Mounting
Available mounting options are assessed for your carrier make and model. Machine-specific mounting bracket is sold separately.

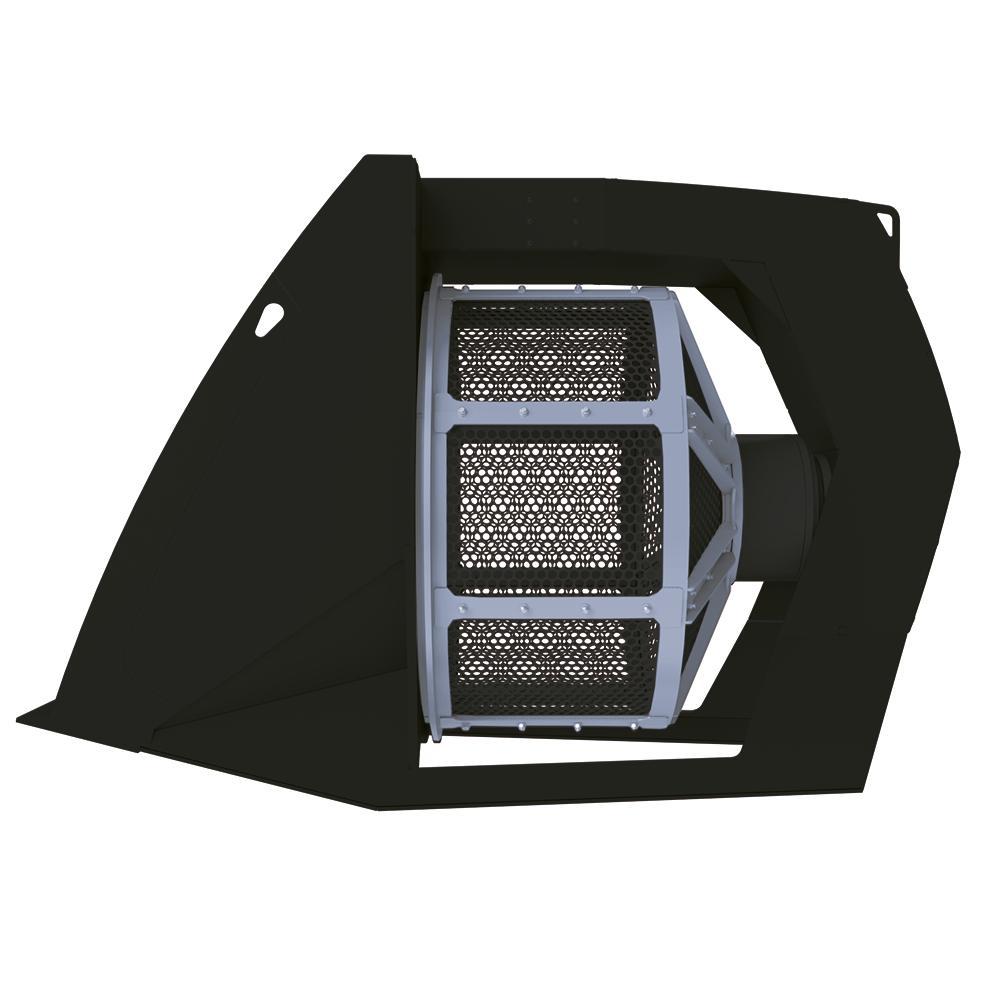

Product imagery
Images illustrate the product series; the quoted model and configuration may differ.
Quoted configuration
The quote confirms the selected attachment, mounting arrangement, availability, and delivery requirements.
Installation & service
- Confirm the excavator bracket, loaded attachment capacity, and model-specific hydraulic requirements.
- Obtain the complete operator manual for the supplied model and serial number before commissioning.
