Machine setup
- Model
- AX20
- Carrier type
- Excavator
- Mounting bracket
- Machine-specific; sold separately
Rockwheel AX20 Axial Drum Cutter
Pricing available by quote.
Financing available.
Learn more
Final fitment, freight, lead time, and order details are confirmed by Region Equipment before completion.
RockZone Americas
Axial Drum Cutter
Cut and grind suitable rock and concrete with a hydraulically powered drum attachment.
Best for
- Site Work & Construction
- Demolition
Key specifications
- Head width (standard)
- 26 in
- Hydraulic Input Power
- 95 hp
- Weight without bracket
- 1,995 lb
Matched to your machine. Carrier capacity, hydraulic requirements, and mounting are confirmed before your quote is finalized.
View configuration detailsSpecifications
Carrier & hydraulics
- Excavator class (reference)
- 17–28 tons
- Hydraulic Input Power
- 95 hp
- Required Flow Rate
- 30–55 GPM
- Maximum operating pressure
- 5800 psi
Cutting performance
- Drum Speed
- 50–100 RPM
- Maximum torque
- 13,206 ft-lb
- Maximum cutting force
- 12,385 lb
- Cutting picks
- 32
Dimensions & weight
- Head width (standard)
- 26 in
- Weight without bracket
- 1,995 lb
Specifications follow the supplied manufacturer documentation. Mount options are assessed for your carrier; final fitment and hydraulic settings are confirmed during quoting.
Documents & video
Features
- Axial drum orientation supports vertical and narrow cuts.
- Hydraulic drive powers the single cutting drum.
Configuration & fit
Mounting
Available mounting options are assessed for your carrier make and model. Machine-specific mounting bracket is sold separately.
Included equipment
Standard purchase package includes cutting picks and hoses. Optional configurations require a separate quote.

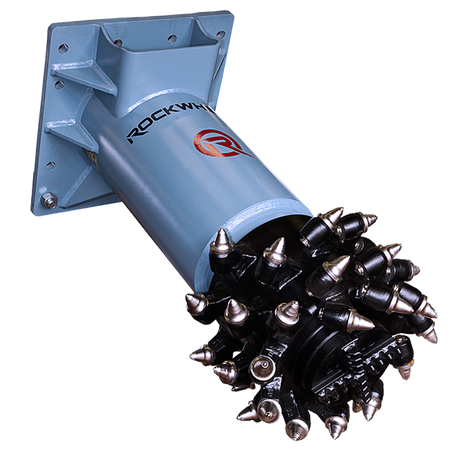

Product imagery
Images illustrate the product series; the quoted model and configuration may differ.
Installation & service
- Obtain installation settings for the exact attachment serial number and carrier; review them again if the carrier changes.
- Qualified personnel must verify flow, relief setting, return pressure, and hydraulic input power before commissioning.
