Machine setup
- Carrier type
- Excavator
- Carrier class
- 5 Ton
- Hydraulic flow
- 10-23 GPM
PROMAC LSM30 Excavator Drum Mulcher
Excavator Drum Mulcher
Pricing available by quote.
Financing available.
Learn more
Final fitment, freight, lead time, and order details are confirmed by Region Equipment before completion.
PROMAC Equipment
Excavator Drum Mulcher
Use the LSM30 for excavator brush and vegetation clearing with a 30 in. cutting width. Match the motor, tooling, and mounting arrangement to the intended carrier and job.
Best for
- Forestry & Mulching
- Land Clearing
Key specifications
- Working width
- 30"
- Drum speed
- 3500 rpm
- Published unit weight
- 750 lb
Fitment review Confirm the carrier's power, lifting capacity, mount, hydraulic circuit and case-drain requirements for the supplied motor before ordering.
Review configurationSpecifications
Working performance
- Working width
- 30"
- Maximum drum speed
- 3500 rpm
Operating requirements
- Minimum carrier weight
- 5 Ton
- Minimum carrier power
- 35 HP
- Hydraulic flow range
- 10-23 GPM
- Maximum hydraulic pressure
- 4000 psi
Equipment details
- Overall width
- 64 in.
- Standard motor
- Axial Piston, Variable
- Published unit weight
- 750 lb
Specifications describe the listed standard configuration in the linked 2026 product sheet. Unit weight and operating requirements vary with the motor, tooling and mount; confirm the supplied configuration before ordering.
Features
- 30 in. cutting width for vegetation clearing.
- Tooth options can be selected for the material and site conditions.
- The drum uses replaceable interlocking segments.
- Compact construction suits confined clearing work.
Configuration & fit
Mounting & connections
An excavator mount, such as pin-grabber or wedge, is included. Mount details must be matched to the carrier. Hoses and couplers are not included. Freight and delivery are quoted separately.

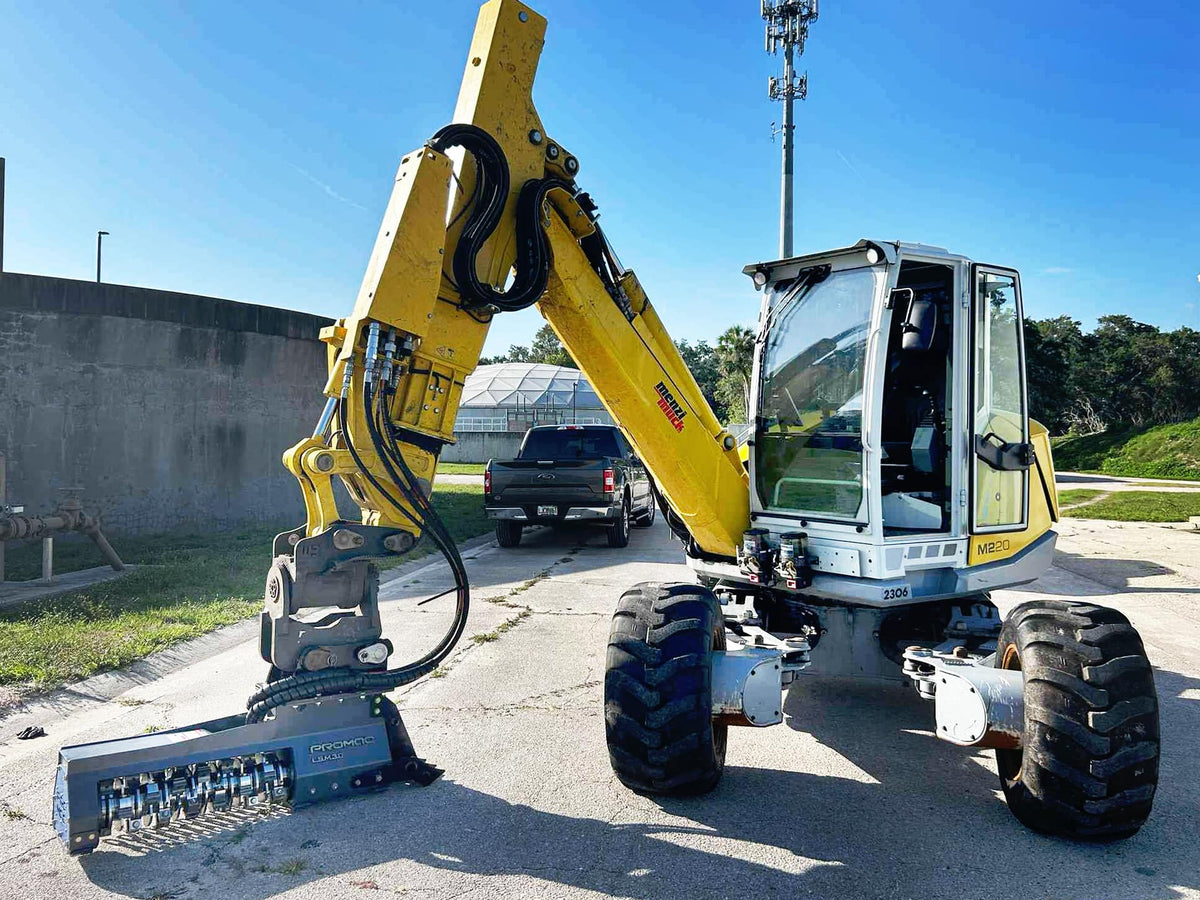

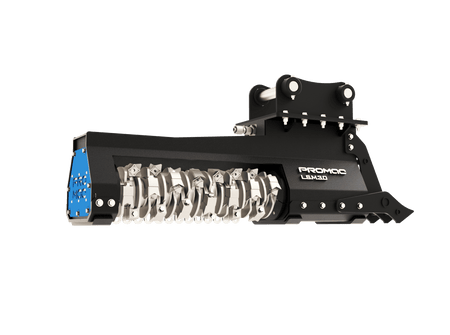

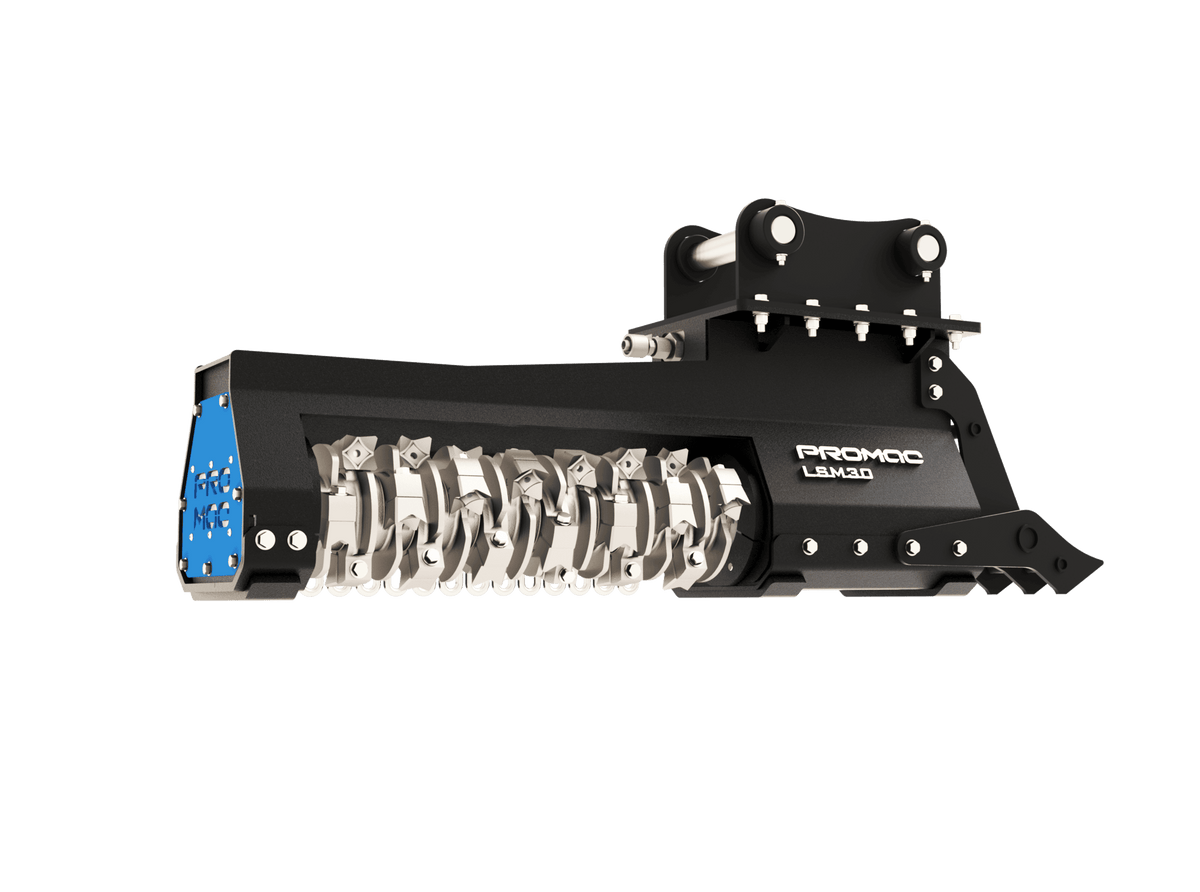

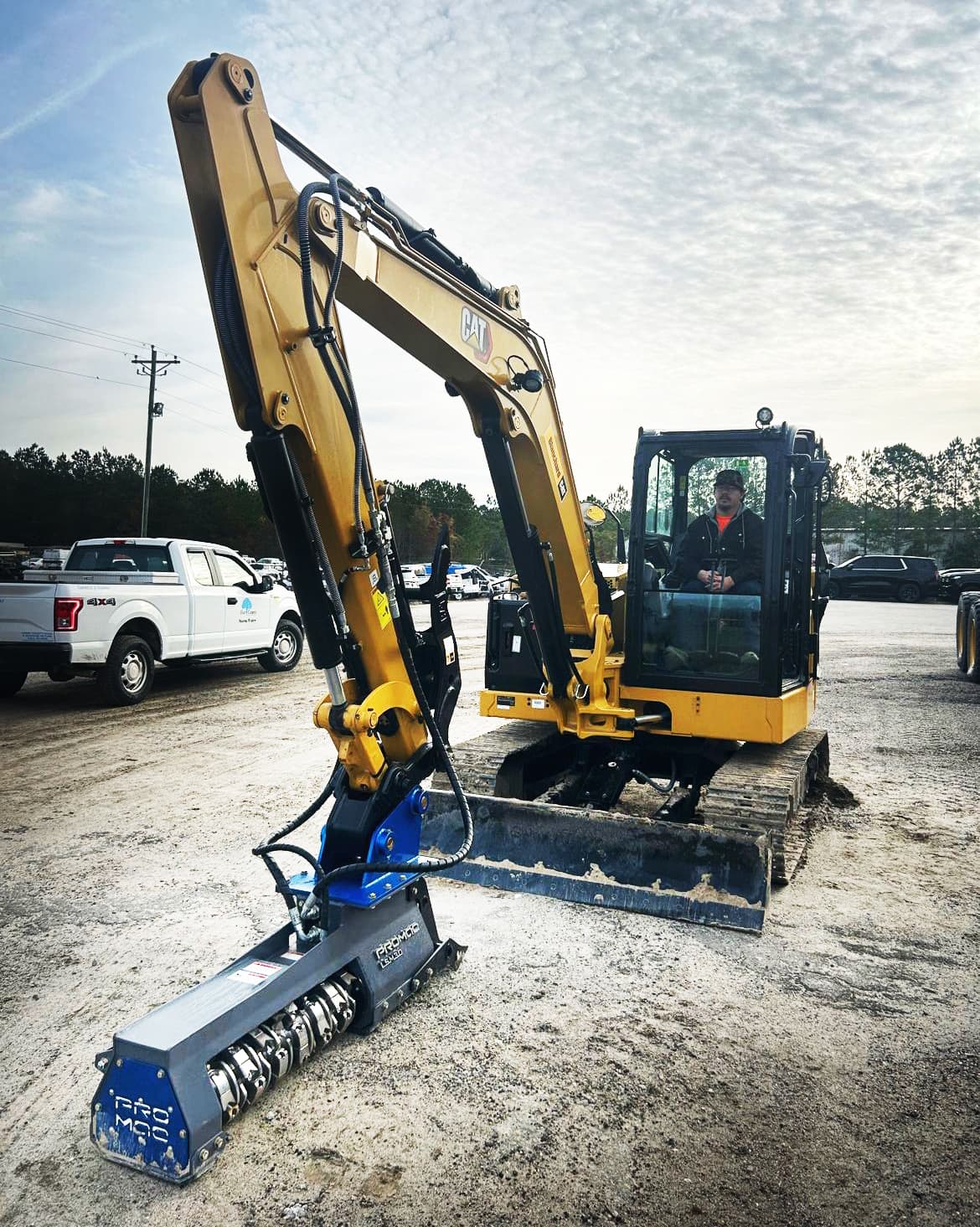

Product imagery
Manufacturer photos and the 3D viewer may show another width, disk, motor or optional configuration within this series. Confirm the supplied equipment weight and custom mount with the quote.
Installation & service
- Confirm the carrier mount, hydraulic output, guarding, hoses, and return circuit against the supplied operator manual.
- The manual requires case-drain plumbing on most installations; confirm the selected motor and circuit before installation.
Warranty
- The supplied PROMAC operator manual states 12 months from shipment for new products of PROMAC design/manufacture, subject to its installation, operation, and warranty terms.
