Tow vehicle setup
- Tow vehicle
- Compact tractor or suitable utility vehicle
- Tow connection
- 2-inch ball; optional swivel hitch
- Hydraulic lift
- Two hydraulic connections
Progressive Turf Pro-Roll 15 Contour Turf Roller
Contour Turf Roller
Pricing available by quote.
Financing available.
Learn more
Final fitment, freight, lead time, and order details are confirmed by Region Equipment before completion.
Progressive Turf Equipment
Contour Turf Roller
Seven floating roller assemblies follow contours across a 15-foot working width. Removable ballast adjusts rolling pressure, with towing options for suitable compact tractors and utility vehicles.
Best for
- Agriculture & Turf
Key specifications
- Working width
- 180 in.
- Equipment weight
- 1,910 lb (without ballast)
Fitment review Confirm tow-vehicle capacity, hitch, hydraulic connections, operating speed and approved ballast configuration when quoting.
Review configurationSpecifications
Working performance
- Working width
- 180 in.
Operating requirements
- Tow connection
- 2-inch ball; optional swivel hitch
- Hydraulics
- Two hydraulic hoses; tow-vehicle float function not required
- Maximum hydraulic pressure
- 3000 PSI (serial-range manual)
- Minimum hydraulic flow
- 2 GPM (serial-range manual)
Equipment details
- Model
- Pro-Roll 15
- Application
- Agriculture & Turf
- Equipment weight
- 1,910 lb (without ballast)
Published model specifications follow the current manufacturer brochure. Verify the supplied configuration and serial-matched manual; mounting, capacity and hydraulic setup are confirmed when quoting. Listed weight excludes ballast. Brochure and manual ballast limits differ; confirm the approved ballast and serial applicability before use.
Manuals & product resources
Features
- Independent roller units follow changing contours.
- Removable solid ballast adjusts ground pressure.
- Lift-N-Turn raises the rollers for tighter turns.
Configuration & fit
Available configurations
| Configuration & fit | SKU |
|---|---|
| Red | 670168 |
Mounting & connection
Drawbar.

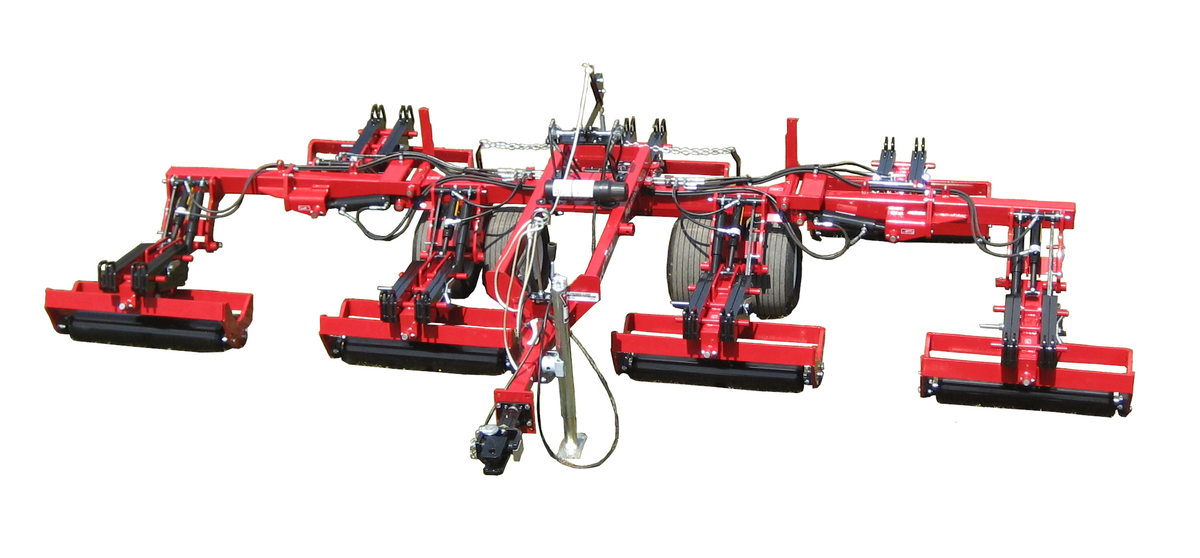

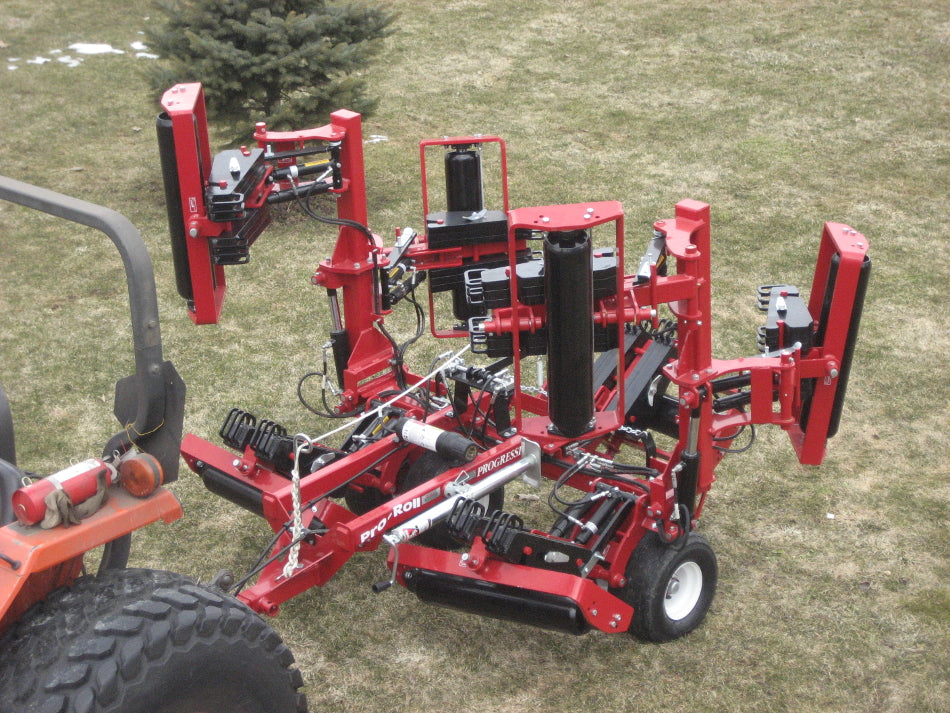

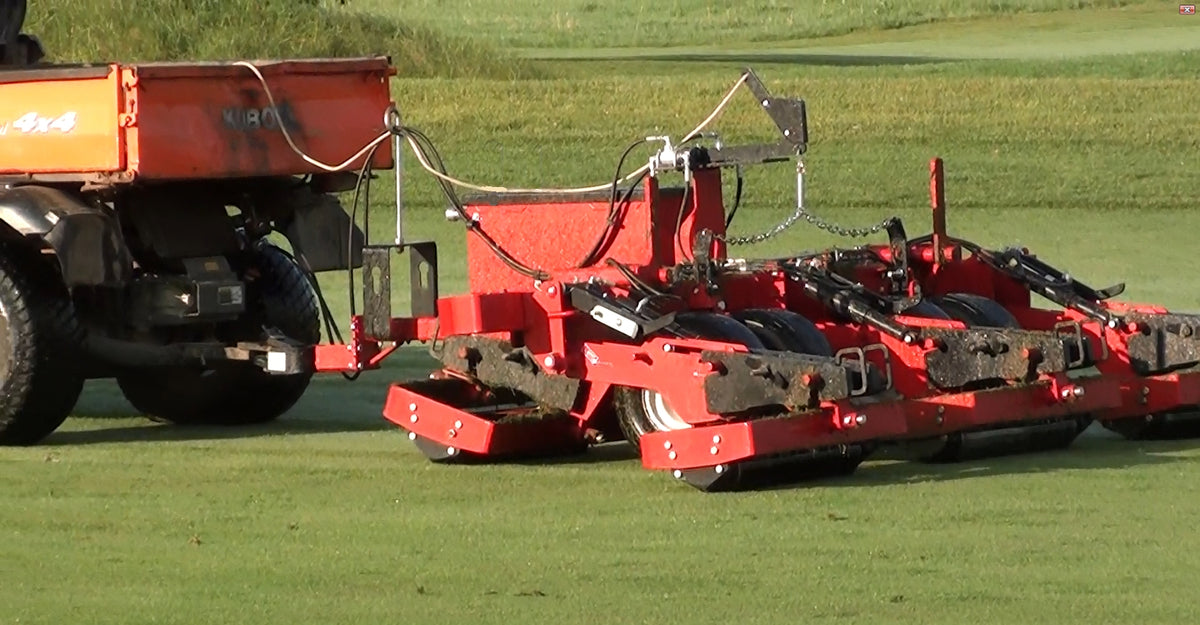

Product imagery
Manufacturer images may show optional equipment or a different finish. Confirm the supplied configuration when quoting.
Installation & service
- Confirm towing capacity, the selected 2-inch ball or optional clevis hitch, and the hydraulic connections.
- The current manual specifies at least 2 GPM flow and a 3,000 PSI maximum hydraulic pressure. Confirm ballast and tow-vehicle requirements for the operating speed.
Shipping & lead time
- Contact for estimated delivery timelines
