Tractor & PTO
- Carrier type
- Tractor
- PTO power
- 80–110 hp (PM36 + TD92 system)
- PTO speed
- 540 RPM
Progressive Turf PM36 Pro-Max 36 Mower Extension
Pro-Max 36 Mower Extension
Pricing available by quote.
Financing available.
Learn more
Final fitment, freight, lead time, and order details are confirmed by Region Equipment before completion.
Progressive Turf Equipment
Pro-Max 36 Mower Extension
Combine the PM36 with a Progressive TD92 to create a 36-foot mowing system. The PM36 is the front mower unit; the TD92 is a separate required component. Confirm the complete system configuration when requesting a quote.
Best for
- Agriculture & Turf
Key specifications
- System cutting width
- 36 ft when paired with TD92
- Cutting height
- 3/4–5 in.
- PM36 extension weight
- 4,600 lb
Fitment review Requires a separately quoted TD92. Confirm the complete system, tractor PTO power, drawbar capacity, driveline and hydraulic circuits when quoting.
Review configurationSpecifications
Working performance
- Cutting height
- 3/4–5 in.
- System cutting width
- 36 ft when paired with TD92
Operating requirements
- Recommended PTO power
- 80–110 hp (PM36 + TD92 system)
- Hydraulic circuits
- Two double-acting circuits; one with float
Equipment details
- Model
- PM36
- Application
- Agriculture & Turf
- PM36 extension weight
- 4,600 lb
- PM36 + TD92 system weight
- 8,700 lb
Published model specifications follow the current manufacturer brochure. Verify the supplied configuration and serial-matched manual; mounting, capacity and hydraulic setup are confirmed when quoting.
Features
- Pairs with a TD92 to form a five-deck mowing system.
- Rear discharge distributes grass clippings.
- Adjustable cutting height suits turf-maintenance requirements.
Configuration & fit
Available configurations
Select an option above the price to choose your configuration.
| Configuration & fit | SKU |
|---|---|
| Painted | 629236 |
| Galvanized | 629236G |
Mounting & connection
Drawbar.
Complete mowing system
The PM36 front mower requires a separate TD92 to provide the 36-foot system cutting width. Confirm the complete equipment package and hydraulic connections.

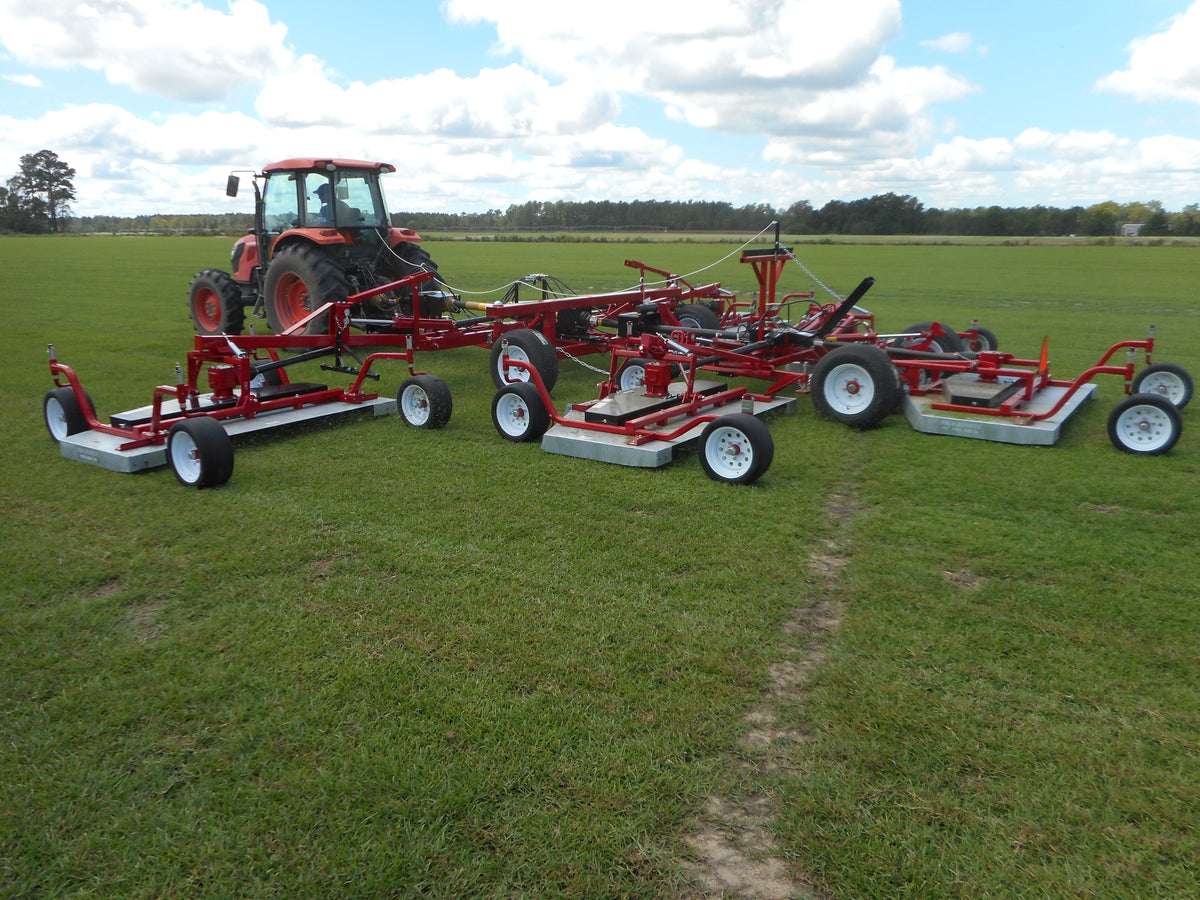

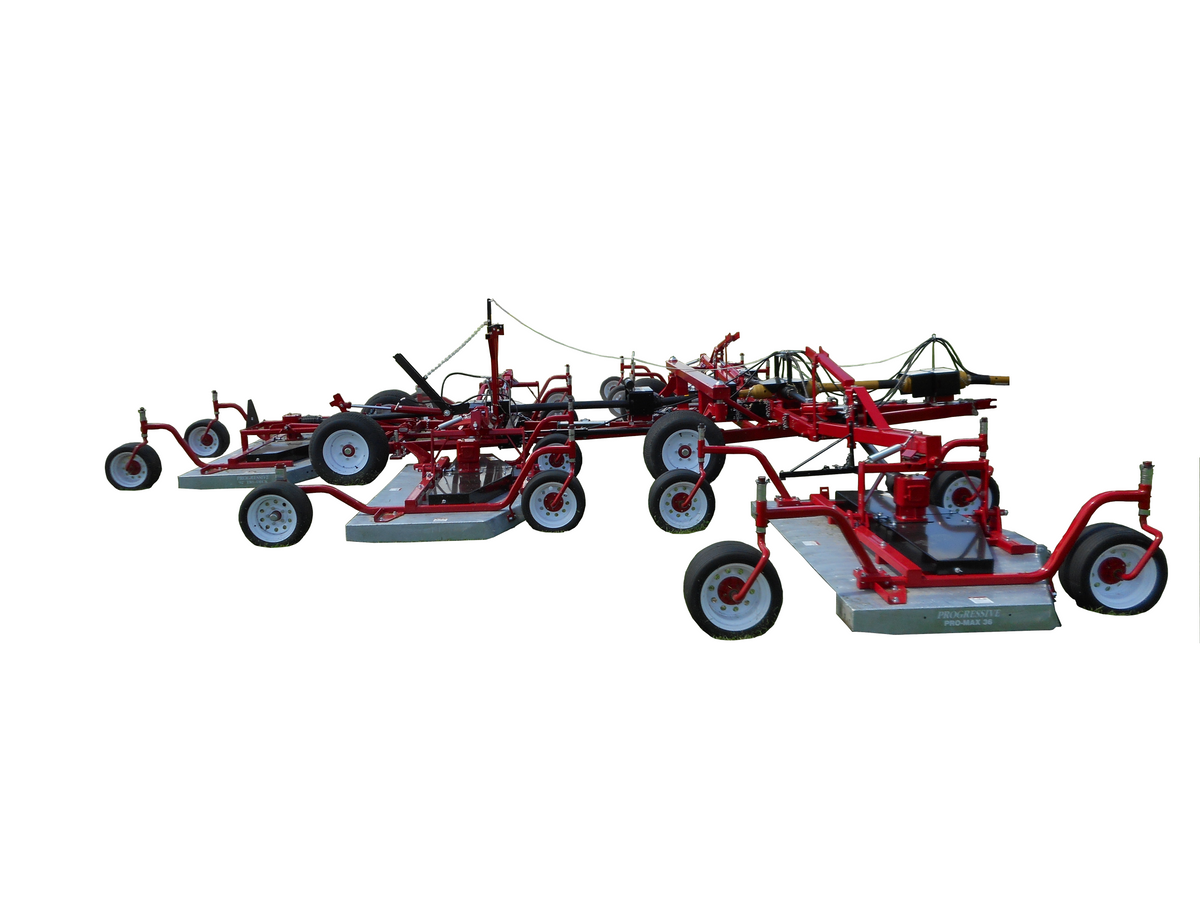

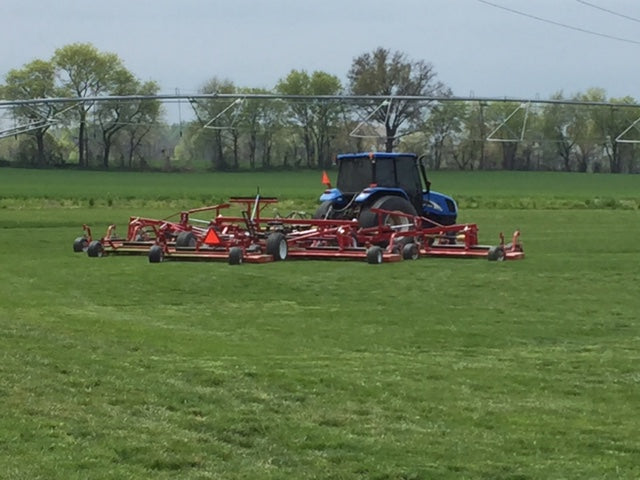

Product imagery
Manufacturer images may show optional equipment or a different finish. Confirm the supplied configuration when quoting.
Installation & service
- Confirm tractor PTO horsepower, hitch or drawbar capacity and driveline length against the serial-specific manual.
- Match hydraulic lift connections and transport clearances; inspect guarding and mechanical deck locks before use.
- Requires a TD92 and two double-acting hydraulic circuits, including one with float.
