At a glance
- Equipment
- Mid-Rise Mobile Column Lift
- Rated capacity
- 24,000 lb complete lift / configured set
- Pricing
- By quote
PKS Lifts

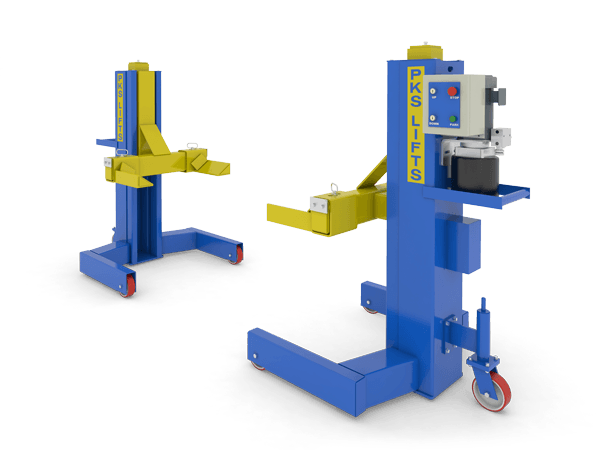

PKS PKMR-24 Mid-Rise Mobile Column Lift Series
Built for
Professional Service Facilities
Support
Installation Available
Coverage
Nationwide
Pricing available by quote.
Financing available.
Learn more
Choose the controls and set size for your operation. The model number identifies the exact configuration for your quote.
Final fitment, freight, lead time, and order details are confirmed by Region Equipment before completion.
Lift overview
Configured for your operation.
Choose the controls and set size using the configuration selector above. Review the exact selected model specifications below, and confirm vehicle loads, axle distribution, lifting points and facility requirements with your quote.
Built for your workflow
- Vehicle service and maintenance
- Professional service facilities
Plan your bay
- Vehicle load and lifting-point compatibility
- Facility layout and installation requirements
- Selected model and included equipment
Select the exact model. Verify vehicle load, axle distribution, lifting points, clearances, utilities and the selected lift configuration with the quote.
Selected modelPKMR-24AH
PKMR-24AH — 24,000 lb total for two-column set
Selected configuration
- Rated capacity
- 24,000 lb total for two-column set
- Capacity basis / supplied set
- Two columns; respect per-column rating and approved vehicle pickup points.
- Column rating
- 12,000 lb per column
- Runway dimensions
- Rise reference
- 31.5 in in 2026 catalog; public drawings state 28 in. Confirm ordered configuration.
- Air supply reference
- 90 PSI minimum per public AH reference; confirm ordered configuration
- Manufacturer configuration
- Mid Rise Mobile Columns - 31 1/2" Rise. Air-Hydraulic Motor. 12,000lbs Per Column with Spring Loaded Third Wheel. Adjustable Forks Accommodate Wheel Diameters Between 26"- 48".
Manuals & specifications
PKS family drawings — reference; confirm selected SKU PKS product family and configuration reference Air-hydraulic mid-rise drawings (AH models)Use the manual for the selected control package and model revision.
2026 PKS catalog configuration data governs the listed options, including approved capacity corrections. Rise differs: 2026 catalog 31.5 in versus public drawings/page 28 in. Confirm ordered model before specifying clearance. AH and EH reference drawings are separate. Operator and installation manuals are supplied or confirmed for the ordered model.
Find the right configuration.
Compare column height, controls and equipment packages. Your selected model stays connected to the quote button above.
Selected model
PKMR-24AH
- Control / operating package
- Air-hydraulic
- Supplied configuration
- Two-column set
Configuration includes
- Mid Rise Mobile Columns - 31 1/2" Rise. Air-Hydraulic Motor. 12,000lbs Per Column with Spring Loaded Third Wheel. Adjustable Forks Accommodate Wheel Diameters Between 26"- 48".
Verify the final package and any additional adapters for your vehicle application.
Select your model
Choose the exact SKU. Accessories and installation options are model-specific and confirmed with the quote.
Available accessories and options
Optional accessories and configuration options are available by quote and are sold separately unless the selected lift explicitly includes them. Add the lift to your quote cart and note the accessory SKUs you need; we will confirm fitment, quantities and pricing in your Service Fusion quote.
Available accessory: mid-rise pneumatic controls
PKA-MRPB adds pneumatic Up, Down and Park buttons with a quick-disconnect air inlet. Request it for the air-hydraulic AH configuration. The electric-hydraulic EH configuration already includes an electrical push-button panel.
Available accessory: bumper / frame lifting adapter
PKA-BA is offered for mid-rise and mobile column lifts, sold as a set per column. It permits lifting from approved front or rear frame points instead of the tires. Column, adapter and vehicle compatibility must be confirmed for the selected configuration.
Available accessories: vehicle support stands
Support stands are offered in 18,000 lb (PKA-1830-18 / PKA-3047-18 / PKA-4775-18), 24,000 lb (PKA-1830-24 / PKA-3047-24 / PKA-4775-24) and 30,000 lb (PKA-1830-30 / PKA-3047-30 / PKA-4775-30) ratings. The SKU prefixes indicate 18–30 in, 30–47 in or 47–75 in height ranges. The 18-ton range is PKA-1830-18T / PKA-3047-18T / PKA-4775-18T / PKA-5480-18T, with the last model covering 54–80 in. Select the stand rating, support points and height for the vehicle and load; a lift's total capacity does not establish a stand's allowable load.
Model configuration
Mid Rise Mobile Columns - 31 1/2" Rise. Air-Hydraulic Motor. 12,000lbs Per Column with Spring Loaded Third Wheel. Adjustable Forks Accommodate Wheel Diameters Between 26"- 48".
Facility planning
Verify vehicle loads, facility clearance, floor or foundation, electrical supply and installation requirements against the selected model documentation.
Warranty
Manufacturer’s warranty applies. Confirm the written terms for the selected model.
Shipping & lead time
Freight, unloading requirements and delivery timing are confirmed with your quote.
