Lift one end of a vehicle with a paired wheel lift system for access to major components during maintenance.
Model & Configuration

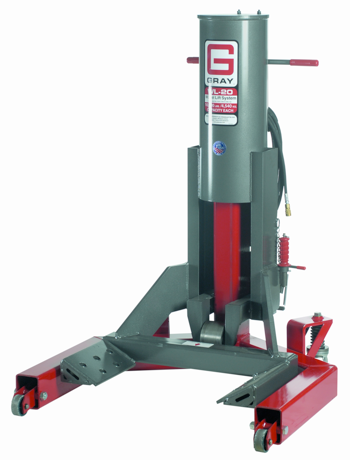

- Model: WL-20
- Configuration: 20,000 lb. capacity Wheel Lift System (pair)
- Sold as: Pair
Specifications
| Minimum Start Height | Floor Level |
|---|---|
| Maximum Lift Height | 30" |
| Power | Shop Air |
| Required Air Pressure | 160 PSI |
| Stroke | 30” |
| Minimum Wheel Diameter (w/ Adapters) | 16” |
| Minimum Wheel Diameter (w/o Adapters) | 19 1/2″ |
| Maximum Wheel Diameter | 44" |
| Overall Width | 41 9/16” |
| Overall Depth | 44 1/4” |
| Overall Height | 53 1/4” |
Adapters & Accessories
Need adapters or accessories for your WL-20? These are available through Region Equipment and are not listed separately online. Tell us what you need when finalizing your cart; our team can confirm model compatibility and provide pricing before your order is finalized. Optional items are sold separately unless specifically included in the configuration above.
