A dedicated air-operated jack stand for tire, brake and suspension service. Match the capacity and working height to the application.
Model & Configuration

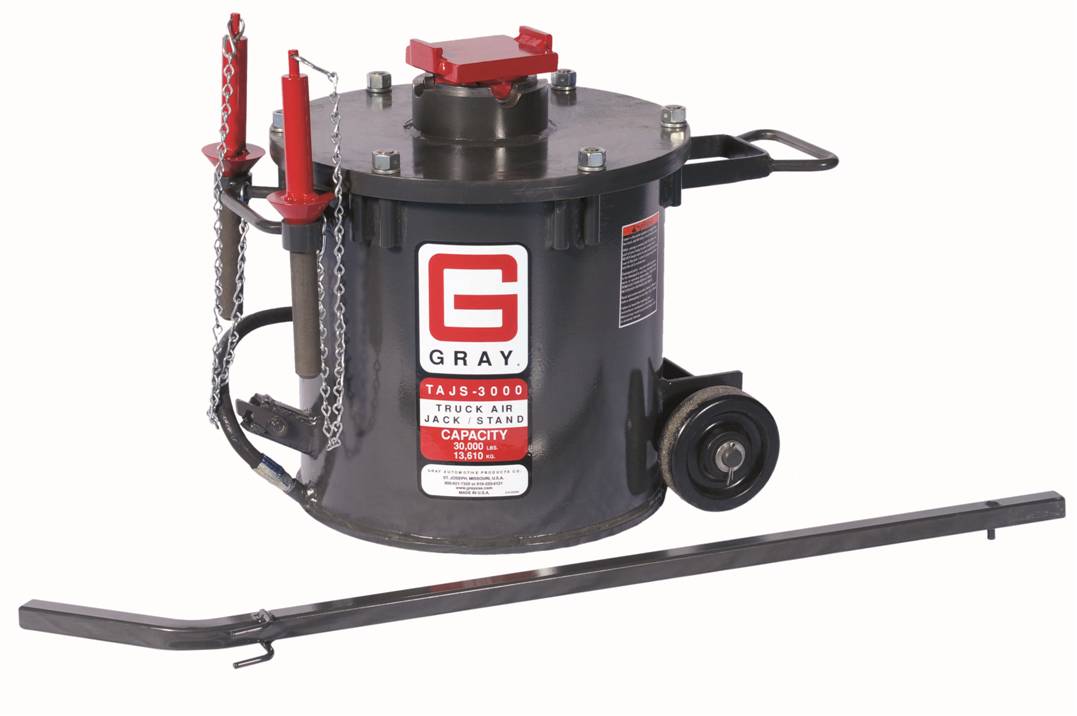

- Model: TAJS-3000
- Configuration: 30,000 lb. capacity Truck Air Jack Stand
- Sold as: Each
Specifications
| Minimum Start Height | 17 5/8″ |
|---|---|
| Maximum Lift Height w/Extension | 52 1/4″ |
| Maximum Lift Height w/o Extension | 37 1/4″ |
| Cylinder Bore | 14″ |
| Required Air Pressure | 200 PSI |
| Overall Length w/o Handle | 25 1/2″ |
| Overall Length w/ Handle | 58 1/2″ |
| Wheel Diameter | 5″ |
| Stroke | 10″ |
| Inside Saddle Width | 4 3/4″ |
| Overall Saddle Width | 5 1/2″ |
| Extension Tubes | Square |
| Handle Length | 36 1/2″ |
Adapters & Accessories
Need adapters or accessories for your TAJS-3000? These are available through Region Equipment and are not listed separately online. Tell us what you need when finalizing your cart; our team can confirm model compatibility and provide pricing before your order is finalized. Optional items are sold separately unless specifically included in the configuration above.
