Position and handle transmissions during removal and installation. Gray transmission service equipment helps technicians align components in the service bay.
Model & Configuration

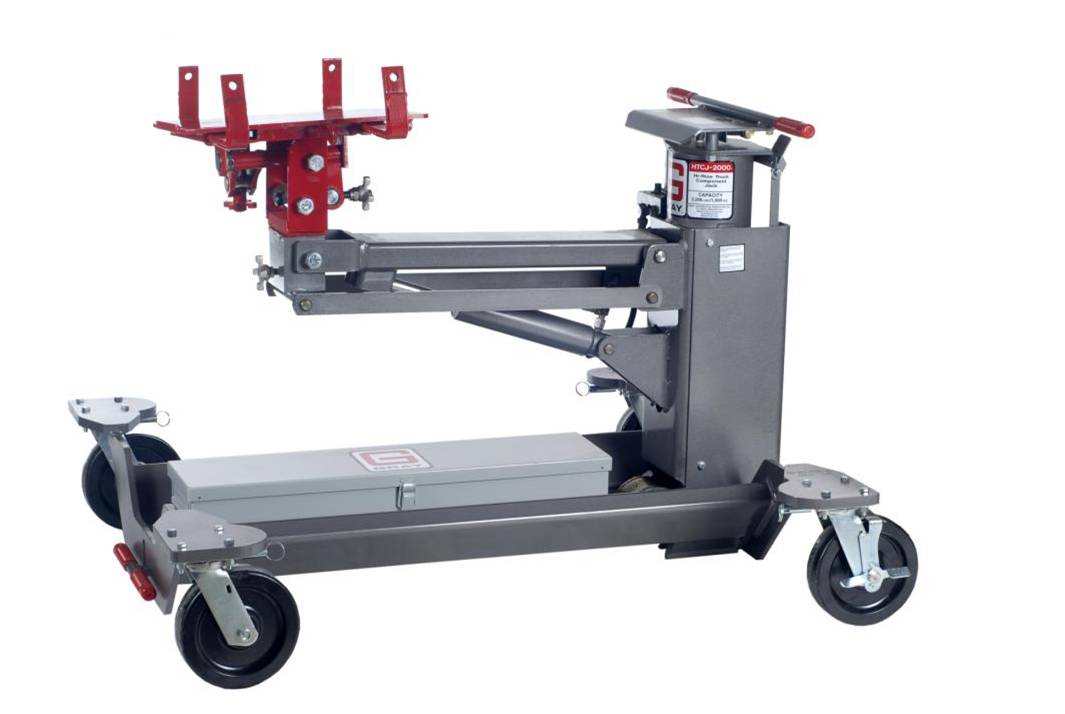

- Model: HTCJ-2000
- Configuration: 2,700 lb. capacity Heavy Duty High Rise Transmission Jack
- Sold as: Each
Specifications
| Minimum Start Height | 30″ |
|---|---|
| Maximum Lift Height | 72″ |
| Air Stage Stroke | 16″ |
| Air/Hydraulic Stroke | 26″ |
| Power | 1st Stage: Air – 2nd Stage: Air/Hydraulic |
| Required Air Pressure | 110 PSI |
| Head Plate Dimensions | 11 1/2″ x 17″ |
| Head Rotation | 360° |
| Tilt Forward | 10° |
| Tilt Rear | 10° |
| Tilt Side to Side | 10° |
| Overall Width | 42″ |
| Overall Height | 34 1/2″ |
| Overall Length | 49 5/16″ |
| Handle Length | 44 1/2″ |
| Caster Diameter | 8″ |
Adapters & Accessories
Available options for this model include Brake Drum Adapter; Clutch Adapter; Differential Adapter; Electric Vehicle Battery Pack Adapter; Flywheel Adapter; Half Round/Flange Adapter; Horizontal DPF Adapter; Truck Component Handling System.
Need adapters or accessories for your HTCJ-2000? These are available through Region Equipment and are not listed separately online. Tell us what you need when finalizing your cart; our team can confirm model compatibility and provide pricing before your order is finalized. Optional items are sold separately unless specifically included in the configuration above.
