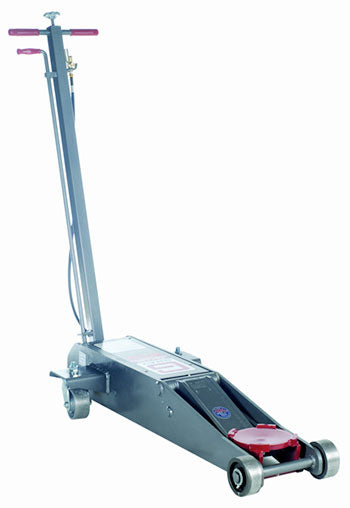

A floor service jack for vehicle maintenance, with a low starting height and a durable chassis designed for professional shop use.
Model & Configuration
- Model: FSJ-120
- Configuration: 12,000 lb. capacity Air/Hydraulic Floor Jack
- Sold as: Each
Specifications
| Minimum Start Height | 4 ¾” |
|---|---|
| Maximum Lift Height | 23 ¼” |
| Power | Air/Hydraulic/Manual |
| Required Air Pressure | 90-175 PSI |
| Chassis Height | 9 ¾” |
| Chassis Length | 48” |
| Handle Length | 47 ¾” |
| Overall width | 18 ½” |
| Overall Length | 95 ¼” |
| Overall Reach | 87” |
| Front Caster Diameter | 4 1/3” |
| Rear Swivel Caster Diameter | 4” |
| Saddle Diameter | 7 3/8” |
| Front Width Caster to Caster | 16 7/8” |
| Rear Width Bracket to Bracket | 19 7/8” |
Adapters & Accessories
Need adapters or accessories for your FSJ-120? These are available through Region Equipment and are not listed separately online. Tell us what you need when finalizing your cart; our team can confirm model compatibility and provide pricing before your order is finalized. Optional items are sold separately unless specifically included in the configuration above.
