Machine setup
- Carrier type
- Excavator
- Carrier weight
- 10,000–20,000 lb
- Hydraulic flow
- 10.6–21.1 GPM
Connect Work Tools CHG9 Hydraulic Breaker
Pricing available by quote.
Financing available.
Learn more
Final fitment, freight, lead time, and order details are confirmed by Region Equipment before completion.
Connect Work Tools
Hydraulic Breaker
The CHG9 supports utility excavation and compact-machine demolition. Match the breaker, tool, bracket, and hydraulic circuit to the carrier.
Best for
- Demolition
- Site Work & Construction
Key specifications
- Impact energy class
- 1,000 ft-lb
- Impact rate
- 450–750 BPM
- Tool diameter
- 2.93 in
Fitment review Published weights, carrier classes and tool sizes vary by source revision. Confirm the supplied breaker generation, installed weight, carrier capacity, bracket and hydraulic settings when quoting.
Review configurationSpecifications
Working performance
- Impact energy class
- 1,000 ft-lb
- Tool diameter
- 2.93 in
- Impact rate
- 450–750 BPM
Operating requirements
- Carrier operating weight
- 10,000–20,000 lb
- Hydraulic flow range
- 10.6–21.1 GPM
- Operating pressure (manual)
- 1,378–1,886 PSI
- Maximum return backpressure (manual)
- 145 PSI
Equipment details
- Model
- CHG9
- Working weight
- 906 lb
Listed working weight, carrier class and tool dimensions retain the previously approved 2026 breaker-sheet figures. Hydraulic flow and operating pressure use the published model references. The current brochure and operator manual differ on several figures. Operating pressure is distinct from carrier relief pressure. Confirm the supplied revision before ordering.
Manuals & product resources
Features
- Gas-fired impact system.
- Replaceable tool bushing.
- Housing options help protect the power cell.
Configuration & fit
Supplied configuration
Mounting bracket, pins, hoses, service kit, and one tool of choice.
Product imagery

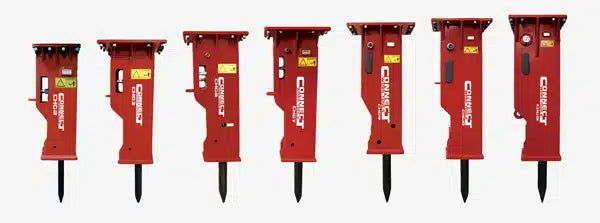

Manufacturer series image shown; exact model and configuration may differ.
Installation & service
- Set operating flow, operating pressure, carrier relief, and return backpressure to the model-specific manual; relief pressure is not the operating-pressure rating.
- Confirm bracket/pins, hoses, tool choice, lubrication, and carrier stability before installation.
