Machine setup
- Carrier type
- Excavator
- Carrier weight
- 26,000–37,000 lb
- Jaw flow (manual reference)
- 21.1 GPM
Connect Work Tools CG15 Sorting Grapple
Pricing available by quote.
Financing available.
Learn more
Final fitment, freight, lead time, and order details are confirmed by Region Equipment before completion.
Connect Work Tools
Sorting Grapple
The CG15 sorts and moves demolition, recycling, and construction material with rotating hydraulic jaws.
Best for
- Demolition
- Material Handling
Key specifications
- Maximum jaw opening
- 65 in
- Capacity
- 14.2 cu ft
- Rotation
- 360°
Fitment review Jaw and rotation circuits have separate hydraulic requirements. Confirm both circuits, the supplied revision, loaded carrier capacity, bracket and hoses when quoting.
Review configurationSpecifications
Working performance
- Capacity
- 14.2 cu ft
- Maximum jaw opening
- 65 in
- Rotation
- 360°
Operating requirements
- Carrier operating weight
- 26,000–37,000 lb
- Jaw circuit flow (manual reference)
- 21.1 GPM
- Jaw circuit pressure (manual reference)
- 4,641 PSI
- Rotation circuit flow (manual reference)
- 19.8 GPM
- Rotation circuit pressure (manual reference)
- 2,031 PSI
Equipment details
- Model
- CG15
- Working weight
- 2,440 lb
Working weight, carrier class, capacity and rounded dimensions follow the manufacturer product page. Separate jaw and rotator hydraulic figures are references from the CG operator manual, PDF page 15. These single flow figures are not a validated minimum-to-maximum operating range. Manual and brochure weights, dimensions and carrier limits differ. Confirm the supplied revision before ordering.
Manuals & product resources
Features
- Hydraulic rotation positions the jaws around material.
- Protected cylinders and a check valve support load handling.
- Bolt-on bracket supports carrier-specific installation.
Configuration & fit
Supplied configuration
Mounting bracket and pins. Hydraulic hoses are not included.

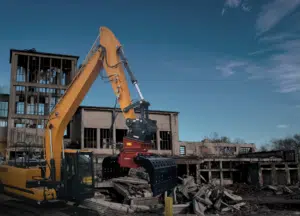

Product imagery
Manufacturer series image shown; exact model and configuration may differ.
Installation & service
- Configure jaw and rotator hydraulic circuits separately using the model-specific manual.
- Confirm bracket geometry, hoses, carrier stability, and serial-number specifications before installation.
