At a glance
- Motor power
- 5 hp
- Receiver
- 60 gal vertical
- Air delivery
- 11.4 ACFM at 125 PSIG

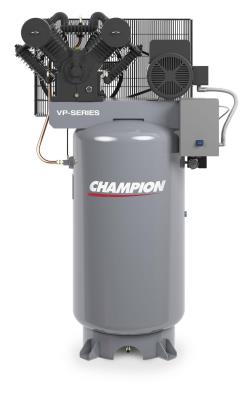

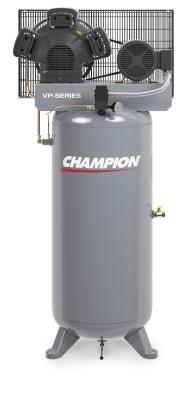

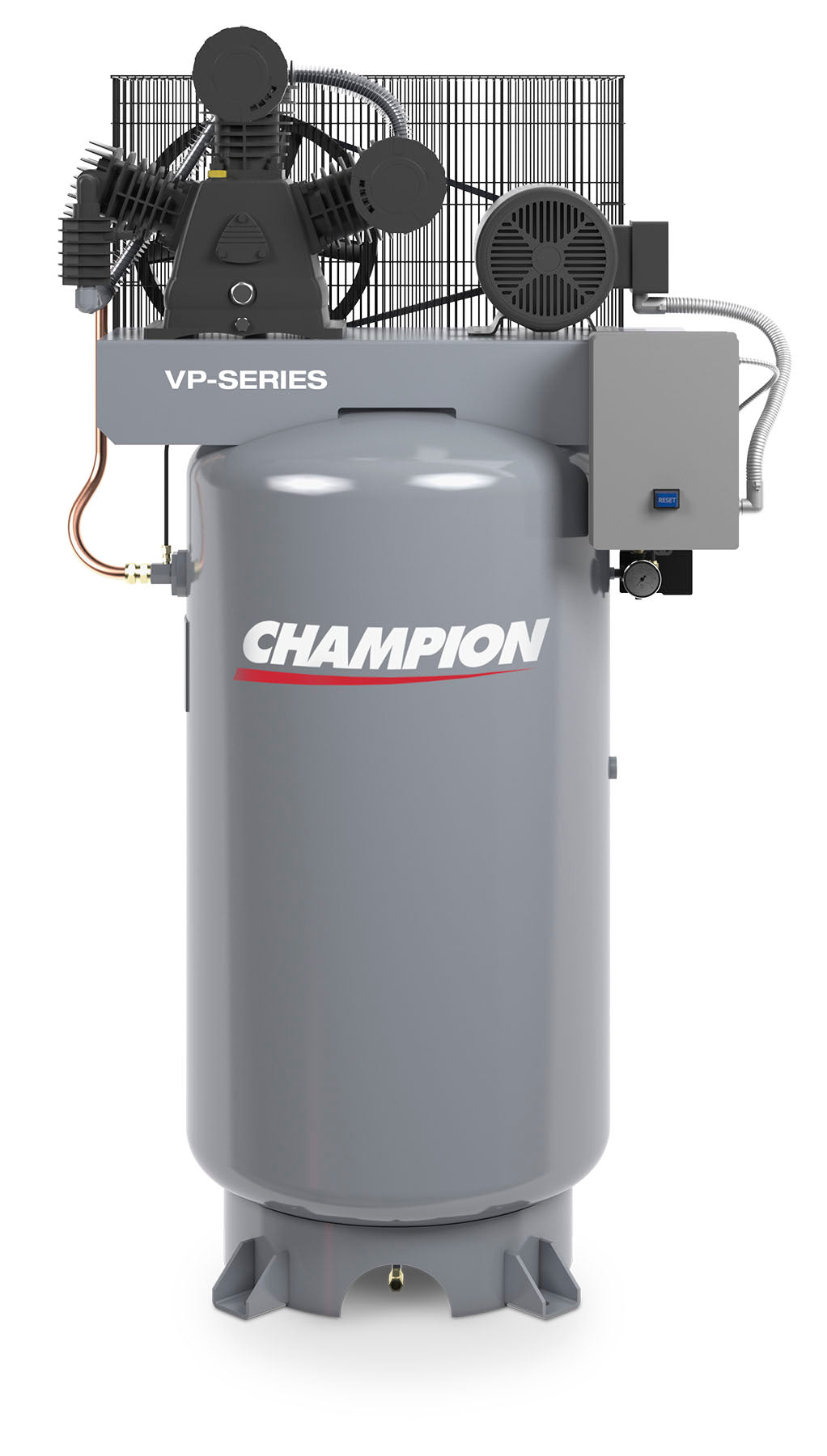

Champion VP-Series Reciprocating Air Compressors
Built for
Professional Shop Air
Support
System Sizing & Installation
Coverage
Nationwide
Regular price
$2,062.26
Financing available.
Learn more
Final fitment, freight, lead time, and order details are confirmed by Region Equipment before completion.
Product overview
A straightforward choice for shop air.
Champion VP-Series packages pair a reciprocating compressor with a vertical receiver. Compare the 5 and 7.5 hp models by airflow, tank size and electrical supply to choose the right package for your operation.
Package design
- Vertical receivers in 60- and 80-gallon sizes.
- Automatic pressure-switch start and stop.
- Single- or two-stage pump, by model.
Plan your air system
- Match voltage and phase to your facility.
- Size airflow for tools running at the same time.
- Plan for ventilation, drainage and air treatment.
Selected packageVP5-40-6
Stock no. 312CDS8016
230 V / 1-phase
Air performance
- Air delivery at rated pressure
- 11.4 ACFM at 125 PSIG
- Compression stages
- Single-stage
- Package layout
- Simplex · one pump
Motor & electrical
- Motor power
- 5 hp
- Voltage
- 230 V
- Phase
- 1-phase
- Frequency
- 60 Hz
- Motor speed
- 3,600 rpm
Receiver & equipment
- Receiver
- 60 gal vertical
- Magnetic starter
- Not included
Product documents
Series brochure Champion product informationUse the installation and service manual supplied for your exact package.
Air delivery is stated at the pressure shown. Order by the selected stock number and electrical supply. Images illustrate the product family.
Choose your VP-Series package.
Select the model and exact electrical supply. Air delivery is always shown with its rated pressure.
Selected package
VP5-40-6
312CDS8016
- Motor power
- 5 hp
- Receiver
- 60 gal vertical
- Electrical supply
- 230 V / 1-phase
- Air delivery
- 11.4 ACFM at 125 PSIG
Package details
- Automatic pressure-switch start and stop
- Manual tank drain and receiver pressure gauge
- Magnetic starter not included
Air demand
Compare air delivery at the pressure your tools require, allowing for equipment that runs simultaneously.
Electrical supply
Choose the exact voltage and phase available in your facility. These selections identify separate factory packages.
Receiver layout
Choose the tank size and orientation that suit your available floor space and service access.
Included equipment
Pump stages, motor speed and magnetic starter inclusion vary by model.
Vertical tank layout
Choose a 60- or 80-gallon receiver according to the selected model.
Automatic operation
Pressure-switch control starts and stops the compressor as air is used.
Model-specific pump design
VP5-40-6 is single-stage. VP5-55-8 and VP7-100-8 use two-stage compression.
Visible package differences
Specifications identify the motor speed and magnetic starter inclusion for the selected model.
Size the system
Review operating pressure and combined tool demand before selecting the package. Plan downstream filtration, drying and distribution with your installer.
Prepare electrical service
Have the installer verify voltage, phase and required electrical protection against the exact package manual.
Plan the location
Allow for ventilation, receiver mounting, vibration isolation, drainage and routine service access.
Commission & maintain
Use the supplied package manual for startup and service. Region Equipment can coordinate installation and ongoing support.
Warranty
Champion lists one-year compressor-pump coverage for the VP-Series. Confirm the complete written package warranty, maintenance requirements and exclusions for the selected unit.
Shipping & lead time
Freight, unloading arrangements and delivery timing are confirmed for the selected package and destination. Installation and commissioning can be coordinated with Region Equipment.
