At a glance
- Motor power
- 2 hp motor
- Receiver
- 60 gal vertical
- Air delivery
- 4.5 ACFM at 175 PSIG

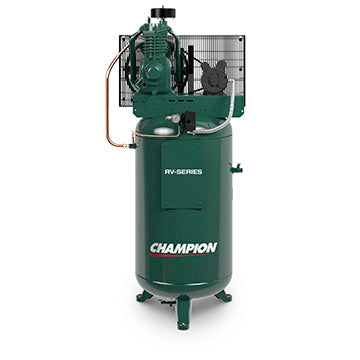

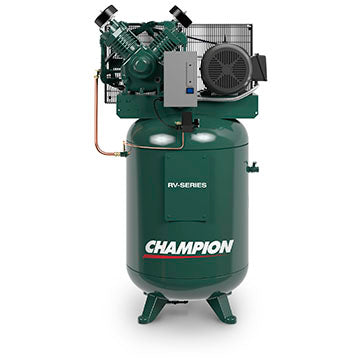

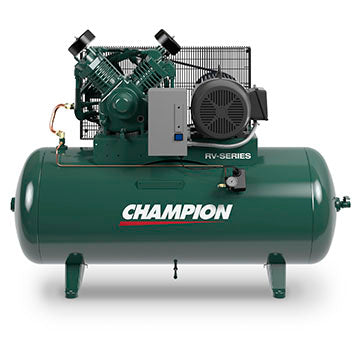

Champion RV-Series Electric Reciprocating Air Compressors
Built for
Professional Shop Air
Support
System Sizing & Installation
Coverage
Nationwide
Regular price
$3,058.09
Financing available.
Learn more
Final fitment, freight, lead time, and order details are confirmed by Region Equipment before completion.
Product overview
Reciprocating air for your shop.
RV-Series electric compressors offer vertical and horizontal receiver configurations with two-stage, splash-lubricated pumps. Compare the selected model's motor speed, electrical supply, rated airflow and starter equipment before requesting a quote.
Package design
- Professional shop air
- Vertical and horizontal receivers
- Motor-speed-specific configurations
Plan your air system.
- Confirm exact voltage and phase in your quote.
- Size airflow for simultaneous demand.
- Plan drainage and air treatment.
Selected modelVRV2-6
Catalog reference CH-RV-VRV2-6
60 gal vertical · 208/230V 1-phase
Air performance
- Air delivery at rated pressure
- 4.5 ACFM at 175 PSIG
- Compression stages
- Two-stage
- Pump lubrication
- Splash lubricated
- Package layout
- Simplex · one pump
Motor and electrical
- Motor power
- 2 hp motor
- Motor speed
- 1800 RPM
- Available electrical supply
- 208/230V 1-phase
- Starter / controller
- Mounted NEMA 1 starter
- Electrical selection
- Confirm exact voltage and phase in quote request.
Receiver and equipment
- Receiver
- 60 gal vertical
- Enclosure
- Dryer inclusion
- Mounted dryer model
- Configuration details
- Simplex; 1800 RPM motor
Product documents
Download specification sheet Download series brochure Manufacturer product informationBrochures and performance sheets are family references. Use the installation and service manuals supplied for your exact ordered package.
Air delivery is stated at the pressure shown. Models and available electrical choices are confirmed during quoting. Catalog references beginning CH- are Region Equipment references. Images illustrate the family.
Choose your compressor configuration.
Compare the available models, then confirm voltage, phase and optional equipment in your quote request.
Selected model
VRV2-6
CH-RV-VRV2-6
- Motor power
- 2 hp motor
- Receiver
- 60 gal vertical
- Available electrical supply
- 208/230V 1-phase
- Air delivery
- 4.5 ACFM at 175 PSIG
Package details
- Two-stage, splash lubricated pump
- 60 gal vertical receiver
- Simplex configuration
- Starter / controller: Mounted NEMA 1 starter
Air demand
Compare air delivery at the pressure your tools require.
Electrical supply
Available electrical supplies are confirmed during quoting; the model-based catalog reference is not a final factory stock number.
Included equipment
Read the selected configuration for receiver, starter and dryer inclusion. Optional accessories are quoted separately.
Two-stage pump
The RV family uses splash-lubricated reciprocating pumps.
Receiver layouts
Vertical and horizontal tank configurations vary by selected model.
Electrical equipment
Starter inclusion and available voltage or phase depend on the motor-speed configuration.
Size the system
Review operating pressure and combined tool demand; plan filtration, drying and distribution for the application.
Confirm electrical supply
Record the exact voltage and phase in the quote request. Available supply choices do not identify a final factory-built electrical configuration.
Prepare the location
Plan ventilation, mounting, drainage and service access; have the installer verify electrical protection and controls against the exact package manual.
Commission and maintain
Use the exact supplied package manual for startup and service. Region Equipment can coordinate installation and ongoing support.
Shipping & lead time
Freight, unloading and delivery timing are confirmed for the selected model and destination. Installation and commissioning can be coordinated with Region Equipment.
