At a glance
- Motor power
- 2 hp motor
- Receiver
- Base / no receiver
- Air delivery
- 4.1 ACFM at 175 PSIG

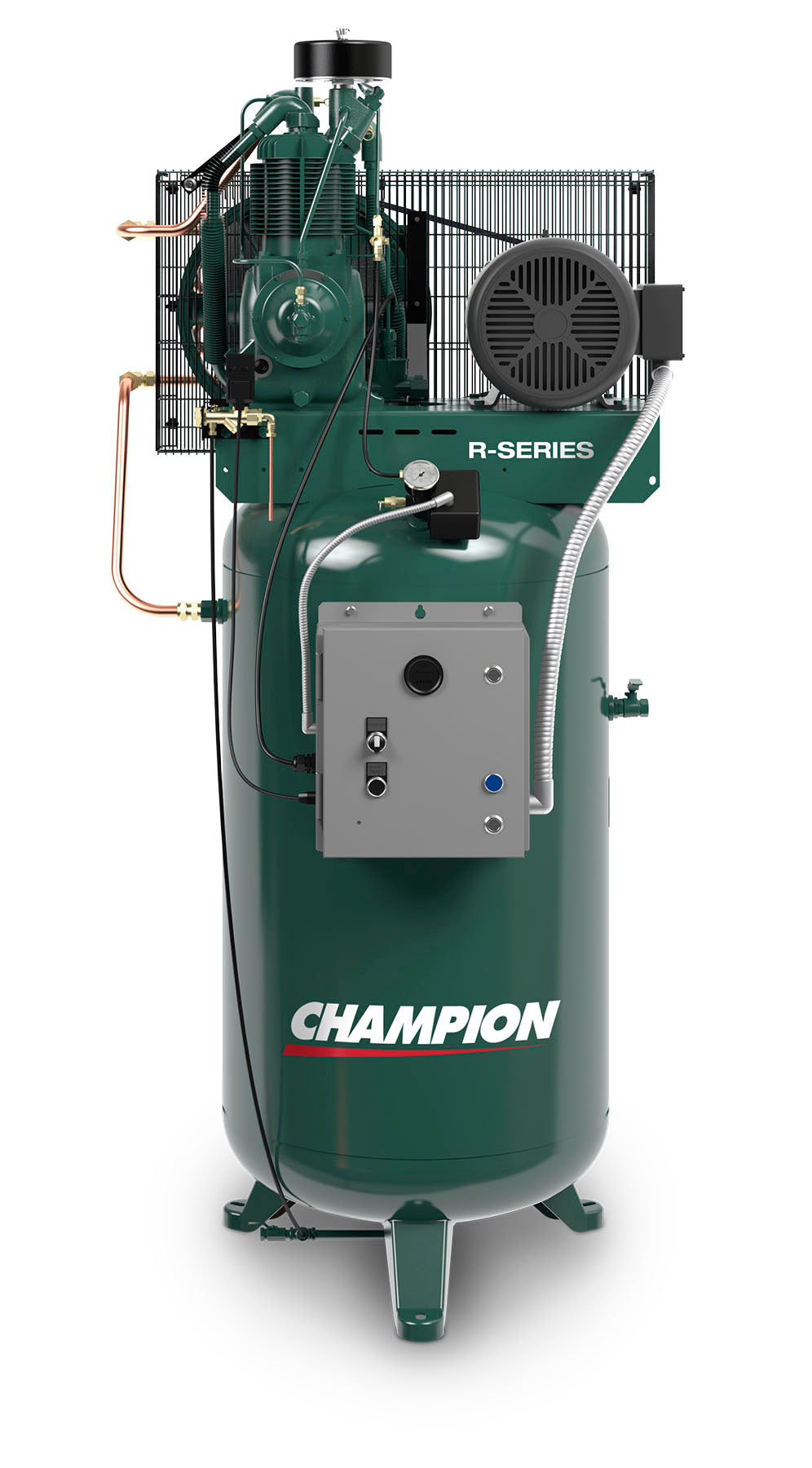

Champion R-Series Electric Reciprocating Air Compressors
Built for
Professional Shop Air
Support
System Sizing & Installation
Coverage
Nationwide
Regular price
$3,302.11
Financing available.
Learn more
Final fitment, freight, lead time, and order details are confirmed by Region Equipment before completion.
Product overview
Shop air, sized for your operation.
R-Series electric compressors use two-stage, splash-lubricated pumps. Compare base-mounted and receiver-mounted models, available electrical supplies, and simplex or duplex layouts.
Package design
- Shop air systems
- Simplex and duplex configurations
- Voltage and phase confirmed with your quote
Plan your air system.
- Confirm exact voltage and phase in your quote.
- Size airflow for simultaneous demand.
- Plan drainage and air treatment.
Selected modelBR2
Catalog reference CH-R-BR2
Base / no receiver · 115/208/230V 1-phase; 208/230/460/575V 3-phase
Air performance
- Air delivery at rated pressure
- 4.1 ACFM at 175 PSIG
- Compression stages
- Two-stage
- Pump lubrication
- Splash lubricated
- Package layout
- Simplex · one pump
Motor and electrical
- Motor power
- 2 hp motor
- Motor speed
- Available electrical supply
- 115/208/230V 1-phase; 208/230/460/575V 3-phase
- Starter / controller
- Mounted NEMA 1 controller per selected base package
- Electrical selection
- Confirm exact voltage and phase in quote request.
Receiver and equipment
- Receiver
- Base / no receiver
- Enclosure
- Dryer inclusion
- Mounted dryer model
- Configuration details
- Simplex
Product documents
Download specification sheet Download series brochure Manufacturer product informationBrochures and performance sheets are family references. Use the installation and service manuals supplied for your exact ordered package.
Air delivery is stated at the pressure shown. Models and available electrical choices are confirmed during quoting. Catalog references beginning CH- are Region Equipment references. Images illustrate the family.
Choose your compressor configuration.
Compare the available models, then confirm voltage, phase and optional equipment in your quote request.
Selected model
BR2
CH-R-BR2
- Motor power
- 2 hp motor
- Receiver
- Base / no receiver
- Available electrical supply
- 115/208/230V 1-phase; 208/230/460/575V 3-phase
- Air delivery
- 4.1 ACFM at 175 PSIG
Package details
- Two-stage, splash lubricated pump
- Base-mounted; no receiver
- Simplex configuration
- Starter / controller: Mounted NEMA 1 controller per selected base package
Air demand
Compare air delivery at the pressure your tools require.
Electrical supply
Available electrical supplies are confirmed during quoting; the model-based catalog reference is not a final factory stock number.
Included equipment
Read the selected configuration for receiver, starter and dryer inclusion. Optional accessories are quoted separately.
Two-stage compression
Splash-lubricated pumps supply air at the selected model's rated pressure.
Installation choices
Base, vertical and horizontal receiver configurations are offered across the family.
Package controls
The listed base-package prices include the mounted NEMA 1 controller.
Size the system
Review operating pressure and combined tool demand; plan filtration, drying and distribution for the application.
Confirm electrical supply
Record the exact voltage and phase in the quote request. Available supply choices do not identify a final factory-built electrical configuration.
Prepare the location
Plan ventilation, mounting, drainage and service access; have the installer verify electrical protection and controls against the exact package manual.
Commission and maintain
Use the exact supplied package manual for startup and service. Region Equipment can coordinate installation and ongoing support.
Warranty
Manufacturer lists three-year compressor-pump and one-year package coverage. Written warranty terms, maintenance requirements and exclusions apply. Extended coverage is separate.
Shipping & lead time
Freight, unloading and delivery timing are confirmed for the selected model and destination. Installation and commissioning can be coordinated with Region Equipment.
