At a glance
- Motor power
- 2 hp motor
- Receiver
- 80 gal horizontal
- Air delivery
- 4.1 ACFM at 175 PSIG

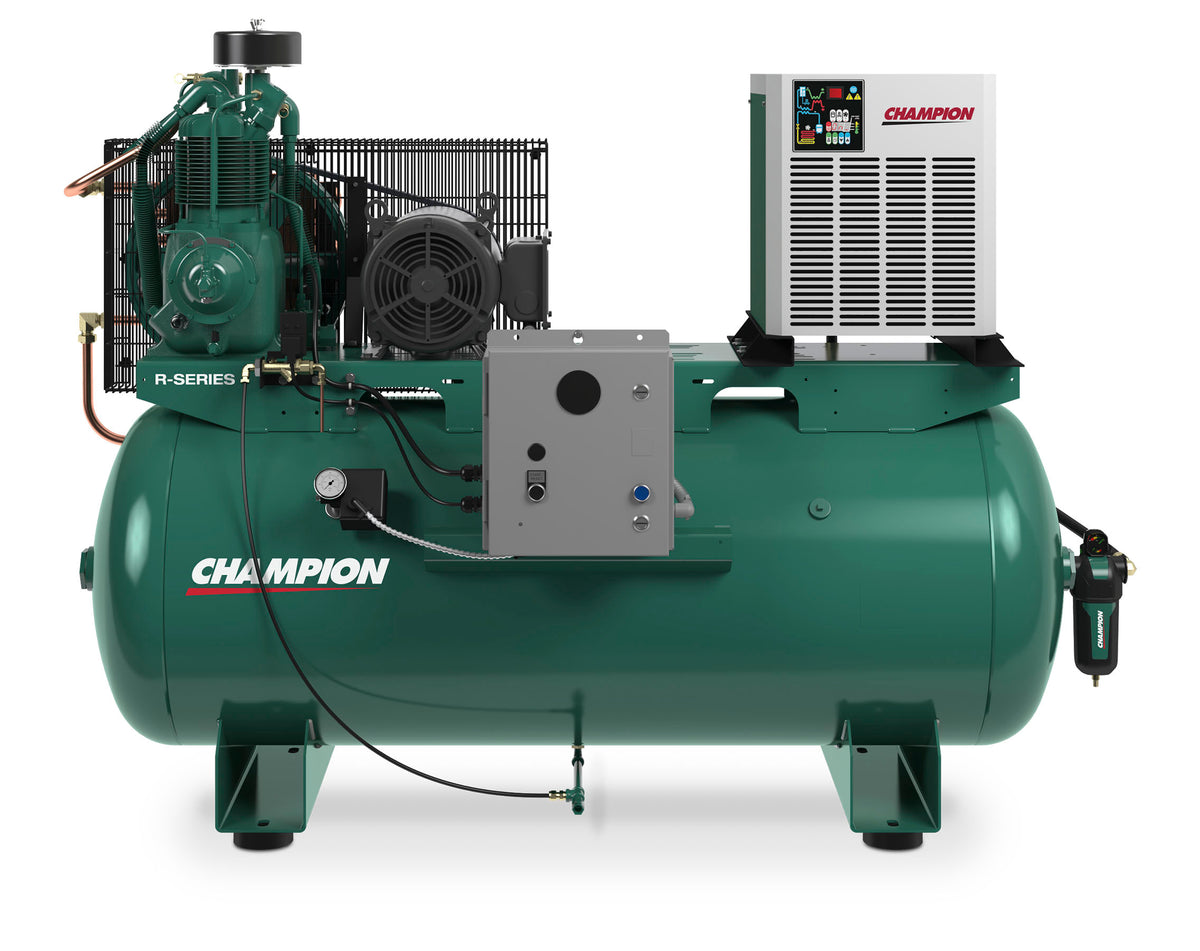

Champion R-Series AirStation Compressor Packages
Built for
Professional Shop Air
Support
System Sizing & Installation
Coverage
Nationwide
Regular price
$7,081.89
Financing available.
Learn more
Final fitment, freight, lead time, and order details are confirmed by Region Equipment before completion.
Product overview
Compressor and dryer, configured together.
R-Series AirStation packages combine a two-stage compressor with a mounted refrigerated dryer. Choose the receiver and air delivery for your operation, then confirm the compressor and dryer electrical requirements with Region Equipment.
Package design
- Shop air with integrated drying
- Mounted refrigerated dryer
- Simplex package configurations
Plan your air system.
- Confirm exact voltage and phase in your quote.
- Size airflow for simultaneous demand.
- Plan drainage and air treatment.
Selected modelHR2-8
Catalog reference CH-RA-HR2-8
80 gal horizontal · 115/208/230V 1-phase; 208/230/460/575V 3-phase
Air performance
- Air delivery at rated pressure
- 4.1 ACFM at 175 PSIG
- Compression stages
- Two-stage
- Pump lubrication
- Splash lubricated
- Package layout
- Simplex · one pump
Motor and electrical
- Motor power
- 2 hp motor
- Motor speed
- Available electrical supply
- 115/208/230V 1-phase; 208/230/460/575V 3-phase
- Starter / controller
- Mounted NEMA 1 controller per selected base package
- Electrical selection
- Confirm exact voltage and phase in quote request.
Receiver and equipment
- Receiver
- 80 gal horizontal
- Enclosure
- Dryer inclusion
- Mounted refrigerated dryer
- Mounted dryer model
- Configuration details
- Simplex
Product documents
Download specification sheet Download series brochure Manufacturer product informationBrochures and performance sheets are family references. Use the installation and service manuals supplied for your exact ordered package.
Air delivery is stated at the pressure shown. Models and available electrical choices are confirmed during quoting. Catalog references beginning CH- are Region Equipment references. Images illustrate the family.
Choose your compressor configuration.
Compare the available models, then confirm voltage, phase and optional equipment in your quote request.
Selected model
HR2-8
CH-RA-HR2-8
- Motor power
- 2 hp motor
- Receiver
- 80 gal horizontal
- Available electrical supply
- 115/208/230V 1-phase; 208/230/460/575V 3-phase
- Air delivery
- 4.1 ACFM at 175 PSIG
Package details
- Two-stage, splash lubricated pump
- 80 gal horizontal receiver
- Simplex configuration
- Mounted refrigerated dryer
- Starter / controller: Mounted NEMA 1 controller per selected base package
Air demand
Compare air delivery at the pressure your tools require.
Electrical supply
Available electrical supplies are confirmed during quoting; the model-based catalog reference is not a final factory stock number.
Included equipment
Read the selected configuration for receiver, starter and dryer inclusion. Optional accessories are quoted separately.
Integrated air treatment
A mounted refrigerated dryer is included in the selected AirStation configuration.
Two-stage pump
The compressor uses the R-Series splash-lubricated pump design.
Receiver choices
Horizontal receivers and rated airflow vary by selected model.
Size the system
Review operating pressure and combined tool demand; plan filtration, drying and distribution for the application.
Confirm electrical supply
Record the exact voltage and phase in the quote request. Available supply choices do not identify a final factory-built electrical configuration.
Prepare the location
Plan ventilation, mounting, drainage and service access; have the installer verify electrical protection and controls against the exact package manual.
Commission and maintain
Use the exact supplied package manual for startup and service. Region Equipment can coordinate installation and ongoing support.
Warranty
Manufacturer lists three-year compressor-pump and one-year package coverage. Written warranty terms, maintenance requirements and exclusions apply. Extended coverage is separate.
Shipping & lead time
Freight, unloading and delivery timing are confirmed for the selected model and destination. Installation and commissioning can be coordinated with Region Equipment.
