At a glance
- Engine power
- 13 hp engine
- Receiver
- Base / no receiver
- Air delivery
- 23.2 ACFM at 175 PSIG

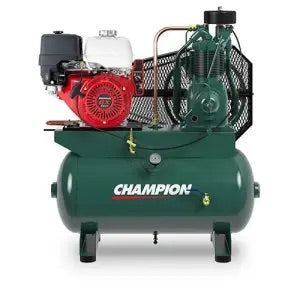

Champion PL-Series Engine Driven Air Compressors
Built for
Professional Shop Air
Support
System Sizing & Installation
Coverage
Nationwide
Regular price
$5,326.99
Financing available.
Learn more
Final fitment, freight, lead time, and order details are confirmed by Region Equipment before completion.
Product overview
Pressure-lubricated air for mobile work.
PL-Series engine-driven packages combine a pressure-lubricated, two-stage pump with a gasoline or diesel engine. Compare base and receiver-mounted models, engine choices, and rated air delivery for mobile service or remote applications.
Package design
- Mobile service
- Remote compressed air
- Pressure-lubricated PL-Series pump
Plan your air system.
- Size airflow at the required pressure.
- Confirm engine and starting equipment.
- Plan mounting, ventilation and service access.
Selected modelBGPL7H
Catalog reference CH-PE-BGPL7H
Base / no receiver · Honda GX390
Air performance
- Air delivery at rated pressure
- 23.2 ACFM at 175 PSIG
- Compression stages
- Two-stage
- Pump lubrication
- Pressure lubricated
- Package layout
- Simplex · one pump
Engine
- Engine power
- 13 hp engine
- Engine model
- Honda GX390
- Starting equipment
- Confirm engine starting equipment with quote; battery not supplied for electric-start engines.
Receiver and equipment
- Receiver
- Base / no receiver
- Enclosure
- Dryer inclusion
- Mounted dryer model
- Configuration details
- Simplex
Product documents
Download specification sheet Download series brochure PL-Series pump performance Manufacturer product informationBrochures and performance sheets are family references. Use the installation and service manuals supplied for your exact ordered package.
Air delivery is stated at the pressure shown. Models and available electrical choices are confirmed during quoting. Catalog references beginning CH- are Region Equipment references. Images illustrate the family.
Choose your compressor configuration.
Compare the available models, then confirm voltage, phase and optional equipment in your quote request.
Selected model
BGPL7H
CH-PE-BGPL7H
- Engine power
- 13 hp engine
- Receiver
- Base / no receiver
- Engine model
- Honda GX390
- Air delivery
- 23.2 ACFM at 175 PSIG
Package details
- Two-stage, pressure lubricated pump
- Base-mounted; no receiver
- Simplex configuration
- Honda GX390 engine
Air demand
Compare air delivery at the pressure your tools require.
Engine
Choose the engine and starting equipment for the operating environment.
Included equipment
Read the selected configuration for receiver, starter and dryer inclusion. Optional accessories are quoted separately.
Pressure-lubricated pump
The PL-Series pump uses pressure lubrication for its running components.
Engine choices
Honda, Kohler and Yanmar engines are offered across the retained configurations.
Package choices
Select the base or horizontal-receiver model that suits your mounting and air-demand requirements.
Size air delivery
Compare airflow at the required pressure with tools operating at the same time.
Plan mounting and starting
Confirm package mounting, service access, starting equipment and battery requirements for the selected engine.
Plan the operating location
Provide an appropriate outdoor operating arrangement, ventilation and exhaust clearance according to the engine and compressor manuals.
Commission and maintain
Use the exact supplied package and engine manuals for startup and maintenance. Region Equipment can coordinate installation and service.
Warranty
Manufacturer lists three-year compressor-pump and one-year package coverage. Written warranty terms, maintenance requirements and exclusions apply. Extended coverage is separate.
Shipping & lead time
Freight, unloading and delivery timing are confirmed for the selected model and destination. Installation and commissioning can be coordinated with Region Equipment.
