At a glance
- Motor power
- 5 hp
- Receiver
- 80 gal vertical
- Air delivery
- 17.0 ACFM at 175 PSIG

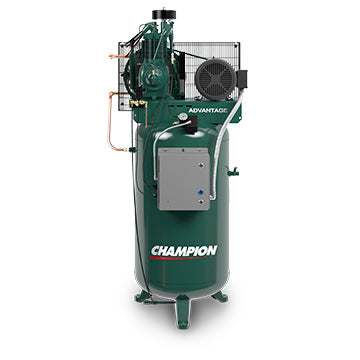

Champion Advantage Reciprocating Air Compressors
Built for
Professional Shop Air
Support
System Sizing & Installation
Coverage
Nationwide
Regular price
$4,606.86
Financing available.
Learn more
Final fitment, freight, lead time, and order details are confirmed by Region Equipment before completion.
Product overview
Shop air, configured for your operation.
Champion Advantage packages combine a two-stage compressor with factory-installed equipment. Compare simplex and duplex layouts, receiver sizes and electrical options, then choose the stock package for your shop.
Package design
- Two-stage, splash-lubricated pumps.
- Simplex and duplex package choices.
- Aftercooler inclusion shown for each stock number.
Plan your air system
- Match voltage and phase to your facility.
- Size airflow for tools running at the same time.
- Plan for ventilation, drainage and air treatment.
Selected packageVR5-8
Stock no. ADVC-S01
230 V / 1-phase · Aftercooler not included
Air performance
- Air delivery at rated pressure
- 17.0 ACFM at 175 PSIG
- Compression stages
- Two-stage
- Package layout
- Simplex · one pump
Motor & electrical
- Motor power
- 5 hp
- Voltage
- 230 V
- Phase
- 1-phase
Receiver & equipment
- Receiver
- 80 gal vertical
- Air-cooled aftercooler
- Not included
Product documents
Series brochure Champion product informationUse the installation and service manual supplied for your exact package.
Air delivery is stated at the pressure shown. Order by the selected stock number and electrical supply. Images illustrate the product family.
Choose your compressor package.
Each stock number identifies a fixed motor, receiver, electrical supply and equipment package.
Selected package
VR5-8
ADVC-S01
- Motor power
- 5 hp
- Receiver
- 80 gal vertical
- Electrical supply
- 230 V / 1-phase
- Air delivery
- 17.0 ACFM at 175 PSIG
Package details
- Two-stage, splash-lubricated pump design
- 80 gal vertical receiver
- Air-cooled aftercooler not included
Air demand
Compare air delivery at the pressure your tools require, allowing for equipment that runs simultaneously.
Electrical supply
Choose the exact voltage and phase available in your facility. These selections identify separate factory packages.
Receiver layout
Choose the tank size and orientation that suit your available floor space and service access.
Included equipment
Review the selected stock number for aftercooler inclusion.
Factory packages
The stock number identifies the electrical configuration and included equipment.
Two-stage compression
Splash-lubricated compressor pumps are used across the Advantage family.

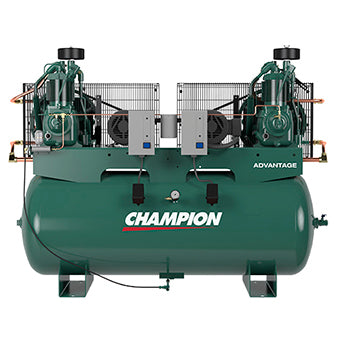

Simplex or duplex
Simplex units use one pump; duplex units use two. Duplex motor power is shown per motor.

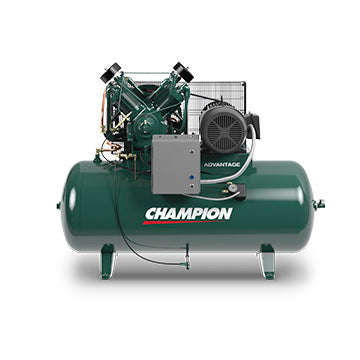

Receiver choices
Vertical and horizontal tank layouts are available across the retained model range.
Size the system
Review operating pressure and combined tool demand before selecting the package. Plan downstream filtration, drying and distribution with your installer.
Prepare electrical service
Have the installer verify voltage, phase and required electrical protection against the exact package manual.
Plan the location
Allow for ventilation, receiver mounting, vibration isolation, drainage and routine service access.
Commission & maintain
Use the supplied package manual for startup and service. Region Equipment can coordinate installation and ongoing support.
Warranty
Champion lists three-year compressor-pump coverage and one-year package coverage. Written warranty terms, maintenance requirements and exclusions apply. Extended coverage is separate and is not included automatically.
Shipping & lead time
Freight, unloading arrangements and delivery timing are confirmed for the selected package and destination. Installation and commissioning can be coordinated with Region Equipment.
