At a glance
- Required drive power
- 20–30 hp compressor / 7.5–10 hp vacuum drive (separate)
- Receiver
- No receiver
- Air delivery
- 110 / 138 / 168 CFM at 60 PSIG for 20 / 25 / 30 hp compressor operation

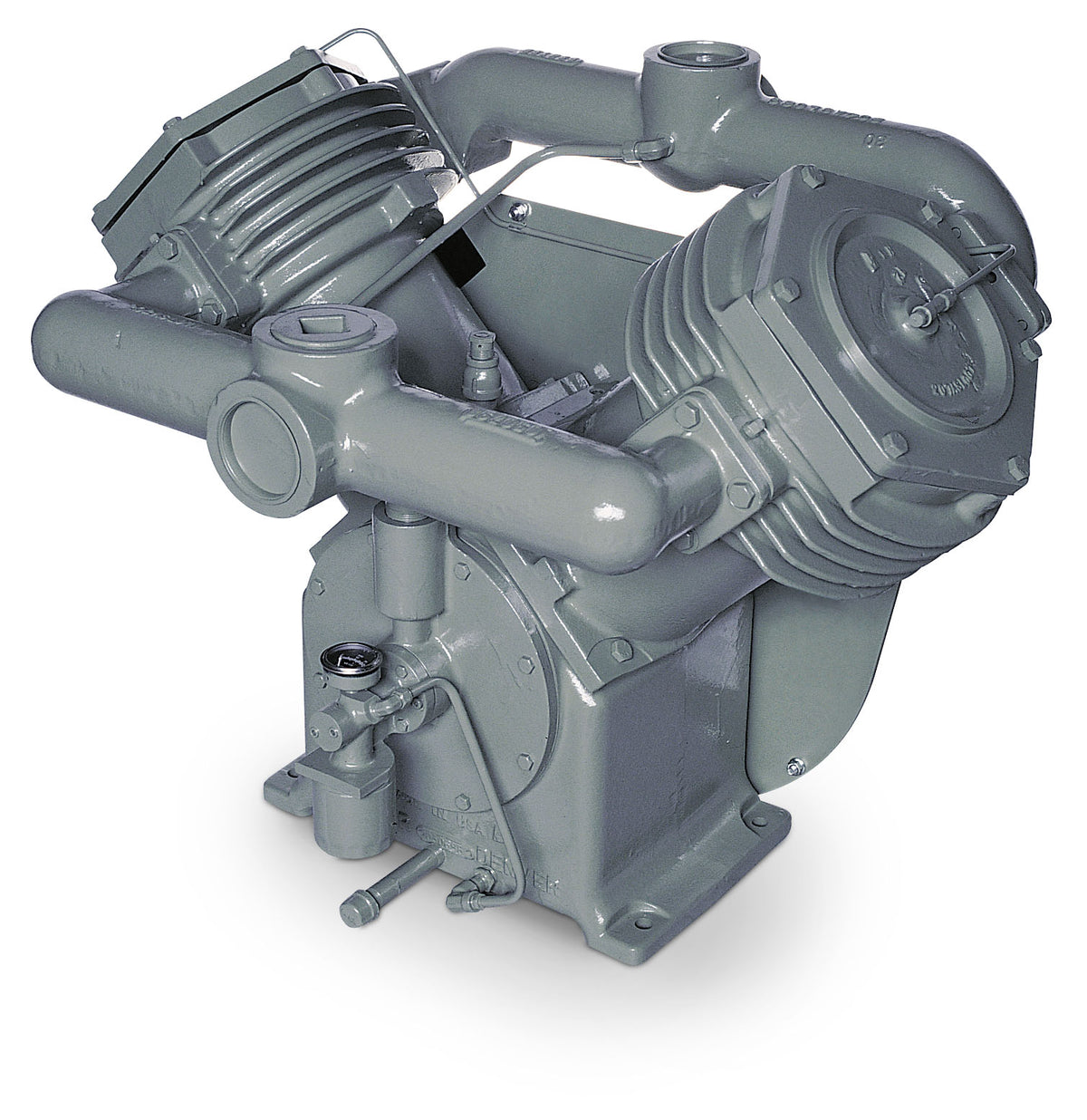

Champion A-Series Bare Compressors and Vacuum Pumps
Built for
Compressor & Vacuum Pumps
Support
System Integration
Coverage
Nationwide
Regular price
$12,734.94
Financing available.
Learn more
Final fitment, freight, lead time, and order details are confirmed by Region Equipment before completion.
Product overview
Bare pumps for compressor and vacuum systems.
These A-Series APO models are pressure-lubricated bare compressor and vacuum pumps for integration into a designed system. Select the rotation and valve configuration. A drive motor, receiver and complete installation package are not included.
Package design
- Industrial compressor systems
- Vacuum systems
- Bare pump integration
Plan the complete system.
- Specify compressor or vacuum duty.
- Select drive power, speed and rotation.
- Plan the complete motor, mounting and control assembly.
Selected pumpAPOGAA-CH
Manufacturer part number APOGAA-CH
Counter-clockwise viewed from sheave end · Suction unloading valves (SUV)
Operating requirements
- Maximum compressor pressure
- 60 PSIG
- Maximum vacuum
- 28 in. Hg; flow at this depth is not rated in the performance sheet
- Compressor drive requirement
- 20–30 hp; 698 / 885 / 1072 RPM at 20 / 25 / 30 hp
- Vacuum drive requirement
- 7.5–10 hp; 739 / 937 RPM
- Compressor performance at 60 PSIG
- 110 / 138 / 168 CFM at 60 PSIG for 20 / 25 / 30 hp compressor operation
Pump configuration
- Stages
- Single-stage
- Lubrication
- Pressure lubricated
- Rotation
- Counter-clockwise viewed from sheave end
- Valves
- Suction unloading valves (SUV)
- Bore and stroke
- 7.875 in. bore × 4.5 in. stroke
Assembly and integration
- Pump dimensions
- 41 × 29 × 30 in. (L × W × H)
- Pump weight
- 750 lb
- Drive motor
- Separate drive motor and system integration required
- Receiver
- Not included
Product documents
Download specification sheet Download series brochure Manufacturer product informationBrochures and performance sheets are family references. Use the installation and service manuals supplied for your exact pump and engineered assembly.
Bare pump only. Motor and receiver are not included. Airflow depends on drive speed and duty. Images illustrate the family.
Choose rotation and valves.
Select the manufacturer part number, then review the drive and integration requirements.
Selected pump
APOGAA-CH
APOGAA-CH
- Required drive
- 20–30 hp compressor / 7.5–10 hp vacuum drive (separate)
- Receiver
- No receiver
- Drive
- Separate drive required
- Air delivery
- 110 / 138 / 168 CFM at 60 PSIG for 20 / 25 / 30 hp compressor operation
Package details
- Bare APO pump assembly
- Counter-clockwise sheave-end rotation
- Suction unloading valves (SUV)
- Drive motor and receiver are not included
Application
Use the APO performance table at the selected pressure or vacuum level to choose drive power and speed.
Part number
The manufacturer part number identifies rotation and valves.
Included equipment
A bare pump requires separate motor, receiver and engineered system equipment.
Bare pump assembly
The selected APO pump requires a correctly sized drive and system integration.
Pressure lubrication
A crankshaft-driven oil pump supplies lubrication to the pump's running components.
Rotation and valves
Models differ by clockwise or counter-clockwise rotation and suction-unloading or plain valves.
Define the application
Specify compressor or vacuum duty, required flow and operating pressure or vacuum depth. Choose drive power and speed from the APO performance data.
Match rotation and valves
Rotation is viewed from the sheave end. Confirm clockwise or counter-clockwise rotation and the selected valve arrangement before ordering.
Design the complete system
The bare pump requires a drive, mounting, controls and application-specific piping. A receiver and motor are not included.
Commission the assembly
Use the installation and service documents for the supplied pump and engineered assembly; Region Equipment can coordinate application review and service.
