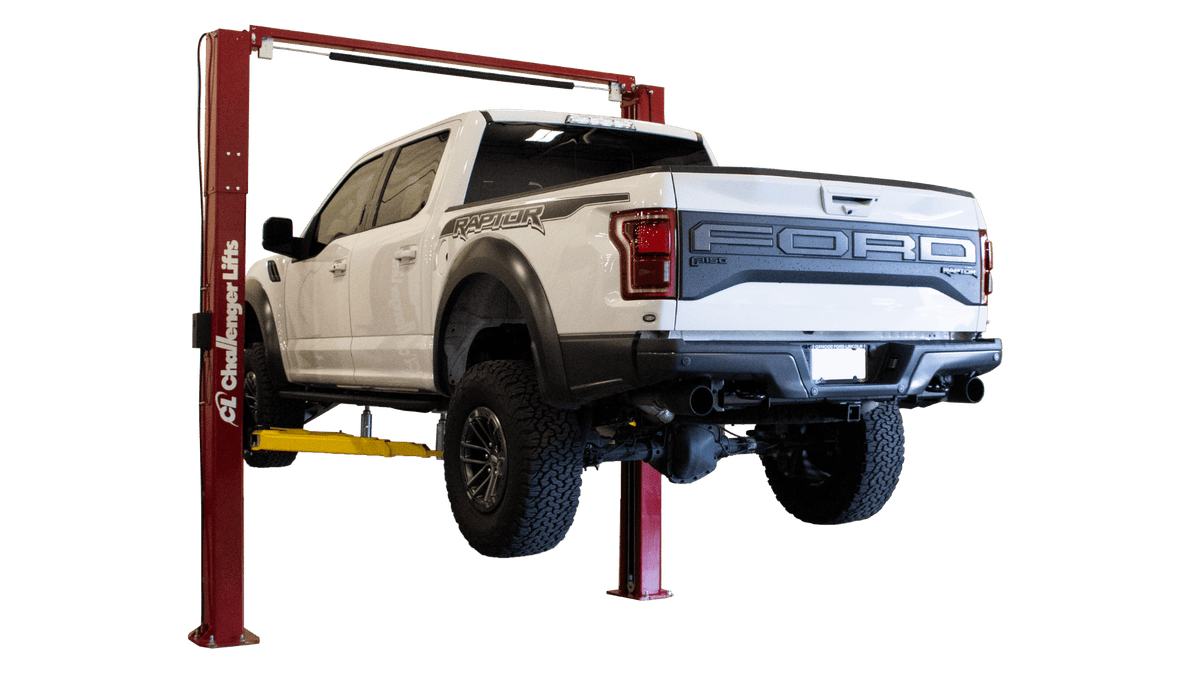

Challenger VLE10 10,000 lb Versymmetric two-post lift

Challenger VLE10 10,000 lb Two-Post Lift

SKU: VLE10 Category: Vehicle Lifts
Built for Professional Service Facilities
Support Installation Available
Coverage Nationwide
$5,732.56
Financing available. Learn more
CALL NOW (866) 608-5565

Final fitment, freight, lead time, and order details are confirmed by Region Equipment before completion.

Lift overview

Built around your service bay.

The Challenger VLE10 is a 10,000 lb Versymmetric two-post lift with 3-stage front and 2-stage rear arms for flexible vehicle spotting.

Built for your workflow

  • Automotive service
  • Confirm vehicle lifting points, load distribution and fit.

Plan your bay

  • Have a qualified installer verify the concrete, anchors, ceiling clearance and electrical supply against the exact model manual.
  • Confirm vehicle weight distribution, individual arm limits and approved lifting points; rated total capacity alone does not establish fit.
Installation details
Selected modelVLE10

Model VLE10

Selected configuration

Model
VLE10
Configuration
Versymmetric® 2-Post Lift With Cl10V3 Style Lock Release, 3-Stage Front Arm Design (143.875 In. Height)

Manufacturer specifications · selected model

Lifting Capacity
10,000 lbs
Lift Configuration
Symmetric and Asymmetric
Arm Configuration
3-Stage Versymmetric® Front/2-Stage Rear
Max Load Per Arm
2500 lbs
Rise Height (screw pads at highest position)
74.75"
Overall Height
Standard: 143.875" Extended Height: 167.875"
Overall Width
131.625"
Drive-Thru Clearance
98.375"
Floor to Overhead Switch
Standard: 137" Extended Height: 161"
Front Arm Reach
22.3125"-39.375"
Rear Arm Reach
38.375"-55.375"
Screw Pad Height
4.25"-6.75"
Between Columns
110.25"
Motor/Voltage
2HP, 208v-230v, 60Hz, 1Ph
Rise Time
44s
Ceiling Height Required
Standard: 12' Extended Height 14'

Family specifications & equipment

Capacity
10,000 lb lifting capacity
Design & equipment
Versymmetric configuration
Design & equipment
3-stage front and 2-stage rear arms
Dimensions & reach
74.75 in. rise height
Power & controls
208–230V, single-phase power
Design & equipment
ALI/ETL certified

Manuals & specifications

Installation, operation & maintenance manual Download spec sheet Manufacturer product page

Use the manual for the selected control package and model revision.

Family specifications describe the published equipment. Options may change dimensions, power requirements, certification and included equipment. Confirm the exact selected model and supplied documentation before ordering or installation.
