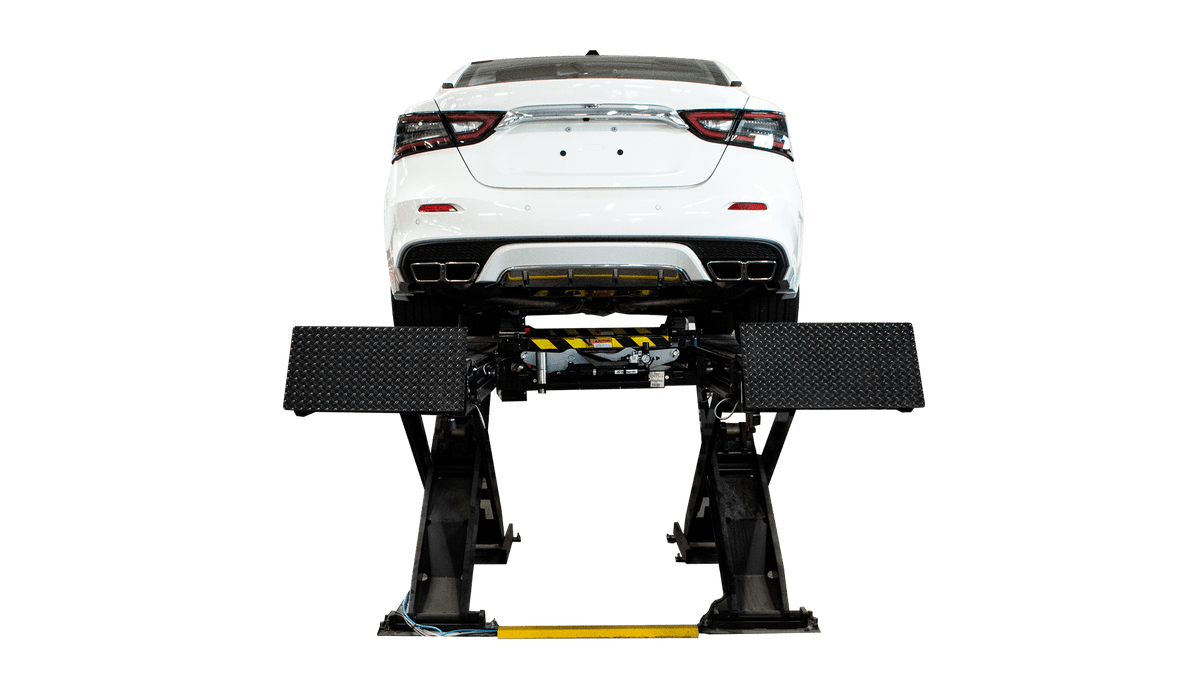

Challenger SX14 14,000 lb scissor alignment lift

Challenger SX14 Series 14,000 lb Scissor Alignment Lift

SKU: SX14-ER Category: Vehicle Lifts
Built for Professional Service Facilities
Support Installation Available
Coverage Nationwide
$44,607.37
Financing available. Learn more
CALL NOW (866) 608-5565

Final fitment, freight, lead time, and order details are confirmed by Region Equipment before completion.

Lift overview

Built around your service bay.

The Challenger SX14 Series is a 14,000 lb scissor alignment lift available in surface-mount, flush-mount, and extended-ramp configurations. It includes alignment-focused productivity features and two 7,000 lb rolling jacks in the priced packages.

At a glance

Rated capacity
14,000 lb lifting capacity
Lift design
Scissor Alignment Lift
Configurations
3 available
View full specifications

Built for your workflow

  • Vehicle alignment
  • General service with the selected alignment package

Plan your bay

  • Verify the floor or pit, installation clearances, power supply and any compressed-air requirement against the selected configuration manual.
  • Confirm platform contact points, load distribution and approved vehicle dimensions before lifting.
Installation details
Selected modelSX14-ER

Model SX14-ER

Selected configuration

Model
SX14-ER
Configuration
Alignment Lift, Extended Approach Ramps (78.5In Long), 14K Capacity, Single Scissor With 25.5 In. Runway Width, Surface Mount, 183 In. Max Wheelbase, 174.75 In. Max 2 Wheel Alignment, Locking Alignment Plates, Auto On/Off Light Feature, Two 7K Capacity Rolling Jacks, One Pair Of Stainless Steel Turn Plates

Manufacturer specifications · selected model

Description
Extended Ramps
Lifting Capacity*
14,000 lbs.
Rise Height
77"
Overall Length
283"
Overall Width
91.25”
Width of Runways
25.5”
Between Runways
40”
Lowered Height
10.5”
Maximum Wheelbase
183”
Wheel Alignment (Max.)
176"
Wheel Alignment (Min.)
70.75"
Motor
3 HP
Voltage (Single Phase Std.)
208-240v (23 FLA)
Speed of rise
75 s
Air Required (filtered/lubricated)
90 - 120 psi (20CFM)
Min. Recommended Bay Size
14' x 28'
ALI/ETL Certified
Yes
Color Available
Black

Family specifications & equipment

Capacity
14,000 lb lifting capacity
Dimensions & reach
25.5 in. runways; 183 in. maximum wheelbase
Design & equipment
Standard, flush-mount, and extended-ramp configurations
Power & controls
208–240V, single-phase power; 90–120 psi air
Dimensions & reach
Approximately 75-second rise time
Design & equipment
ALI/ETL certified

Manuals & specifications

Installation, operation & maintenance manual Download spec sheet Manufacturer product page

Use the manual for the selected control package and model revision.

Family specifications describe the published equipment. Options may change dimensions, power requirements, certification and included equipment. Confirm the exact selected model and supplied documentation before ordering or installation.
