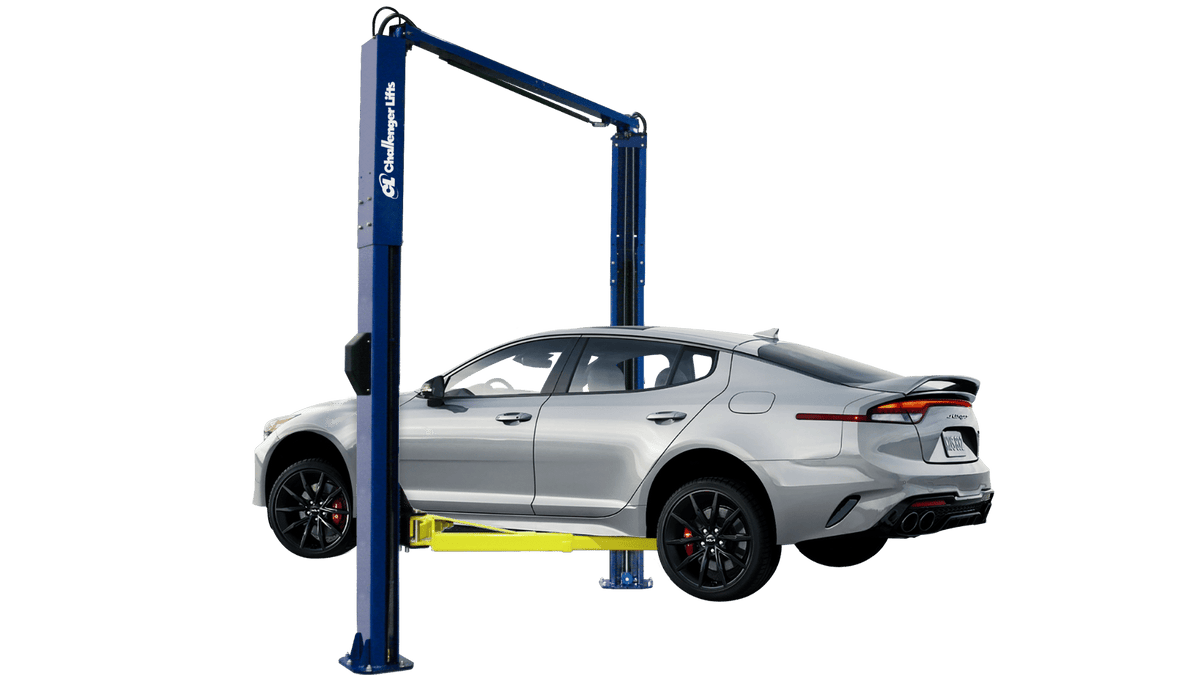

Challenger SA10 10,000 lb two-post lift

Challenger SA10 10,000 lb Two-Post Lift

SKU: SA10 Category: Vehicle Lifts
Built for Professional Service Facilities
Support Installation Available
Coverage Nationwide
$5,822.64
Financing available. Learn more
CALL NOW (866) 608-5565

Final fitment, freight, lead time, and order details are confirmed by Region Equipment before completion.

Lift overview

Built around your service bay.

The Challenger SA10 is a 10,000 lb two-post lift that can be installed in symmetric or asymmetric configuration. Adjustable height and width options support a range of service-bay layouts.

Built for your workflow

  • Automotive service
  • Confirm vehicle lifting points, load distribution and fit.

Plan your bay

  • Have a qualified installer verify the concrete, anchors, ceiling clearance and electrical supply against the exact model manual.
  • Confirm vehicle weight distribution, individual arm limits and approved lifting points; rated total capacity alone does not establish fit.
Installation details
Selected modelSA10

Model SA10

Selected configuration

Model
SA10
Configuration
Symmetric/Asymmetric 2-Post Lift With Mirrored S-Shaped Column And Adjustable Width (136.5 To 142.5 In.); Overall Height Adjsutable Up To 142.5 In.

Manufacturer specifications · selected model

Lifting Capacity
10,000 lbs.
Lifting Configuration
Symmetric: Symmetric; Asymmetric: Asymmetric
Arms
3-stage front/2-stage rear
Rise Height
74.5”
Overall Height
136.5” / 142.5”
Overall Height (Cylinder Extended)
142.5”
2’ Height Extension Available
Yes
Overall Width
Symmetric: 129” / 135”; Asymmetric: 131.5” / 137.5”
Drive-Thru Clearance
Symmetric: 92.75” / 98.75”; Asymmetric: 88.5” / 94.5”
Floor to Overhead Switch
131.125” / 137.125”
Front Arm Reach
22.375” / 41.5”
Rear Arm Reach
38.25” / 59”
Screw Pad Height
4.75” / 6.875”
Inside Columns
Symmetric: 106.75” / 112.75”; Asymmetric: 101.5” / 107.5”
Motor / Voltage
2HP, 208v-230v, 60Hz, 1Ph
Speed of Rise
43 s
Ceiling Height Required
12’
ALI/ETL Certified
Yes
Colors Available
Red, Blue

Family specifications & equipment

Capacity
10,000 lb lifting capacity
Design & equipment
Symmetric or asymmetric installation
Design & equipment
3-stage front and 2-stage rear arms
Dimensions & reach
74.875 in. rise height
Dimensions & reach
Approximately 44-second rise time
Power & controls
208–230V, single-phase power; ALI/ETL certified

Manuals & specifications

Installation, operation & maintenance manual Download spec sheet Manufacturer product page

Use the manual for the selected control package and model revision.

Family specifications describe the published equipment. Options may change dimensions, power requirements, certification and included equipment. Confirm the exact selected model and supplied documentation before ordering or installation.
