Challenger SRM10 Series 10,000 lb Scissor Lift

SKU: SRM10 Category: Vehicle Lifts
Built for Professional Service Facilities
Support Installation Available
Coverage Nationwide
$6,134.81
$7,827.21 $6,134.81
Financing available. Learn more
CALL NOW (866) 608-5565

Final fitment, freight, lead time, and order details are confirmed by Region Equipment before completion.

Lift overview

Built around your service bay.

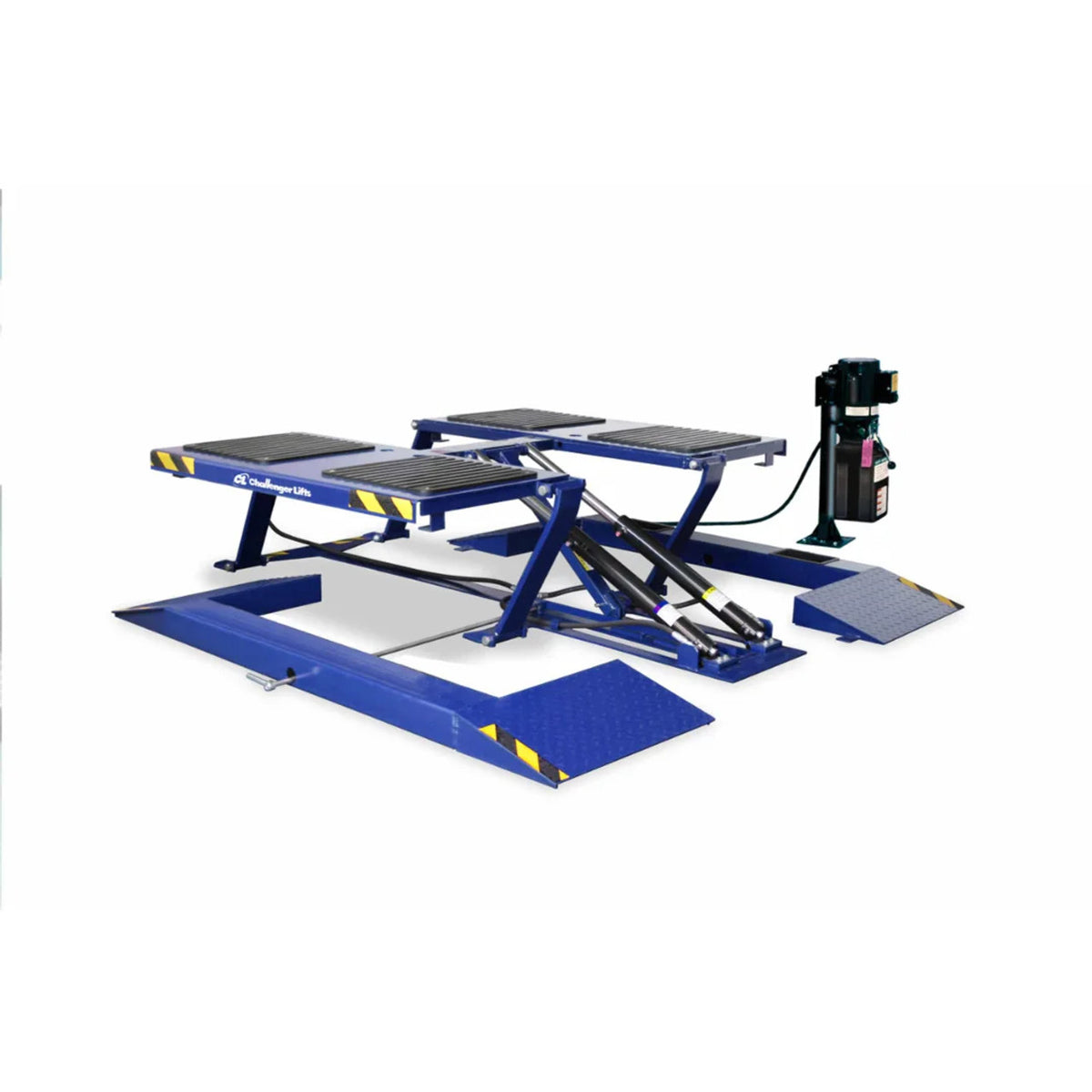

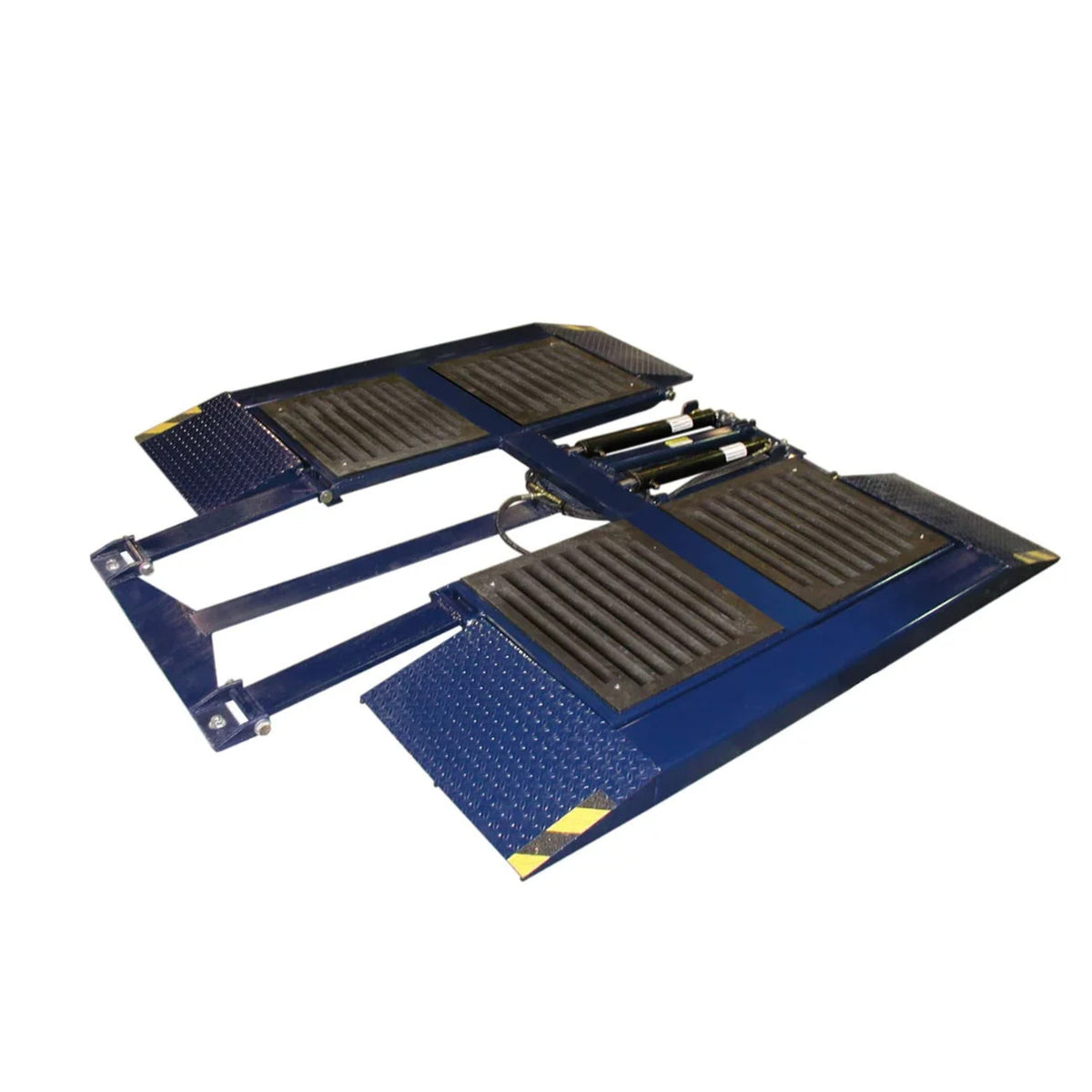

The Challenger SRM10 is a 10,000 lb short-rise lift with a 22-inch raised height, two-position spotting blocks and three locking positions. Choose the exact power-unit configuration for your bay.

Built for your workflow

  • Automotive service
  • Confirm vehicle lifting points, load distribution and fit.

Plan your bay

  • Verify the floor or pit, installation clearances, power supply and any compressed-air requirement against the selected configuration manual.
  • Confirm platform contact points, load distribution and approved vehicle dimensions before lifting.
  • The mobile power-unit document applies only when that option is supplied.
Installation details
Selected modelSRM10

Model SRM10

Selected configuration

Model
SRM10
Configuration
Short-Rise Lift With Electric/Hydraulic Power Unit. Includes 4 Two Position Adapter Blocks, Steel With Rubber Pads (Part Sr10-001).

Manufacturer specifications · selected model

Lifting Capacity
10,000 lbs.
Raised Height
22”
Lowered Height
4.25”
Locking Bar Heights
13.75”, 18.325”, 21.25”
Low Adapter Position
4.75”
High Adapter Position
6.75”
Overall Width
85” (+ 2.5” for handle)
Outside Width of Platforms
72”
Width between Platforms
23”
Platform Overall Length
50”
Ramp & Platform Overall Length
82.5”
Overall Length
92.875”
Rearward Movement
13.25”
Motor / Voltage
1HP, 115v, 60Hz, 1Ph
ALI/ETL Certified
Yes
Color Available
Black

Manufacturer specifications · confirm selected package

Lifting Capacity
10,000 lbs.
Raised Height
22”
Lowered Height
4.25”
Locking Bar Heights
13.75”, 18.325”, 21.25”
Low Adapter Position
4.75”
High Adapter Position
6.75”
Overall Width
85” (+ 2.5” for handle)
Outside Width of Platforms
72”
Width between Platforms
23”
Platform Overall Length
50”
Ramp & Platform Overall Length
82.5”
Overall Length
92.875”
Rearward Movement
13.25”
Motor / Voltage
1HP, 115v, 60Hz, 1Ph
ALI/ETL Certified
Yes
Color Available
Black

Manuals & specifications

Installation, operation & maintenance manual Additional manufacturer manual Download spec sheet Manufacturer product page

Use the manual for the selected control package and model revision.

Family specifications describe the published equipment. Options may change dimensions, power requirements, certification and included equipment. Confirm the exact selected model and supplied documentation before ordering or installation.
