At a glance
- Rated capacity
- 10,000 lbs.
- Lift design
- Inground Lift
- Configurations
- 4 available
Challenger EV1020 Series 10,000 lb Inground Lift
Built for
Professional Service Facilities
Support
Installation Available
Coverage
Nationwide
Regular price
$12,726.56
Regular price
$18,722.58
Sale price
$12,726.56
Financing available.
Learn more
Final fitment, freight, lead time, and order details are confirmed by Region Equipment before completion.
Lift overview
Built around your service bay.

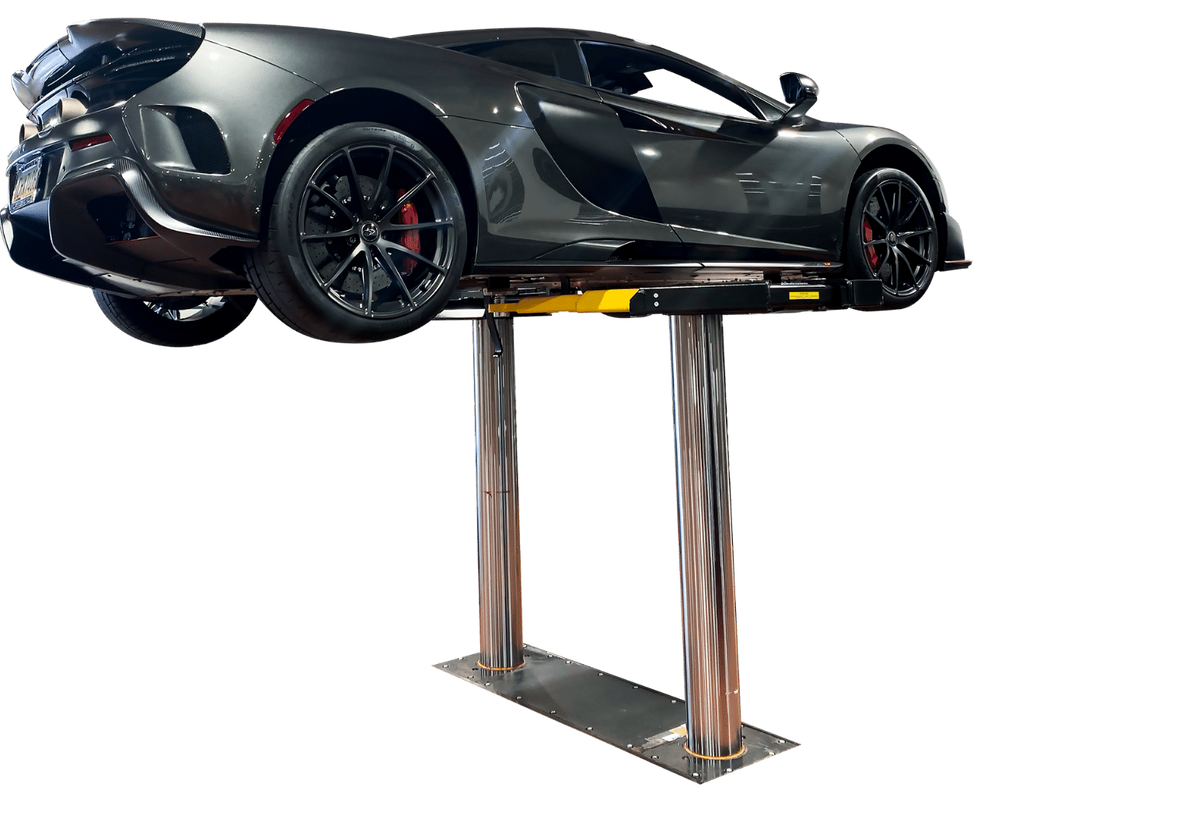

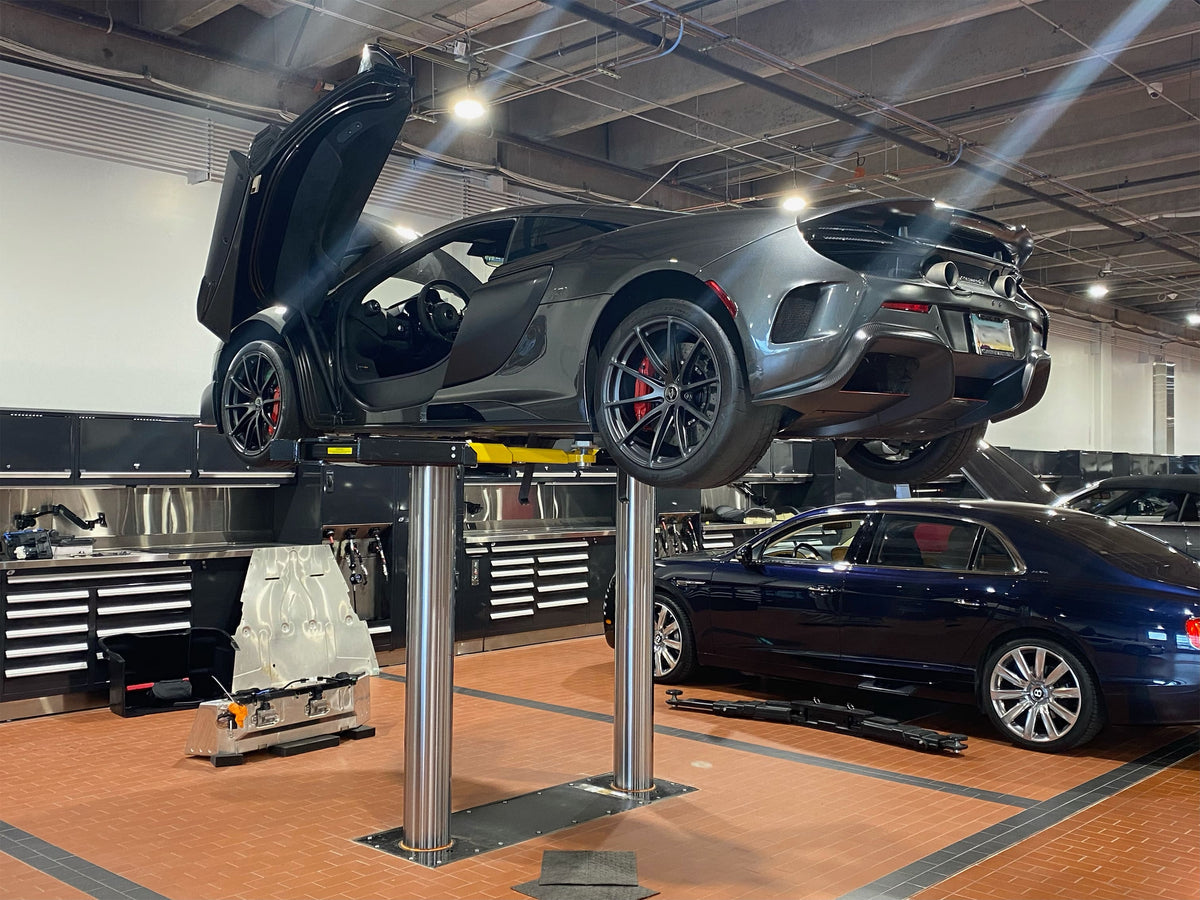

Challenger’s electric hydraulic cassette-style 10,000 lb. capacity inground lift meets the demands of professional service facilities. With a smaller footprint, your shop can maximize service bays. The EV1020 has 3-stage front and rear arms or a fixed drive-on pad. We added Quick Cycle™ models that can rise in just 27 seconds and lower in only 17 seconds. Expand your service potential with our most versatile, easy-to-operate inground lift.
Built for your workflow
- Automotive service
- Confirm vehicle lifting points, load distribution and fit.
Plan your bay
- Confirm the cassette, pit dimensions, drainage, concrete, electrical supply and compressed-air requirements before construction.
- Have a qualified installer match the lift, arms and controls to the supplied model documentation and vehicle lifting points.
Selected modelEV1020
Model EV1020
Selected configuration
- Model
- EV1020
- Configuration
- Electric/Hydraulic Inground Lift With 8.5 In. Chrome Pistons, Wide Drive-Through 3-Stage Arms And Double Telescoping Screw Pads
Manufacturer specifications · selected model
- Lifting Capacity
- 10,000 lbs.
- Arms
- 3-stage front/3-stage rear
- Stroke
- 72”
- Rise Height
- 78”
- Width Overall
- 97"
- Drive-Thru Clearance
- 87”
- Reach (Arm Minimum)
- 19.625”
- Reach (Arm Maximum)
- 42.125”
- Screw Pad Height
- 3.875” - 6”
- Capacity
- 2,500 lbs. per arm
- Guide Plunger Diam.
- 8.5”
- Motor / Voltage
- 2HP, 208v-230v, 60Hz, 1Ph
- Speed of Rise
- 38 s
- Air Required
- 90 - 120 psi
- ALI/ETL Certified
- Yes
- Super Structure Colors
- Red, Blue, Black
Manufacturer specifications · confirm selected package
- Lifting Capacity
- 10,000 lbs.
- Arms
- 3-stage front/3-stage rear
- Stroke
- 68”
- Rise Height
- 74”
- Width Overall
- 97"
- Drive-Thru Clearance
- 87”
- Reach (Arm Minimum)
- 19.625”
- Reach (Arm Maximum)
- 42.125”
- Screw Pad Height
- 3.875” - 6”
- Capacity
- 2,500 lbs. per arm
- Guide Plunger Diam.
- 8.5”
- Motor / Voltage
- 2HP, 208v-230v, 60Hz, 1Ph
- Speed of Rise
- 38 s
- Air Required
- 90 - 120 psi
- ALI/ETL Certified
- Yes
- Super Structure Colors
- Red, Blue, Black
Manuals & specifications
Installation, operation & maintenance manual Download spec sheet Manufacturer product pageUse the manual for the selected control package and model revision.
Family specifications describe the published equipment. Options may change dimensions, power requirements, certification and included equipment. Confirm the exact selected model and supplied documentation before ordering or installation.
Find the right configuration.
Compare column height, controls and equipment packages. Your selected model stays connected to the quote button above.
Selected model
EV1020
- Configuration
- Electric/Hydraulic Inground Lift With 8.5 In. Chrome Pistons, Wide Drive-Through 3-Stage Arms And Double Telescoping Screw Pads
Configuration includes
Verify the final package and any additional adapters for your vehicle application.
Design & equipment
Cassette-style inground construction.
Design & equipment

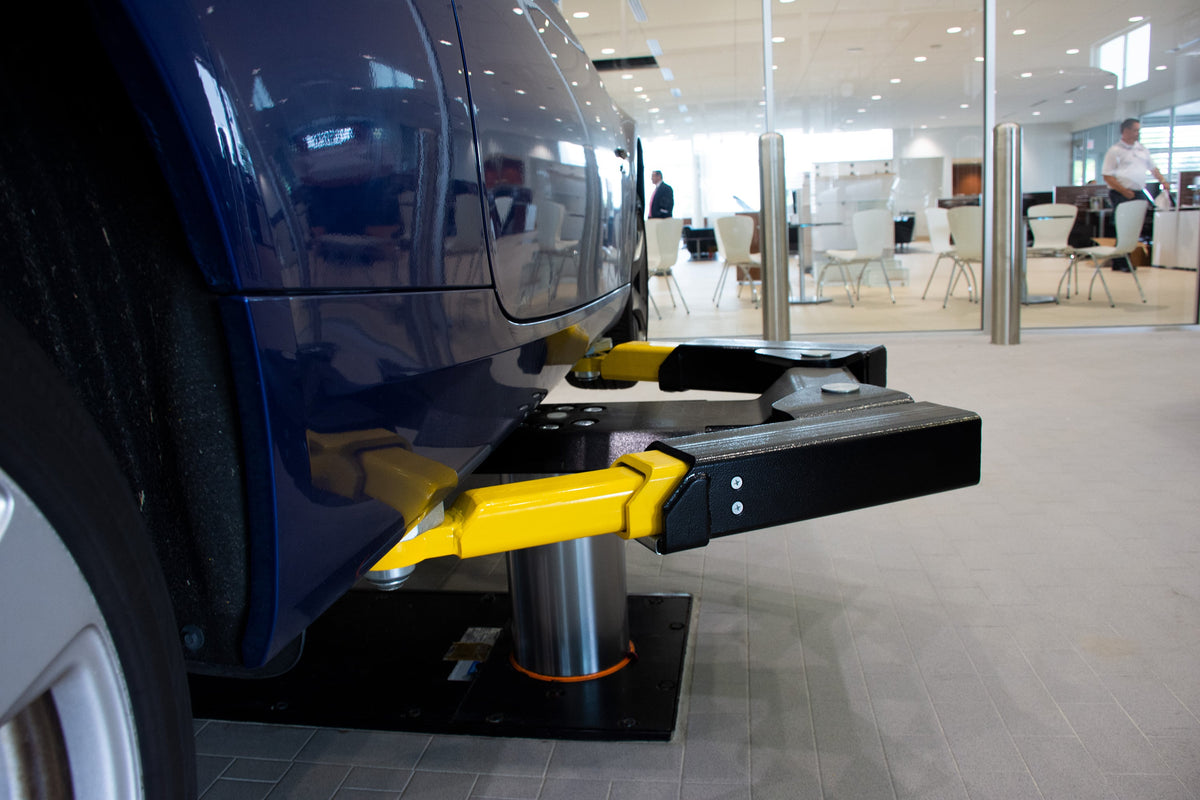

Three-stage front and rear arms.
Design & equipment
Mechanical locks with air release.
Installation & service
Confirm the cassette, pit dimensions, drainage, concrete, electrical supply and compressed-air requirements before construction.
Installation & service
Have a qualified installer match the lift, arms and controls to the supplied model documentation and vehicle lifting points.
Warranty
Confirm the manufacturer’s written warranty for the supplied model and installation with your quote.
Shipping & lead time
Freight, availability, lead time and unloading requirements are confirmed with your quote.
