At a glance
- Rated capacity
- 10,000 lb
- Lift design
- Two-post · Versymmetric®
- Arm system
- directSPOT™ front arms

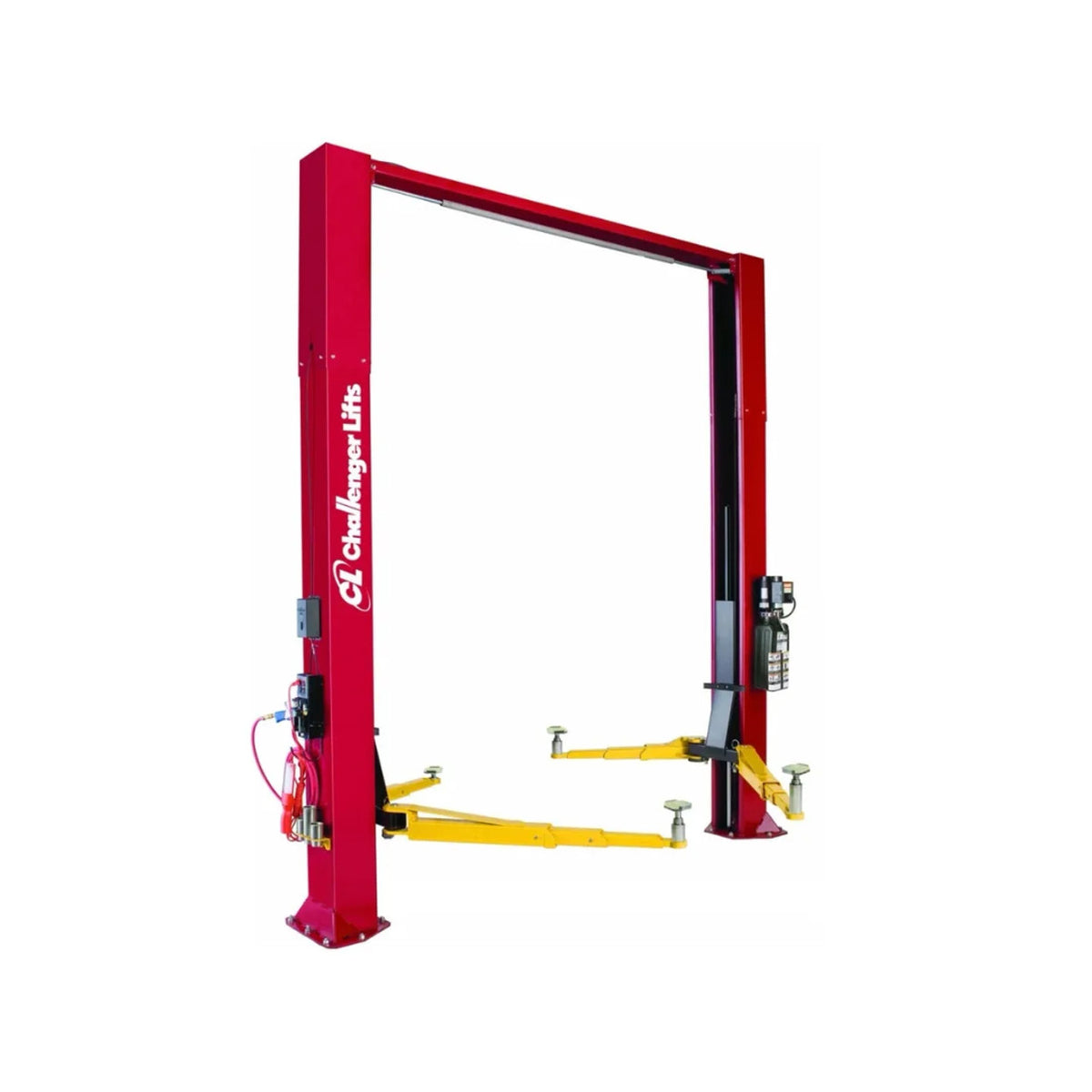

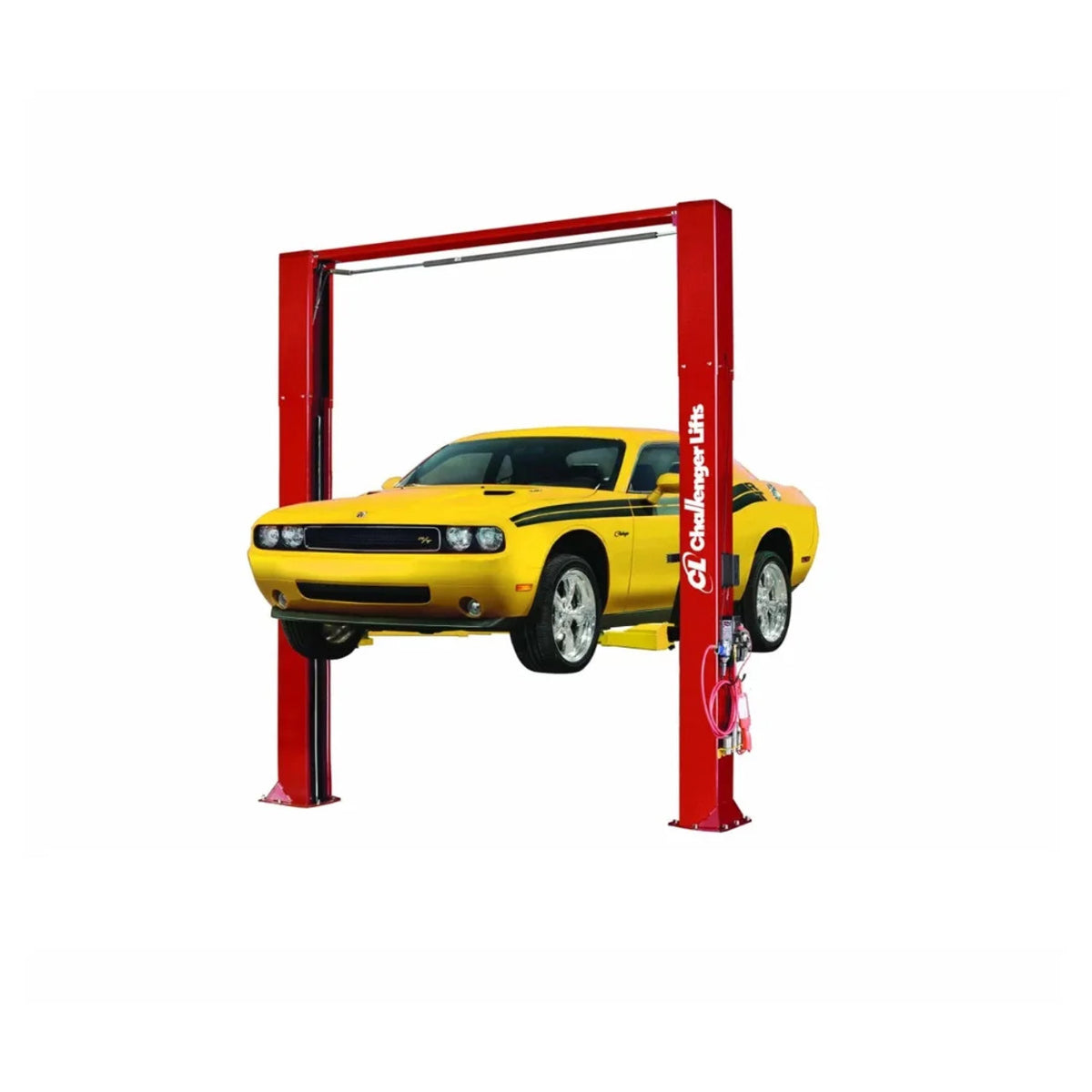

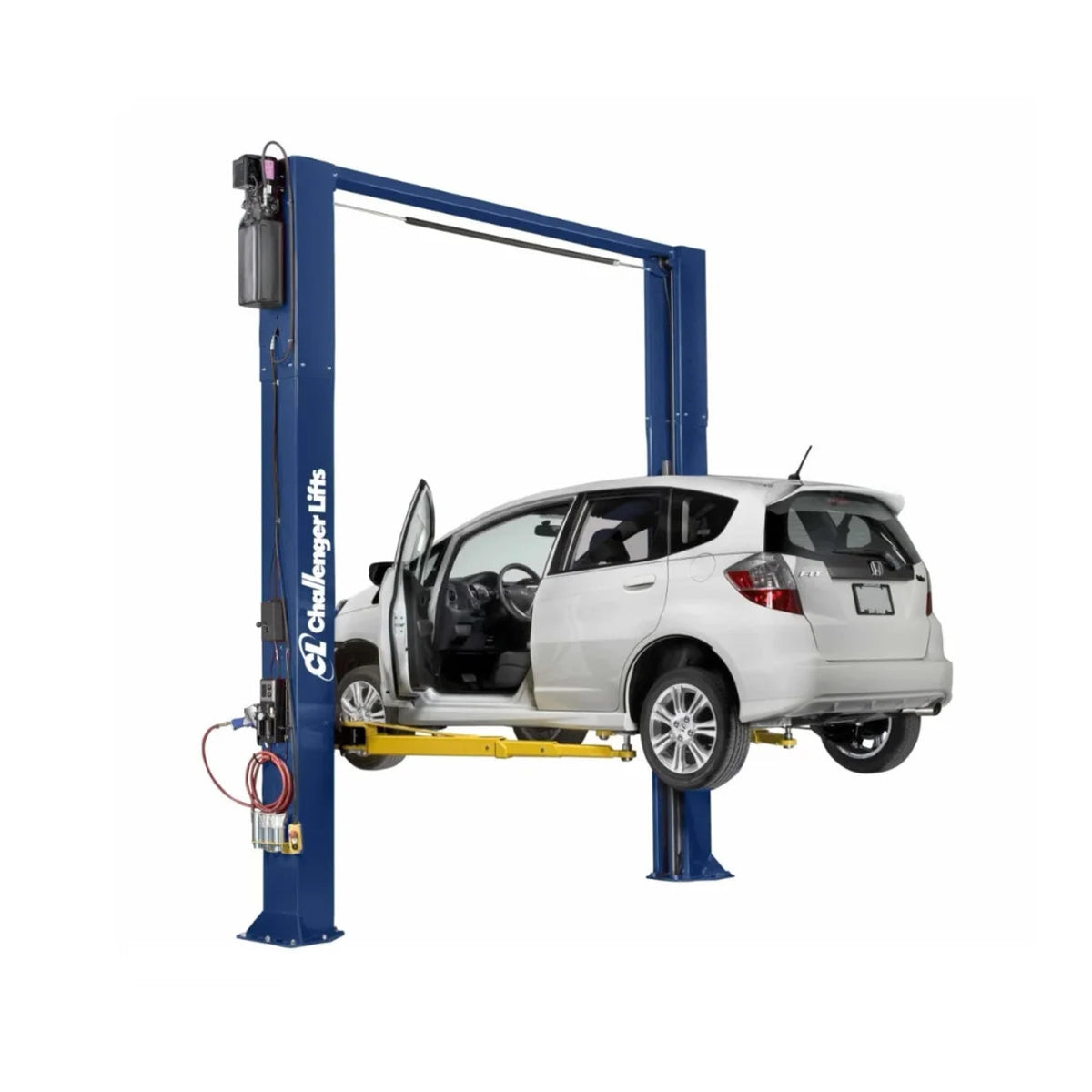

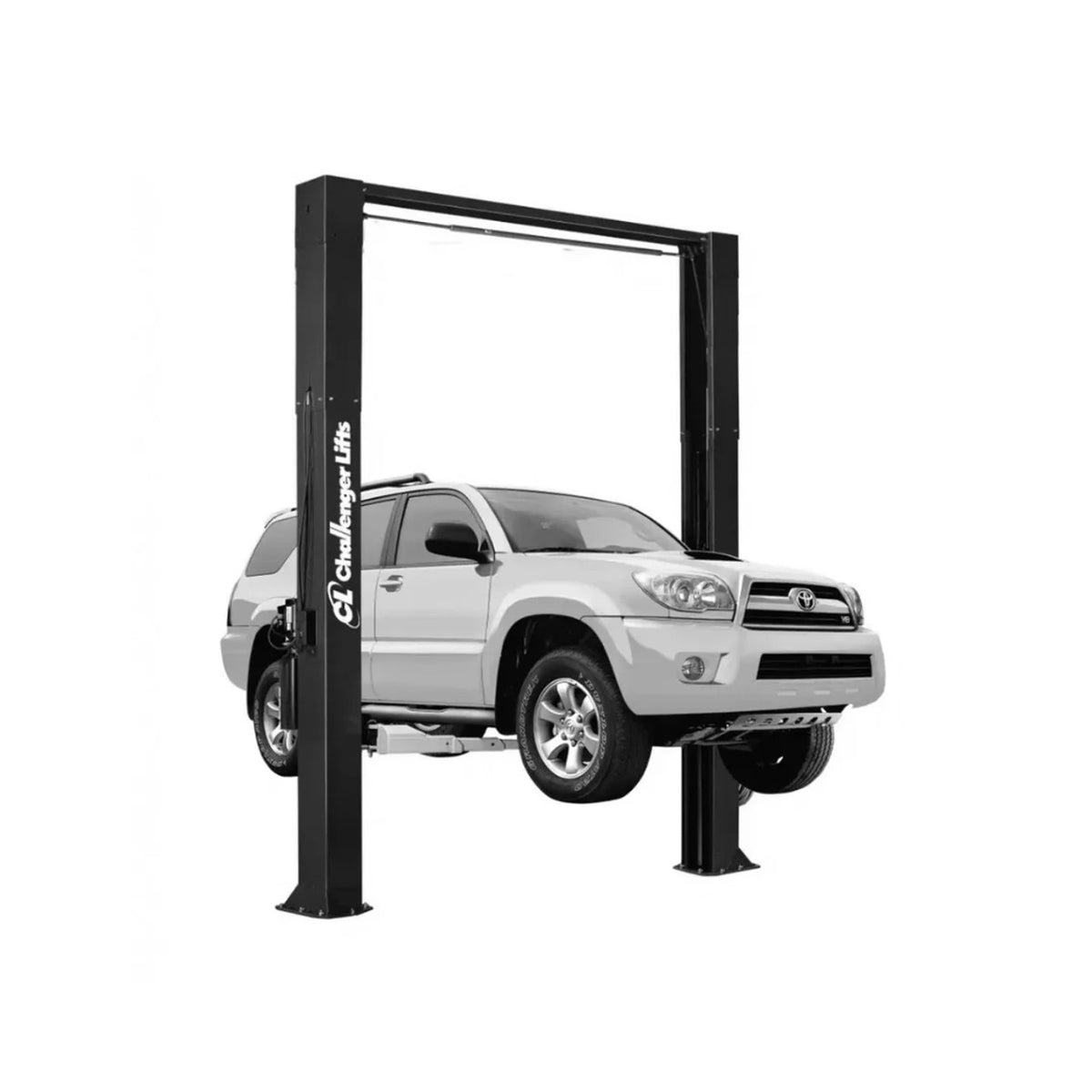

Challenger CL10AV3 Series 10,000 lb Two-Post Lift
10,000 lb two-post vehicle lift with three-stage arms.
Built for
Professional Service Facilities
Support
Installation Available
Coverage
Nationwide
Regular price
$7,722.67
Regular price
$11,110.00
Sale price
$7,722.67
Financing available.
Learn more
Final fitment, freight, lead time, and order details are confirmed by Region Equipment before completion.
Lift overview
Built around your service bay.
The Challenger CL10AV3 is a 10,000 lb two-post lift for general automotive service. Versymmetric® positioning and directSPOT™ arms help reach vehicle lifting points. Choose the column height, controls and equipment package that suit your bay.
Built for your workflow
- General automotive service
- Symmetric or asymmetric vehicle positioning
- Shops configuring lifts around bay height and workflow
Plan your bay
- Column height and overhead clearance
- Concrete condition and anchor layout
- Vehicle lifting points and weight distribution
Selected modelCL10AV3
Standard height · Conventional
Lifting & reach
- Lifting capacity
- 10,000 lb
- Individual arm rating
- 2,500 lb per arm
- Maximum rise
- 74 1/8 in.
- Arm configuration
- Three-stage front & rear
- Front arm reach
- 20–42 in.
- Rear arm reach
- 37 5/8–60 in.
- Screw pad height
- 3 7/8–6 1/8 in.
Bay dimensions
- Column height
- 134 or 140 in.
- Required ceiling height
- 144 in. minimum
- Overall width
- 138 1/2 / 144 1/2 / 150 1/2 in.
- Drive-through clearance
- 100 / 106 / 112 in.
- Inside columns
- 110 / 116 / 122 in.
Power & operation
- Standard electrical supply
- 2 hp · 208–230 V · 60 Hz · 1-phase
- Power controls
- Conventional controls
- Lift cycle
- Standard
- Installation environment
- Indoor installation
Manuals & specifications
Download manual · conventional controls Download manual · dual pendant controls Download spec sheetUse the manual for the selected control package and model revision.
Specifications are provided by the manufacturer and depend on the selected configuration. Confirm final dimensions, electrical requirements and vehicle fit before installation.
Find the right configuration.
Compare column height, controls and equipment packages. Your selected model stays connected to the quote button above.
Selected model
CL10AV3
- Column package
- Standard height
- Controls
- Conventional controls
- Lift cycle
- Standard
- Equipment package
- Standard arm package
Configuration includes
- directSPOT™ three-stage front arms
- Three-stage rear arms

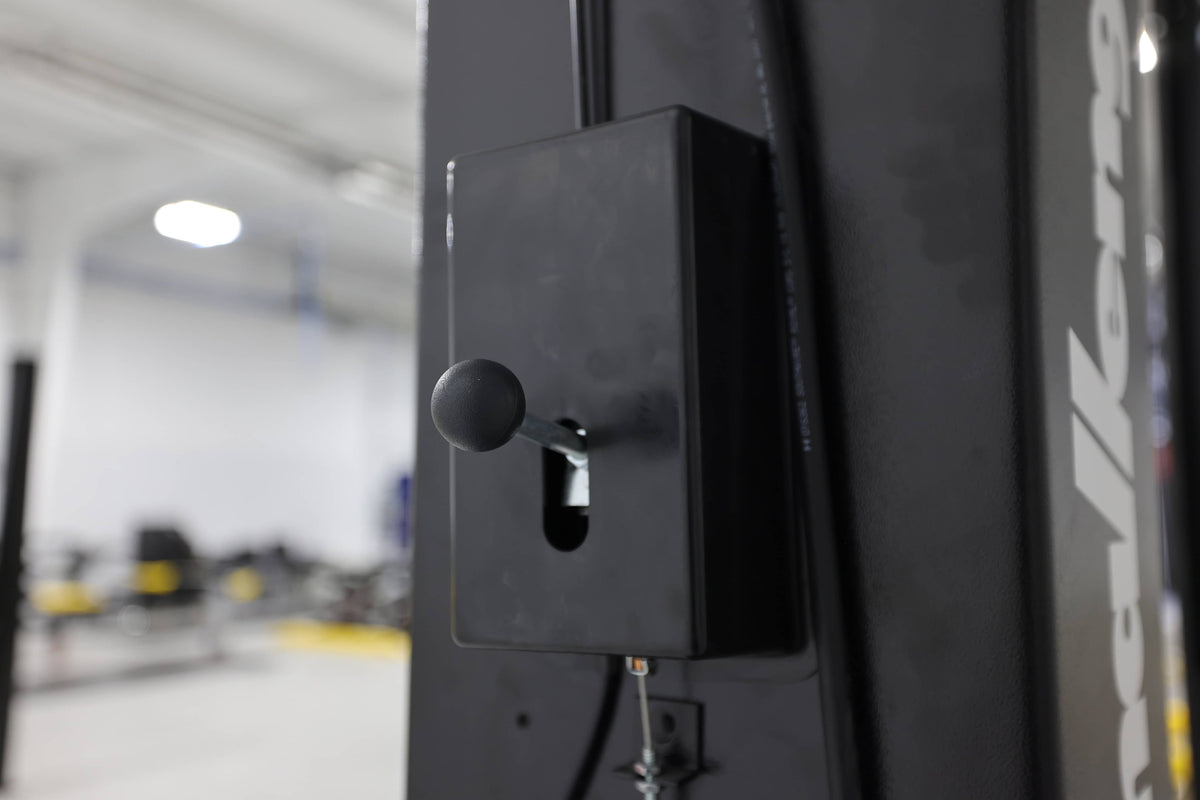

- Single-point mechanical lock release
Verify the final package and any additional adapters for your vehicle application.
Column height
Standard columns, 2 ft extensions or 3 ft extensions. Each requires the corresponding overhead clearance.
Controls
Conventional power controls or DPC dual pendant controls. Pendant packages include additional equipment.
QuickCycle
QC packages add a faster-cycle power unit. Electrical requirements depend on the selected package.
EV & short-arm packages
EV packages include adapters and footpads. SRA uses short, low-profile rear arms. Select the exact model to view its included equipment.
Versymmetric® positioning
Supports symmetric and asymmetric vehicle positioning in the same service bay.
directSPOT™ front arms
Offset, three-stage front arms help reach recommended lifting points.
Adjustable bay layout
Three installation widths, two standard column-height settings, and optional column extensions.

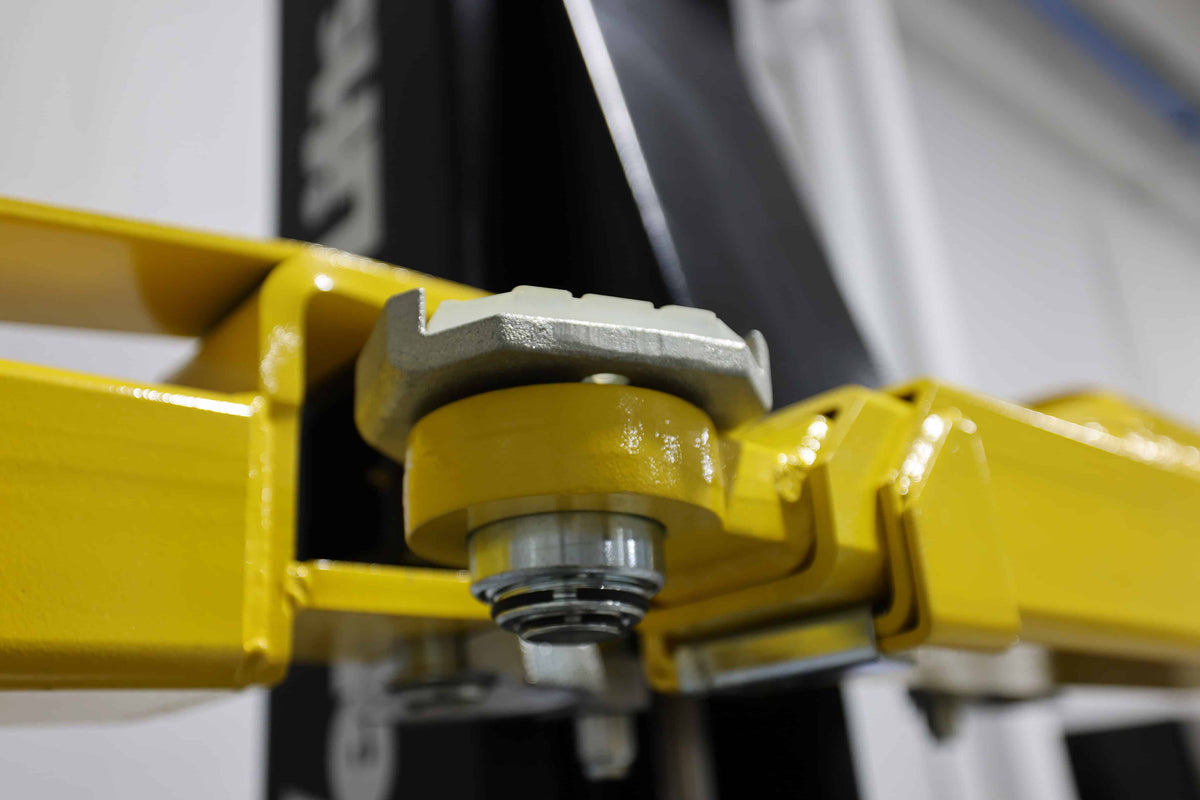

Telescoping screw pads
Adjustable pad height helps position the lift at the vehicle’s lifting points.
Confirm the bay
Match ceiling clearance to the selected column height and the vehicle at full rise. Extension models require additional clearance.
Verify the floor
Have a qualified installer verify the concrete condition, slab, anchor locations and installation layout against the applicable manual.
Plan the power supply
Verify voltage, phase and the dedicated circuit for the selected power unit before installation.
Match the vehicle
Check lifting points, arm reach and load distribution. The 10,000 lb total rating assumes the load is equally distributed across all four arms.
Warranty
Manufacturer’s warranty applies. Coverage depends on the supplied model and installation. Complete Challenger’s product registration and retain the warranty documents provided with your lift.
Shipping & lead time
Freight delivery is coordinated for your location. Lead time, freight charges and unloading requirements are confirmed with your quote.
