At a glance
- Rated capacity
- 18,000 lbs.
- Lift design
- Four-Post Lift
- Configurations
- 2 available

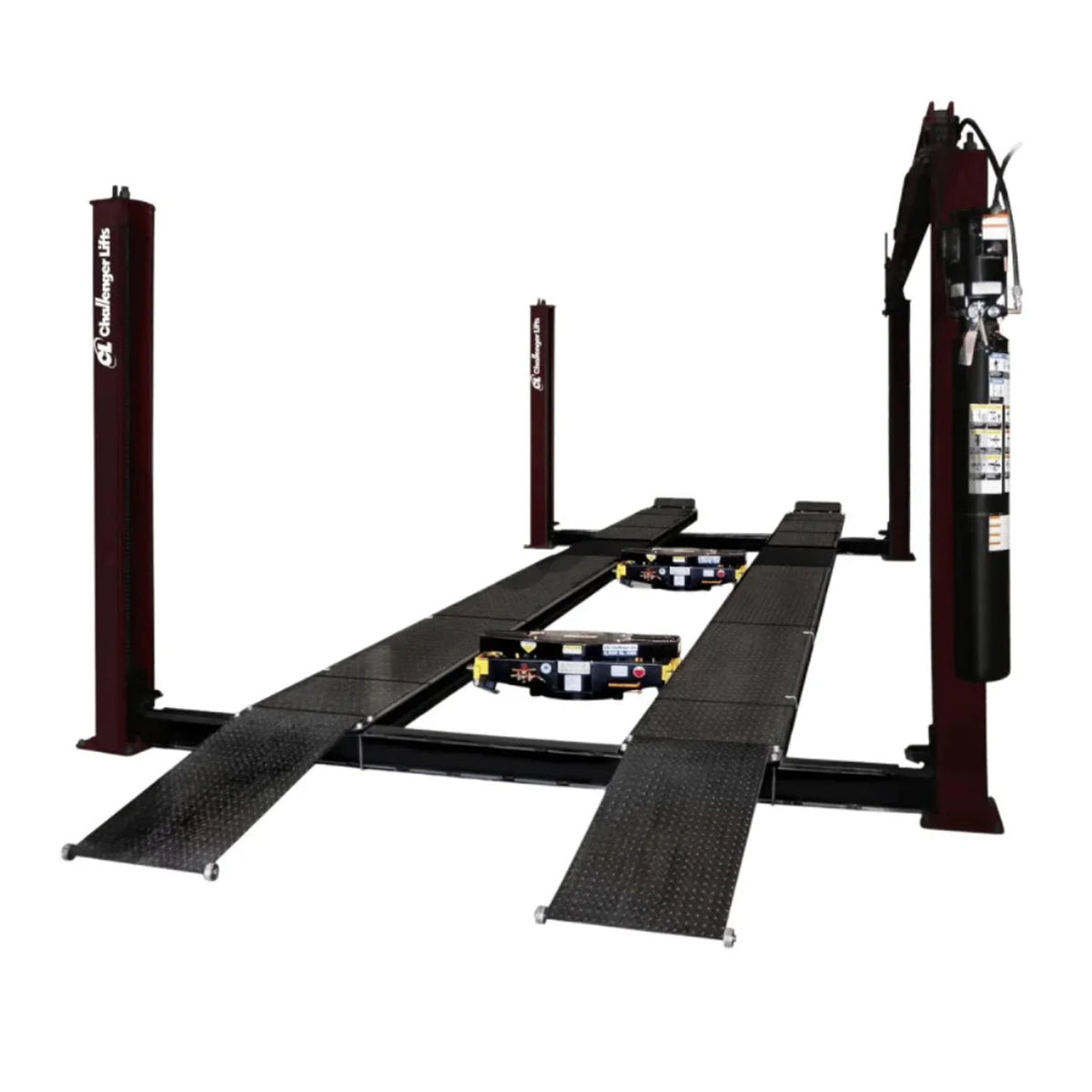

Challenger 44018 / 44018E 18,000 lb Four-Post Lift
Built for
Professional Service Facilities
Support
Installation Available
Coverage
Nationwide
Regular price
$24,210.58
Financing available.
Learn more
Final fitment, freight, lead time, and order details are confirmed by Region Equipment before completion.
Lift overview
Built around your service bay.
Challenger’s 44018 4-post car lift boasts an impressive 18,000 lb. lift capacity, perfect for the toughest challenges in your automotive shop. With a maximum wheelbase range of 194″ to 236″, this lift can easily accommodate a variety of medium-sized transit vehicles. With single-point air-actuated lock release, disengaging column locks is a breeze, particularly with our alignment model. These features make this lift incredibly convenient and easy to use, saving you valuable time and effort. The diamond-plate approach ramps offer positive vehicle traction, ensuring the safety and stability of every vehicle you work on. The adjustable runways can accommodate a wide range of tread widths, making this lift even more versatile and adaptable to your specific needs. For added convenience, the approach ramps feature heavy-duty steel roller wheels, allowing for easy positioning of vehicles onto the lift. And with black columns only, this lift is functional but also sleek and stylish. But the fundamental standout feature of this lift is its built-in runway rail system. This innovative design allows you to add extra convenience options like rolling jacks and oil drain pans (sold separately) with ease, making this lift a genuinely versatile and essential tool for any automotive shop.
Built for your workflow
- Automotive service
- Confirm vehicle lifting points, load distribution and fit.
Plan your bay
- Verify the slab, anchoring, bay dimensions, electrical supply and any required compressed air against the selected model manual.
- Confirm wheelbase, track width, axle loads and runway length; verify which alignment and rolling-jack accessories are included.
Selected model44018
Model 44018
Selected configuration
- Model
- 44018
- Configuration
- Chain Driven 4-Post Lift With 22 In. Wide Runways, Single Point Mechanical Lock Release, 138.125 In. Overall Width, 259 In. Overall Extended Length
Manufacturer specifications · selected model
- Lifting Capacity
- 18,000 lbs.
- Max Wheelbase
- 194”
- Rise Height
- 78.75”
- Overall Length
- 259”
- Overall Width
- 138.125”
- Inside Columns
- 121”
- Between Columns
- 204”
- Height Overall
- 102.5”
- Height of Runways
- 7.25”
- Width of Runways
- 22”
- Width Between Runways
- 36" - 54"
- Min - Max 4 Wheel Align
- -
- Max 2 Wheel Alignment
- -
- Motor / Voltage
- 3HP, 208 - 230v Single Phase*
- Amps
- 30
- Speed of Rise
- 60 s
- Colors Available
- Black
Manufacturer specifications · confirm selected package
- Lifting Capacity
- 18,000 lbs.
- Max Wheelbase
- 194”
- Rise Height
- 78.75”
- Overall Length
- 259”
- Overall Width
- 138.125”
- Inside Columns
- 121”
- Between Columns
- 204”
- Height Overall
- 102.5”
- Height of Runways
- 7.25”
- Width of Runways
- 22”
- Width Between Runways
- 36" - 54"
- Min - Max 4 Wheel Align
- -
- Max 2 Wheel Alignment
- -
- Motor / Voltage
- 3HP, 208 - 230v Single Phase*
- Amps
- 30
- Speed of Rise
- 60 s
- Colors Available
- Black
Manuals & specifications
Installation, operation & maintenance manual Download spec sheet Manufacturer product pageUse the manual for the selected control package and model revision.
Family specifications describe the published equipment. Options may change dimensions, power requirements, certification and included equipment. Confirm the exact selected model and supplied documentation before ordering or installation.
Find the right configuration.
Compare column height, controls and equipment packages. Your selected model stays connected to the quote button above.
Selected model
44018
- Configuration
- Chain Driven 4-Post Lift With 22 In. Wide Runways, Single Point Mechanical Lock Release, 138.125 In. Overall Width, 259 In. Overall Extended Length
Configuration includes
Verify the final package and any additional adapters for your vehicle application.
Design & equipment
Adjustable runway spacing.
Design & equipment
Diamond-plate approach ramps.
Design & equipment
Optional rolling jacks.
Installation & service
Verify the slab, anchoring, bay dimensions, electrical supply and any required compressed air against the selected model manual.
Installation & service
Confirm wheelbase, track width, axle loads and runway length; verify which alignment and rolling-jack accessories are included.
Warranty
Confirm the manufacturer’s written warranty for the supplied model and installation with your quote.
Shipping & lead time
Freight, availability, lead time and unloading requirements are confirmed with your quote.
