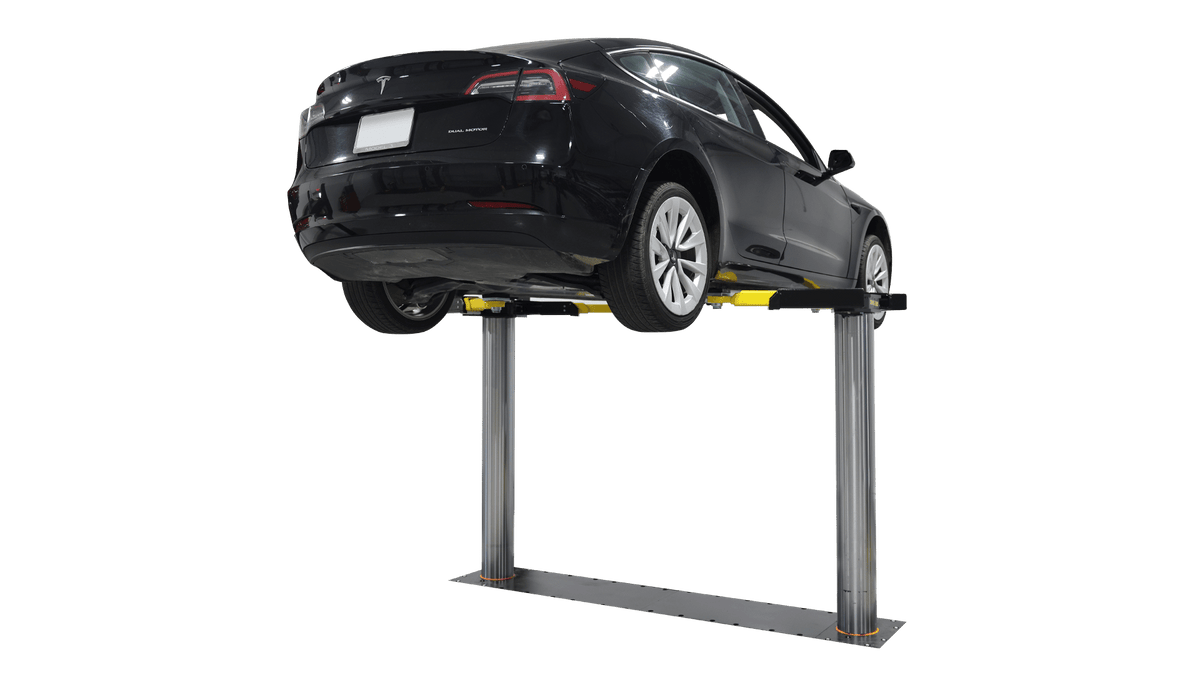

Challenger EW10 10,000 lb wide inground lift

Challenger EW10 Series 10,000 lb Inground Lift

SKU: EW10 Category: Vehicle Lifts
Built for Professional Service Facilities
Support Installation Available
Coverage Nationwide
$20,093.65
Financing available. Learn more
CALL NOW (866) 608-5565

Final fitment, freight, lead time, and order details are confirmed by Region Equipment before completion.

Lift overview

Built around your service bay.

The Challenger EW10 is a 10,000 lb wide inground lift designed for wide-bodied and electric vehicles. Its 88-inch drive-through clearance supports battery-lowering and conventional service operations.

Built for your workflow

  • Automotive service
  • Confirm vehicle lifting points, load distribution and fit.

Plan your bay

  • Confirm the cassette, pit dimensions, drainage, concrete, electrical supply and compressed-air requirements before construction.
  • Have a qualified installer match the lift, arms and controls to the supplied model documentation and vehicle lifting points.
Installation details
Selected modelEW10

Model EW10

Selected configuration

Model
EW10
Configuration
Wide Ew Electric/Hydraulic Inground Lift With 8.5 In. Chrome Pistons, Wide Drive-Through 3-Stage Arms And Double Telescoping Screw Pads. 10,000 Lbs Capacity

Manufacturer specifications · selected model

Lifting Capacity
10,000 lbs.
Capacity per Arm
2,500 lbs.
Arms
3-stage front/3-stage rear
Screw Pad Height
4” - 6.125”
Arm Reach
20" - 42"
Stroke
72”
Rise Height
78”
Drive-Thru Clearance
88”
Width Overall
118"
Speed of Rise
41 s
Air Required
90 - 120 psi
Super Structure Colors
Black, Red or Blue
Motor / Voltage
2HP, 208v-230v, 60Hz, 1Ph
ALI/ETL Certified
Yes

Family specifications & equipment

Capacity
10,000 lb lifting capacity
Design & equipment
3-stage front and rear arms
Dimensions & reach
72 in. stroke; 78 in. rise height
Dimensions & reach
88 in. drive-through clearance
Power & controls
208–230V power; standard and QuickCycle configurations
Design & equipment
ALI/ETL certified

Manuals & specifications

Installation, operation & maintenance manual Download spec sheet Manufacturer product page

Use the manual for the selected control package and model revision.

Family specifications describe the published equipment. Options may change dimensions, power requirements, certification and included equipment. Confirm the exact selected model and supplied documentation before ordering or installation.
