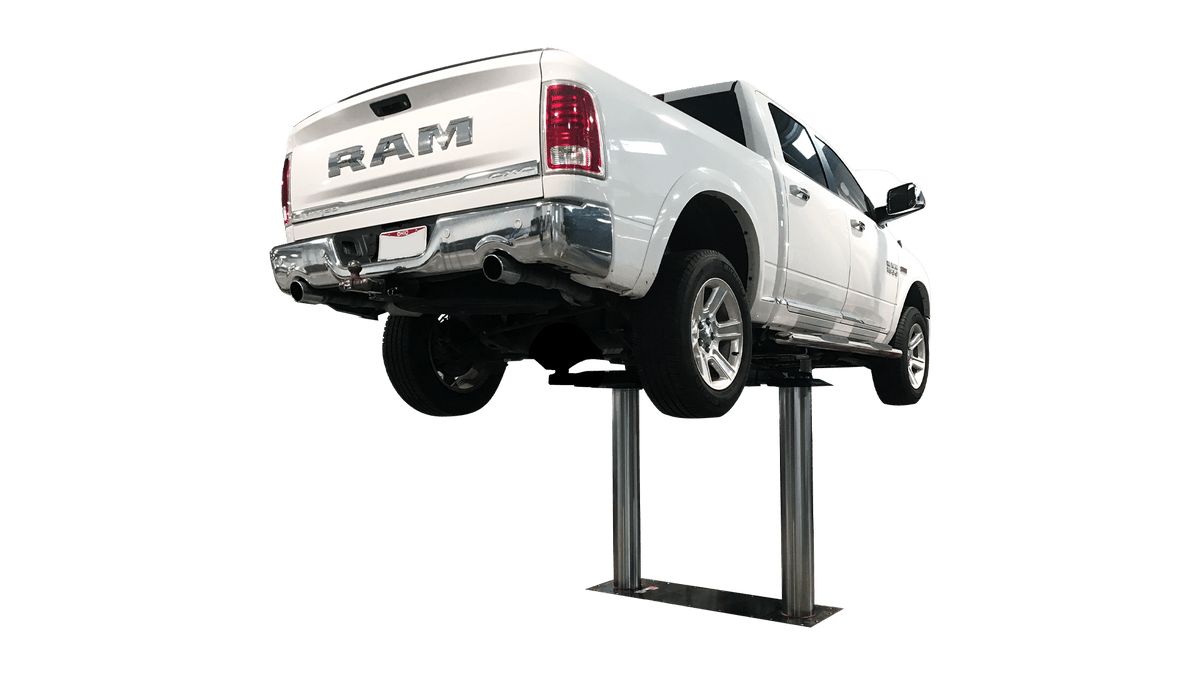

Challenger EV1220 12,000 lb inground lift

Challenger EV1220 Series 12,000 lb Inground Lift

SKU: EV1220 Category: Vehicle Lifts
Built for Professional Service Facilities
Support Installation Available
Coverage Nationwide
$14,270.64
Financing available. Learn more
CALL NOW (866) 608-5565

Final fitment, freight, lead time, and order details are confirmed by Region Equipment before completion.

Lift overview

Built around your service bay.

The Challenger EV1220 is a 12,000 lb cassette-style inground lift for full-size vehicles, medium-duty trucks, and SUVs within rated capacity. Standard and QuickCycle variants are available.

Built for your workflow

  • Automotive service
  • Confirm vehicle lifting points, load distribution and fit.

Plan your bay

  • Confirm the cassette, pit dimensions, drainage, concrete, electrical supply and compressed-air requirements before construction.
  • Have a qualified installer match the lift, arms and controls to the supplied model documentation and vehicle lifting points.
Installation details
Selected modelEV1220

Model EV1220

Selected configuration

Model
EV1220
Configuration
Electric/Hydraulic Inground Lift With Chrome Pistons, 3-Stage Arms

Manufacturer specifications · selected model

Lifting Capacity
12,000 lbs.
Arms
3-stage front/3-stage rear
Stroke
72”
Rise Height
78”
Width Overall
115”
Drive-Thru Clearance
87”
Reach (Arm Minimum)
19.625”
Reach (Arm Maximum)
48”
Screw Pad Height
5” - 6.75”
Capacity
3,000 lbs. per arm
Guide Plunger Diam.
8.5”
Motor / Voltage
2HP, 208v-230v, 60Hz, 1Ph
Speed of Rise
60 s
Air Required
90 - 120 psi
ALI/ETL Certified
Yes
Super Structure Colors
Red, Blue, Black

Family specifications & equipment

Capacity
12,000 lb lifting capacity
Design & equipment
3-stage front and rear arms
Dimensions & reach
68 in. stroke; 74 in. rise height
Dimensions & reach
115 in. overall width
Power & controls
208–230V, single-phase power; 90–120 psi air
Design & equipment
ALI/ETL certified

Manuals & specifications

Installation, operation & maintenance manual Download spec sheet Manufacturer product page

Use the manual for the selected control package and model revision.

Family specifications describe the published equipment. Options may change dimensions, power requirements, certification and included equipment. Confirm the exact selected model and supplied documentation before ordering or installation.
